[Before Using the Products]
Before Using
the Products

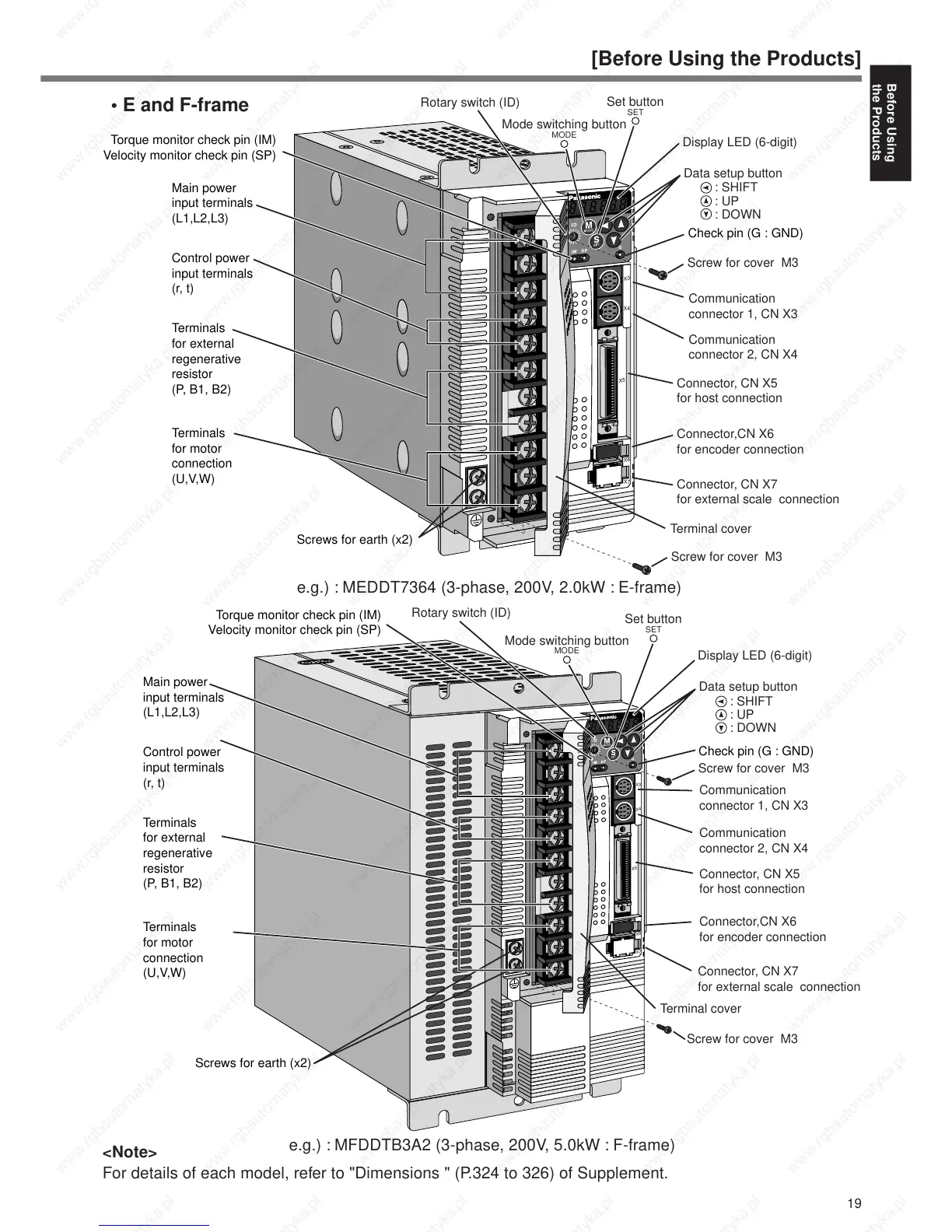

• E and F-frame
e.g.) : MEDDT7364 (3-phase, 200V, 2.0kW : E-frame)
X3
X4
X5
X7
X6
Display LED (6-digit)
Mode switching button
MODE
Set button
SET
Check pin (G : GND)
Data setup button
Connector, CN X5
for host connection
Connector,CN X6
for encoder connection
Connector, CN X7
for external scale connection
Terminal cover
Screw for cover M3
Screw for cover M3
Communication
connector 2, CN X4
Communication
connector 1, CN X3
Screws for earth (x2)
Rotary switch (ID)
Torque monitor check pin (IM)
Velocity monitor check pin (SP)
Main power 
input terminals 
(L1,L2,L3)
Control power 
input terminals 
(r, t)
Terminals 
for external 
regenerative 
resistor 
(P, B1, B2)
Terminals
for motor
connection
(U,V,W)
: SHIFT
: UP
: DOWN
X3
X4
X5
X7
X6
Mode switching button
MODE
Set button
SET
Screw for cover M3
Screw for cover M3
Display LED (6-digit)
Check pin (G : GND)
Data setup button
Connector, CN X5
for host connection
Connector,CN X6
for encoder connection
Connector, CN X7
for external scale connection
Terminal cover
Communication
connector 2, CN X4
Communication
connector 1, CN X3
Screws for earth (x2)
Rotary switch (ID)
Torque monitor check pin (IM)
Velocity monitor check pin (SP)
Main power 
input terminals 
(L1,L2,L3)
Control power 
input terminals 
(r, t)
Terminals 
for external 
regenerative 
resistor 
(P, B1, B2)
Terminals
for motor
connection
(U,V,W)
: SHIFT
: UP
: DOWN
<Note>
For details of each model, refer to "Dimensions " (P.324 to 326) of Supplement.
e.g.) : MFDDTB3A2 (3-phase, 200V, 5.0kW : F-frame)
