Panasonic Minas A4 Series - Permissible Load at Output Shaft (Motor with Gear Reducer)

352

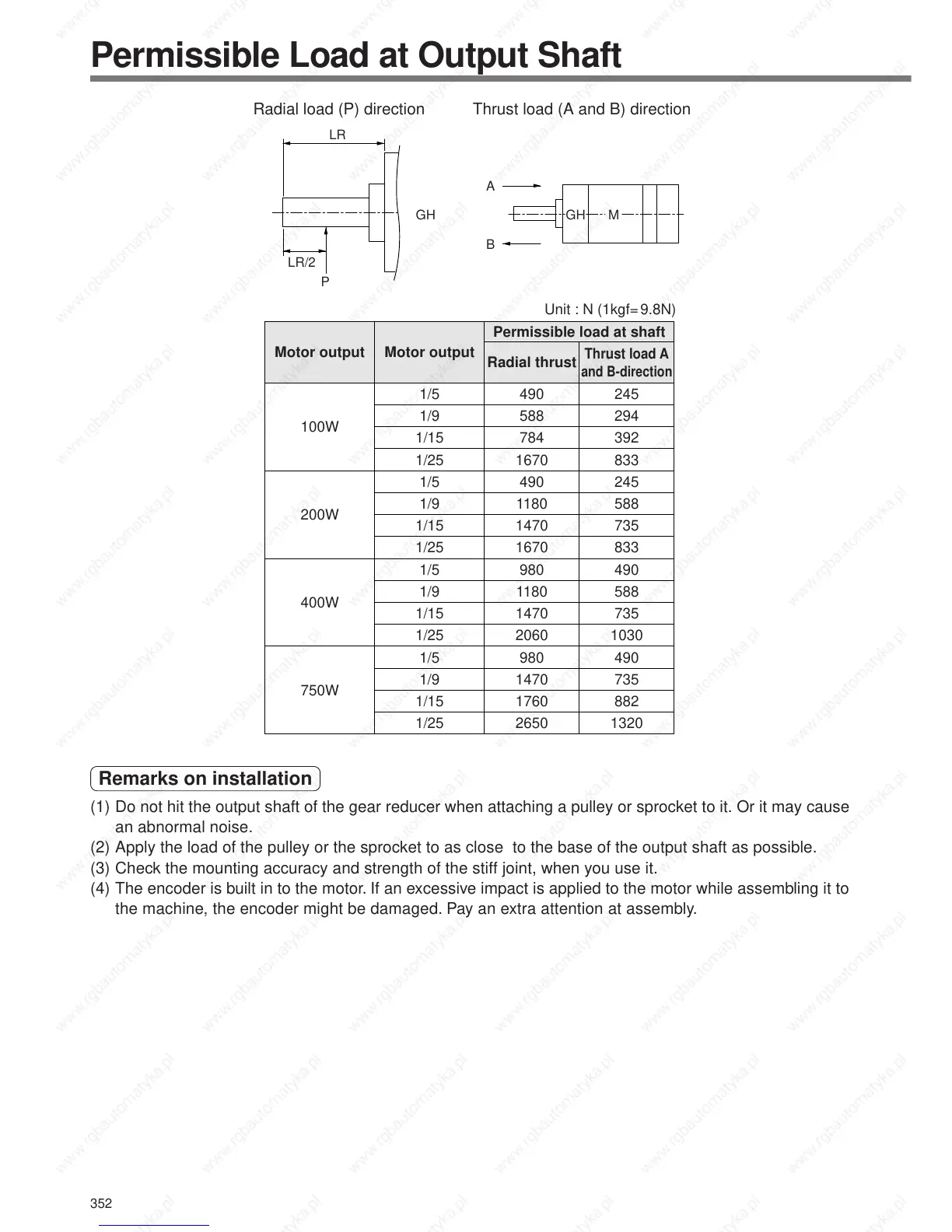

Permissible Load at Output Shaft
Remarks on installation
(1) Do not hit the output shaft of the gear reducer when attaching a pulley or sprocket to it. Or it may cause
an abnormal noise.
(2) Apply the load of the pulley or the sprocket to as close to the base of the output shaft as possible.
(3) Check the mounting accuracy and strength of the stiff joint, when you use it.
(4) The encoder is built in to the motor. If an excessive impact is applied to the motor while assembling it to
the machine, the encoder might be damaged. Pay an extra attention at assembly.
1/5
1/9
1/15
1/25
1/5
1/9
1/15
1/25
1/5
1/9
1/15
1/25
1/5
1/9
1/15
1/25

Motor output

100W



200W



400W



750W
Motor output
Radial thrust
Permissible load at shaft
Thrust load A
and B-direction
490
588
784
1670
490
1180
1470
1670
980
1180
1470
2060
980
1470
1760
2650
245
294
392
833
245
588
735
833
490
588
735
1030
490
735
882
1320
Unit : N (1kgf=9.8N)
LR
LR/2
P
A
MGH GH
B
Radial load (P) direction Thrust load (A and B) direction
