Panasonic Minas A4 Series - Auxiliary Function Mode

73
[Preparation]
Preparation

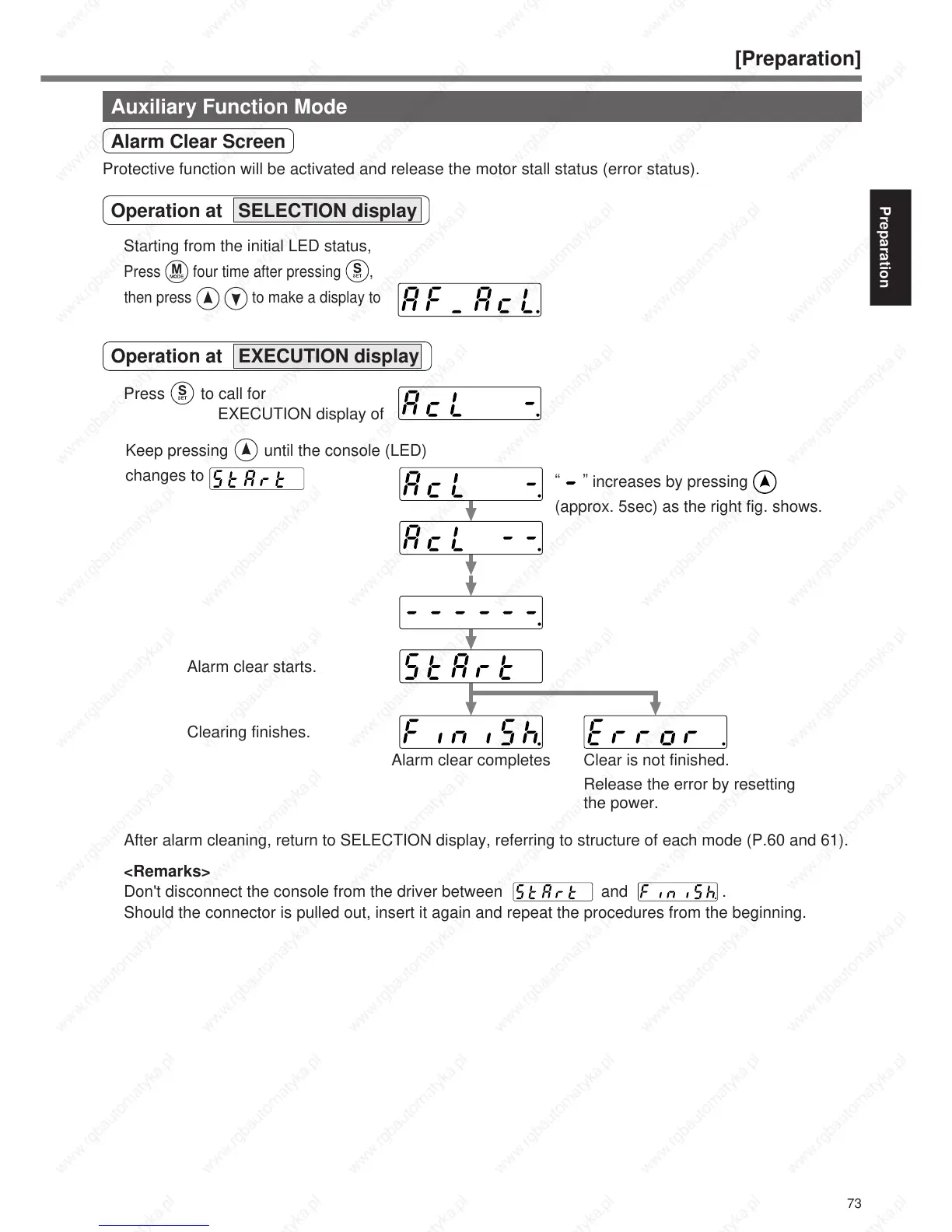

Auxiliary Function Mode
Alarm Clear Screen
Protective function will be activated and release the motor stall status (error status).
Alarm clear starts.
Clearing finishes.
Clear is not finished.
Release the error by resetting 
the power.
Alarm clear completes
After alarm cleaning, return to SELECTION display, referring to structure of each mode (P.60 and 61).

<Remarks>
Don't disconnect the console from the driver between and .
Should the connector is pulled out, insert it again and repeat the procedures from the beginning.
Starting from the initial LED status,
Press four time after pressing ,
then press to make a display to
Press to call for 
EXECUTION display of
Keep pressing until the console (LED) 
changes to
“ ”
increases by pressing 
(approx. 5sec) as the right fig. shows.
Operation at SELECTION display
Operation at EXECUTION display
