72

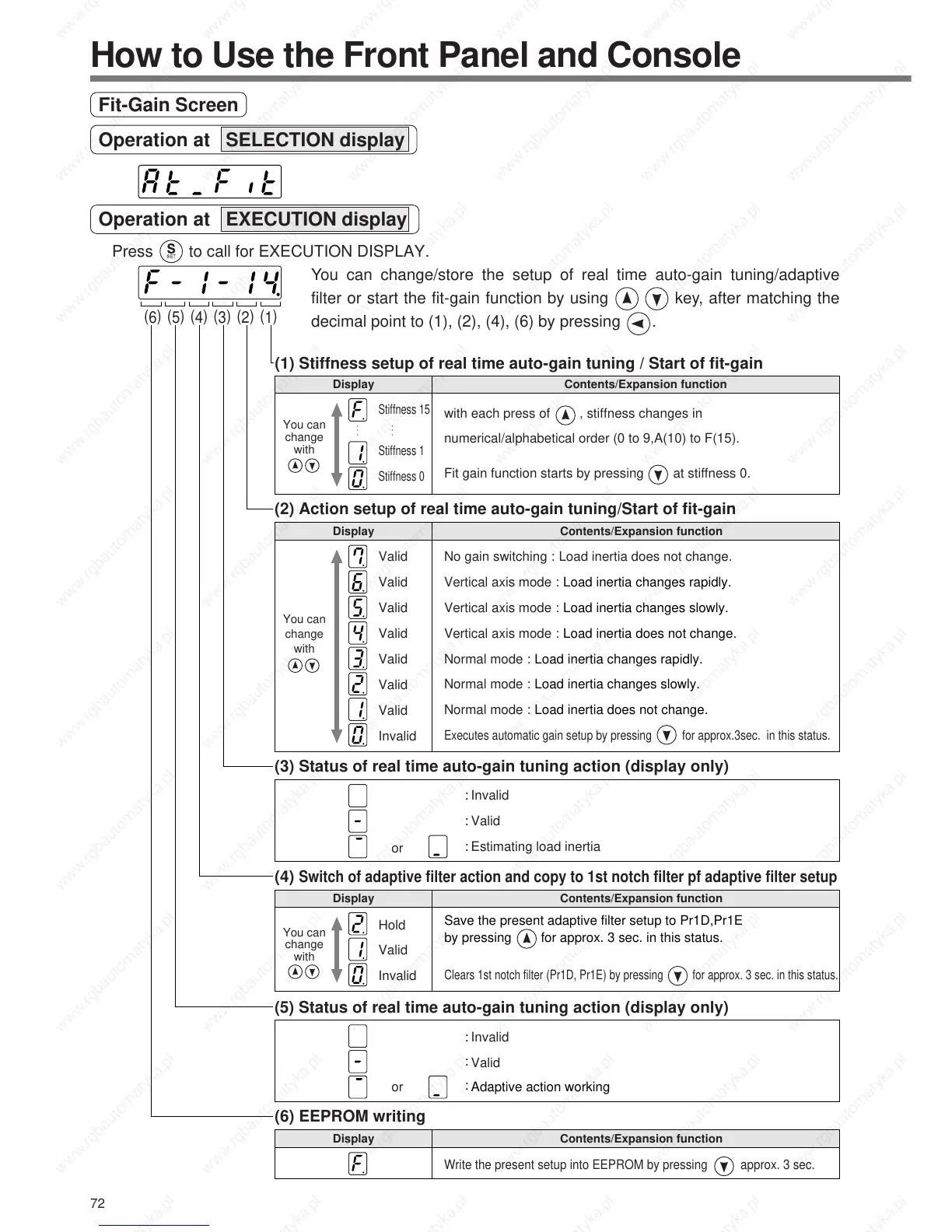

How to Use the Front Panel and Console
Fit-Gain Screen
Clears 1st notch filter (Pr1D, Pr1E) by pressing for approx. 3 sec. in this status.
No gain switching : Load inertia does not change.
Vertical axis mode : Load inertia changes rapidly.
Vertical axis mode : Load inertia changes slowly.
Vertical axis mode : Load inertia does not change.
Normal mode : Load inertia changes rapidly.
Normal mode : Load inertia changes slowly.
Normal mode : Load inertia does not change.
Executes automatic gain setup by pressing for approx.3sec. in this status.
with each press of , stiffness changes in
numerical/alphabetical order (0 to 9,A(10) to F(15).
Fit gain function starts by pressing at stiffness 0.
You can change/store the setup of real time auto-gain tuning/adaptive
filter or start the fit-gain function by using key, after matching the
decimal point to (1), (2), (4), (6) by pressing .
(
6
) (
5
) (
4
) (
3
) (
2
) (
1
)
(1) Stiffness setup of real time auto-gain tuning / Start of fit-gain
Stiffness 15
Stiffness 1
Stiffness 0
Display Contents/Expansion function
(2) Action setup of real time auto-gain tuning/Start of fit-gain
Valid
Valid
Valid
Valid
Valid
Valid
Valid
Invalid
Display Contents/Expansion function
(3) Status of real time auto-gain tuning action (display only)
: Invalid
: Valid
: Estimating load inertia
(4)
Switch of adaptive filter action and copy to 1st notch filter pf adaptive filter setup
Hold
Valid
Invalid
Display Contents/Expansion function
(5) Status of real time auto-gain tuning action (display only)
: Invalid
:
Valid
:
Adaptive action working
Write the present setup into EEPROM by pressing approx. 3 sec.
(6) EEPROM writing
Display Contents/Expansion function
Press to call for EXECUTION DISPLAY.
You can
change
with
You can
change
with
You can
change
with
or
or
•••
•••
Save the present adaptive filter setup to Pr1D,Pr1E
by pressing for approx. 3 sec. in this status.
Operation at SELECTION display
Operation at EXECUTION display
To Next Page
