How to Use the Front Panel and Console

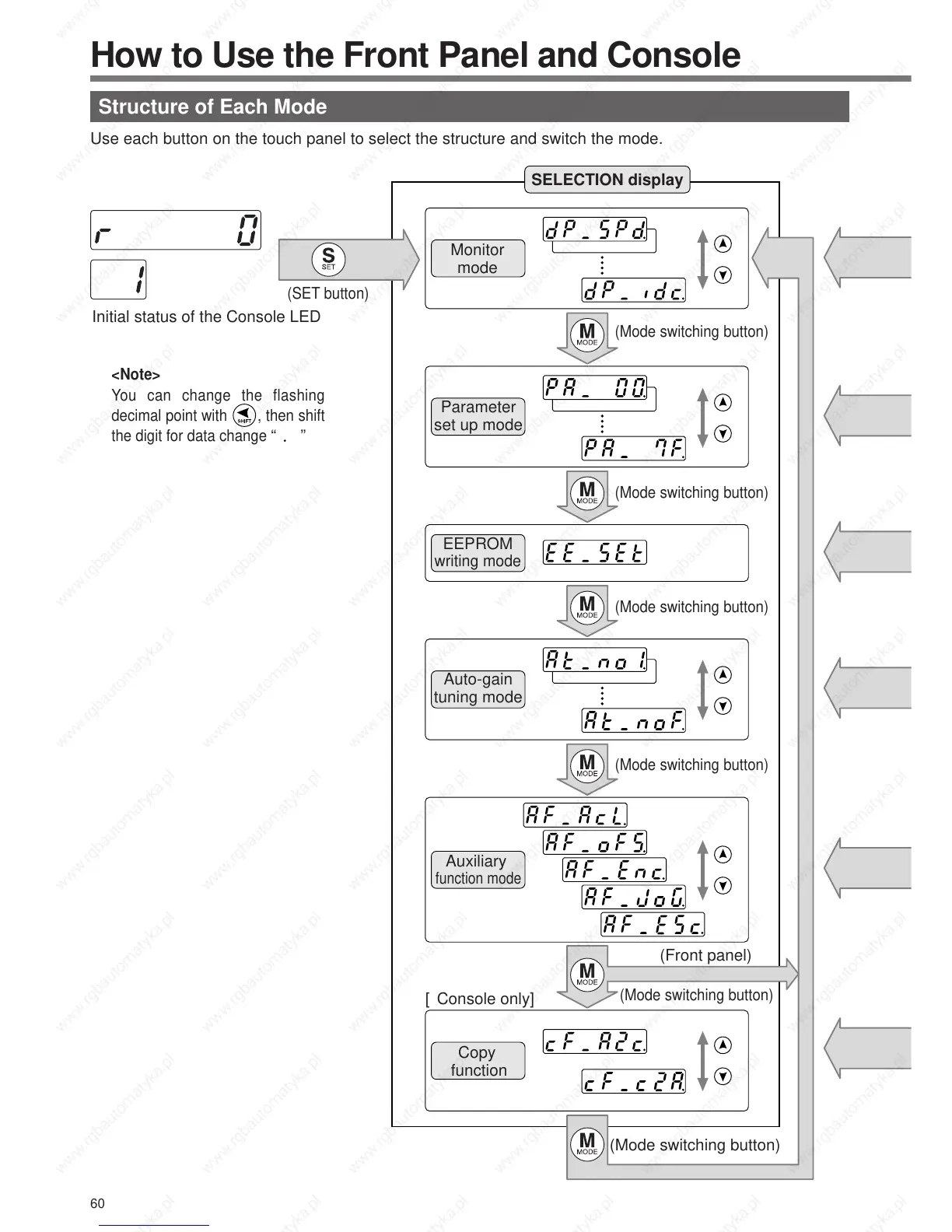

Structure of Each Mode
Use each button on the touch panel to select the structure and switch the mode.
Initial status of the Console LED
SELECTION display
Monitor
mode
Parameter
set up mode
EEPROM
writing mode
(Mode switching button)
(Mode switching button)
(Mode switching button)
(Mode switching button)
(Mode switching button)
[Console only]
(Front panel)
(Mode switching button)
(SET button)
<Note>
You can change the flashing
decimal point with , then shift
the digit for data change
“ ”
Auto-gain
tuning mode
Auxiliary 
function mode
Copy 
function


