Panasonic Minas A4 Series - Motor

20
<Note>
For details of each model, refer to "Dimensions " (P.327 to P.341) of Supplement.

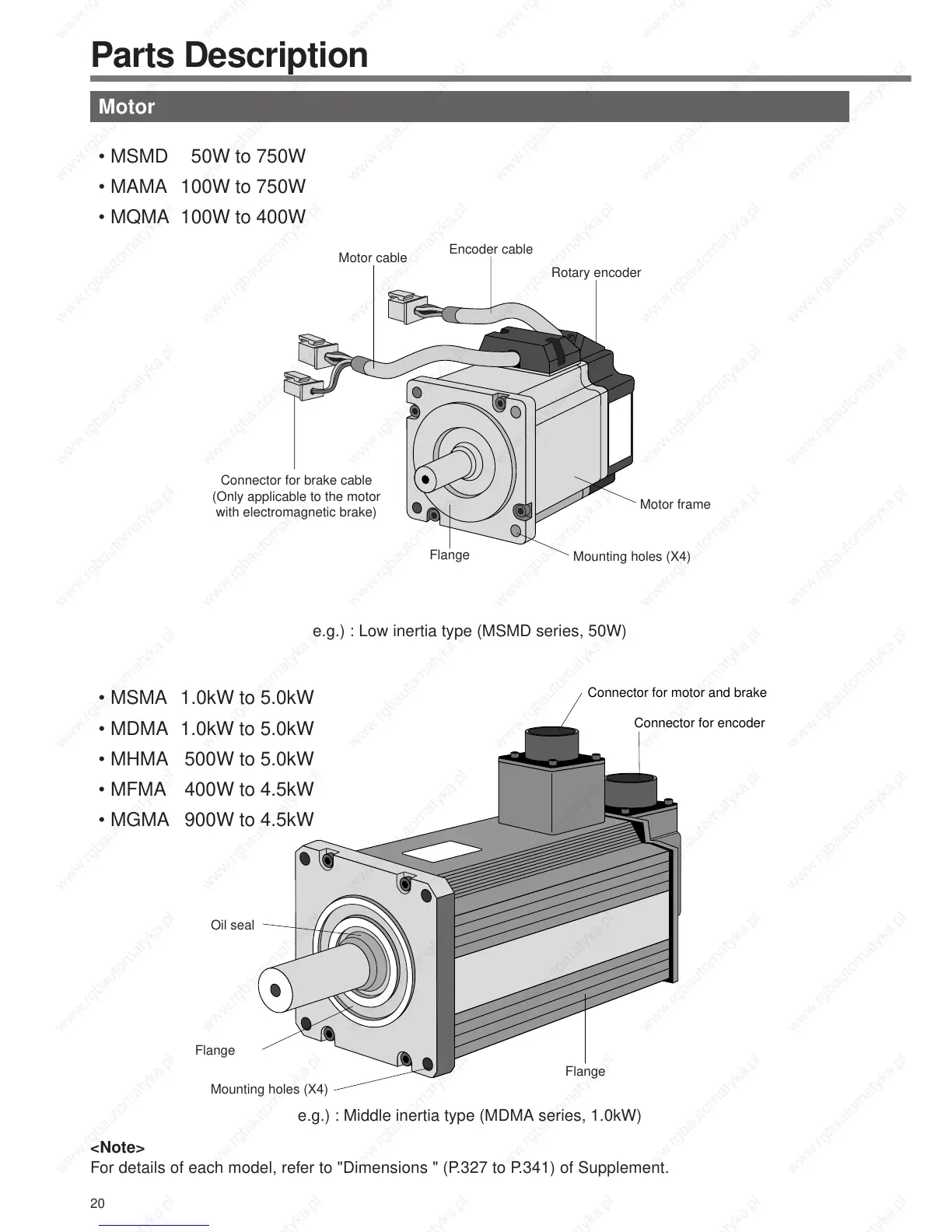

Motor
e.g.) : Low inertia type (MSMD series, 50W)
Flange
Oil seal
Mounting holes (X4)
Flange
Connector for motor and brake
Connector for encoder
e.g.) : Middle inertia type (MDMA series, 1.0kW)
• MSMD 50W to 750W
• MAMA 100W to 750W
• MQMA 100W to 400W
• MSMA 1.0kW to 5.0kW
• MDMA 1.0kW to 5.0kW
• MHMA 500W to 5.0kW
• MFMA 400W to 4.5kW
• MGMA 900W to 4.5kW
Motor frame
Motor cable
Encoder cable
Rotary encoder
Flange
Mounting holes (X4)
Connector for brake cable
(Only applicable to the motor 
with electromagnetic brake)
Parts Description
