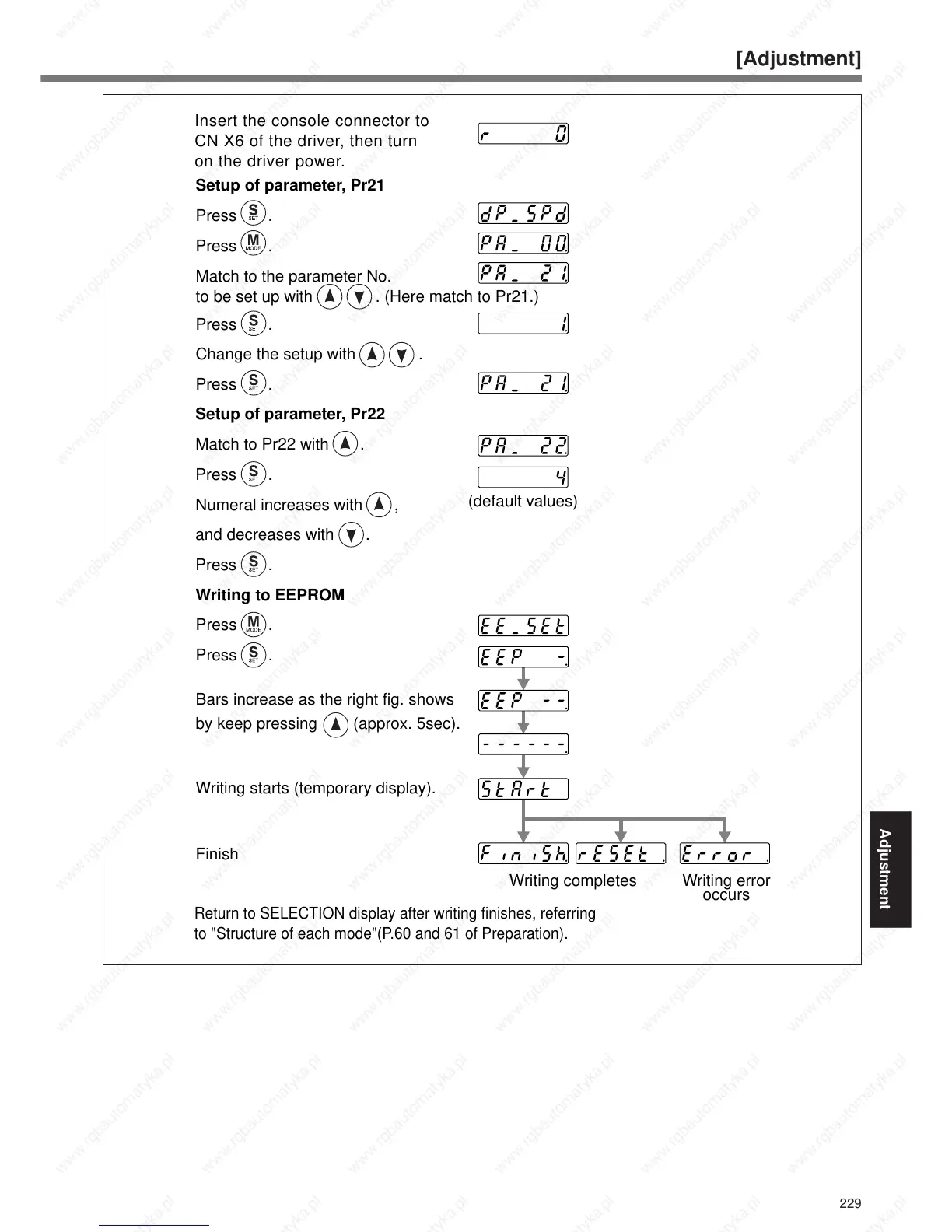

Setup of parameter, Pr21
Press .
Press .
Match to the parameter No.
to be set up with . (Here match to Pr21.)
Press .
Change the setup with .
Press .
Setup of parameter, Pr22
Match to Pr22 with .
Press .
Numeral increases with ,
and decreases with .
Press .
(default values)
Writing to EEPROM
Press .
Press .
Bars increase as the right fig. shows
by keep pressing (approx. 5sec).
Writing starts (temporary display).
Finish
Writing completes Writing error
occurs
Return to SELECTION display after writing finishes, referring
to "Structure of each mode"(P.60 and 61 of Preparation).
Insert the console connector to
CN X6 of the driver, then turn
on the driver power.
