[Supplement]
Supplement

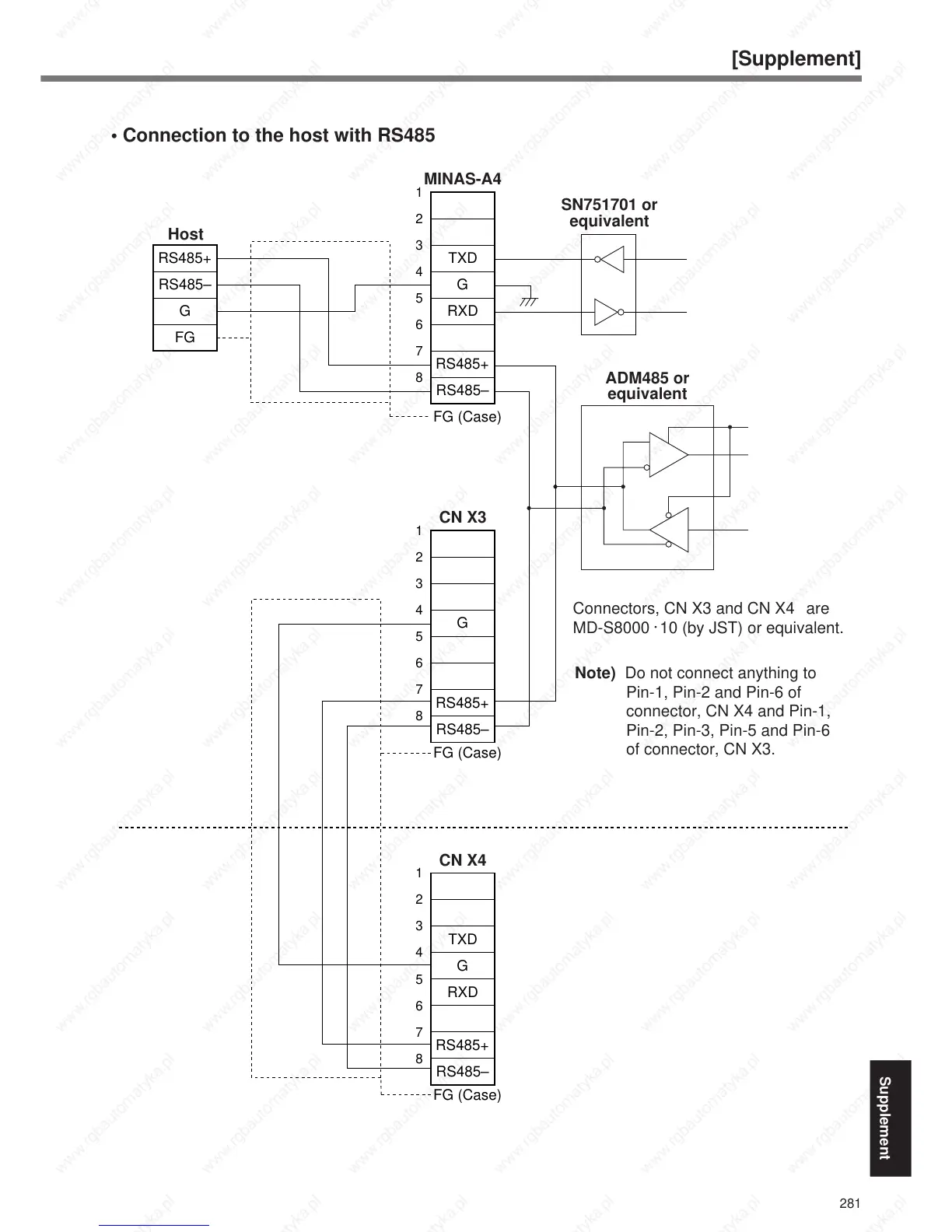

• Connection to the host with RS485
G
FG
RXD
G
TXD
MINAS-A4
Host
CN X4
CN X3
RS485+
RS485–
RS485+
RS485–
RS485+
RS485–
RXD
G
G
FG (Case)
TXD
RS485+
RS485–
ADM485 or
equivalent
SN751701 or
equivalent
Connectors, CN X3 and CN X4are 
MD-S8000
•
10 (by JST) or equivalent.
1
2
3
4
5
6
7
8
1
2
3
4
5
6
7
8
1
2
3
4
5
6
7
8
FG (Case)
FG (Case)
Note) Do not connect anything to 
Pin-1, Pin-2 and Pin-6 of
connector, CN X4 and Pin-1,
Pin-2, Pin-3, Pin-5 and Pin-6
of connector, CN X3.
