[Preparation]
Preparation
X3
X4
X5
X6
X7

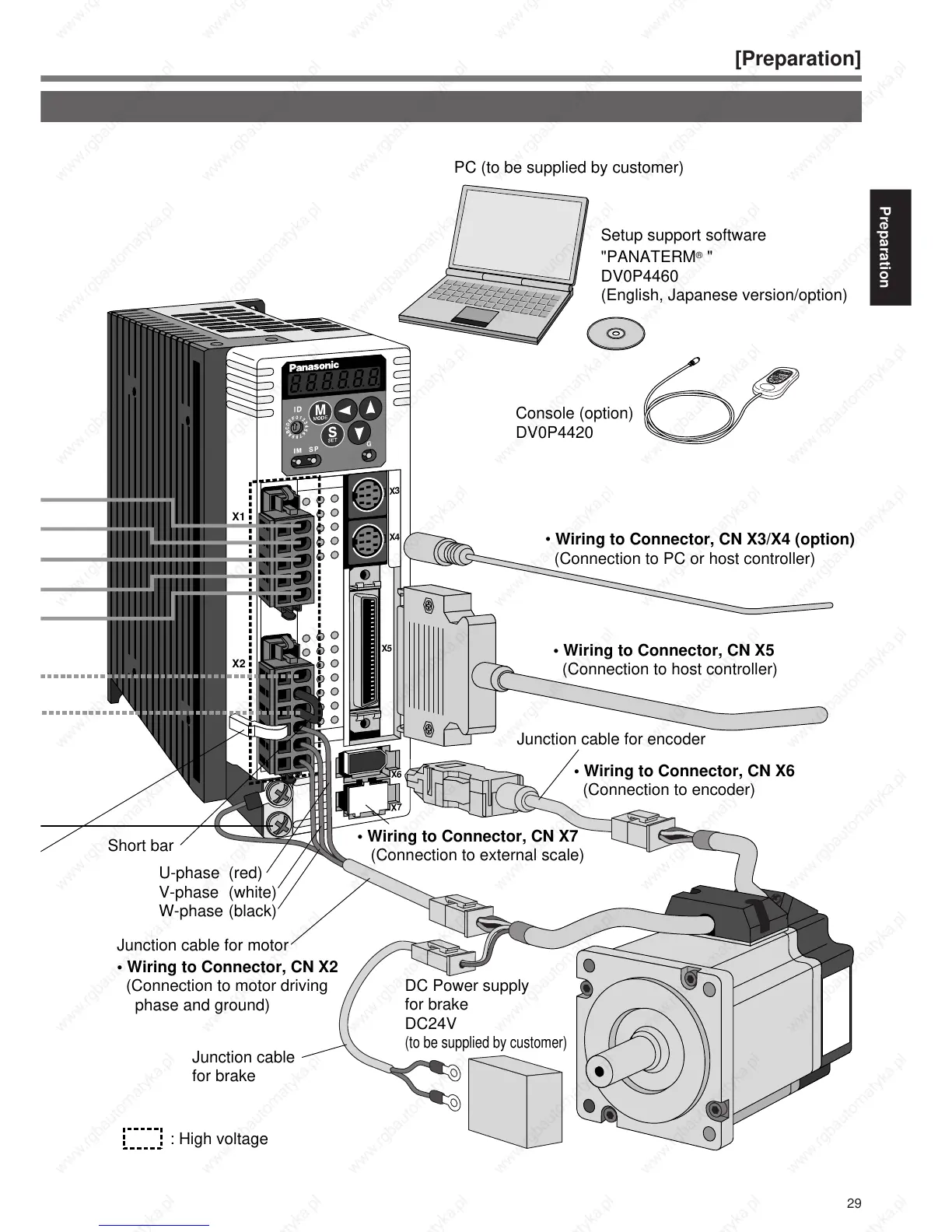

PC (to be supplied by customer)
Setup support software
"PANATERM
®
"
DV0P4460 
(English, Japanese version/option)
Console (option)
DV0P4420
• Wiring to Connector, CN X3/X4 (option)
(Connection to PC or host controller)
• Wiring to Connector, CN X5 
(Connection to host controller)
• Wiring to Connector, CN X6 
(Connection to encoder)
• Wiring to Connector, CN X7 
(Connection to external scale)
Junction cable for encoder
Short bar
Junction cable for motor
Junction cable 
for brake
DC Power supply 
for brake
DC24V
(to be supplied by customer)
• Wiring to Connector, CN X2
(Connection to motor driving 
phase and ground)
: High voltage
U-phase(red)
V-phase(white)
W-phase(black)
X1
X2
