310

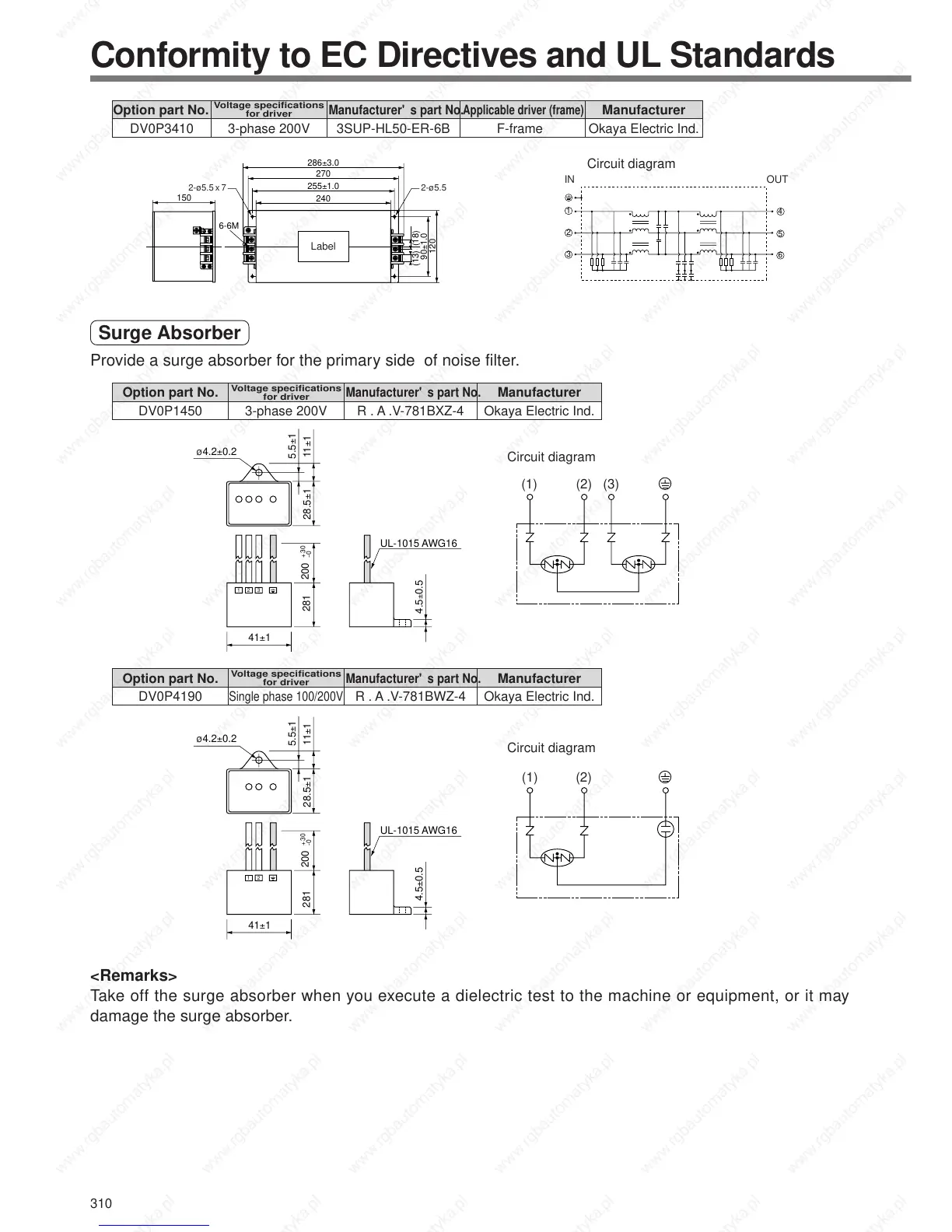

Surge Absorber
Provide a surge absorber for the primary side of noise filter.
<Remarks>
Take off the surge absorber when you execute a dielectric test to the machine or equipment, or it may
damage the surge absorber.
Conformity to EC Directives and UL Standards
Circuit diagram
Circuit diagram
1
ø4.2±0.2
41±1
UL-1015 AWG16
281
5.5±1
11±128.5±1
4.5
±0.5
200
+30
-
0
Option part No. 
DV0P1450

3-phase 200V
Manufacturer's part No. 
R . A .V-781BXZ-4
Manufacturer
Okaya Electric Ind.
Option part No. 
DV0P4190

Single phase 100/200V
Manufacturer's part No. 
R . A .V-781BWZ-4
Manufacturer
Okaya Electric Ind.
2 3
ø4.2±0.2
41±1
UL-1015 AWG16
281
5.5±1
11±128.5±1
4.5±0.5
200
+30
-0
1 2
(1)

(2)

(3)

(1)

(2)

Voltage specifications 
for driver
Voltage specifications 
for driver
Option part No. 
DV0P3410

3-phase 200V
Applicable driver (frame)
F-frame
Manufacturer's part No.
3SUP-HL50-ER-6B
Manufacturer
Okaya Electric Ind.
Circuit diagram
IN OUT
286±3.0
150
2-ø5.5 x 7
2-ø5.5
6-6M
270
255±1.0
240
120
90±1.0
(18)(13)
Label
1
2
3
4
5
6
Voltage specifications 
for driver
