31

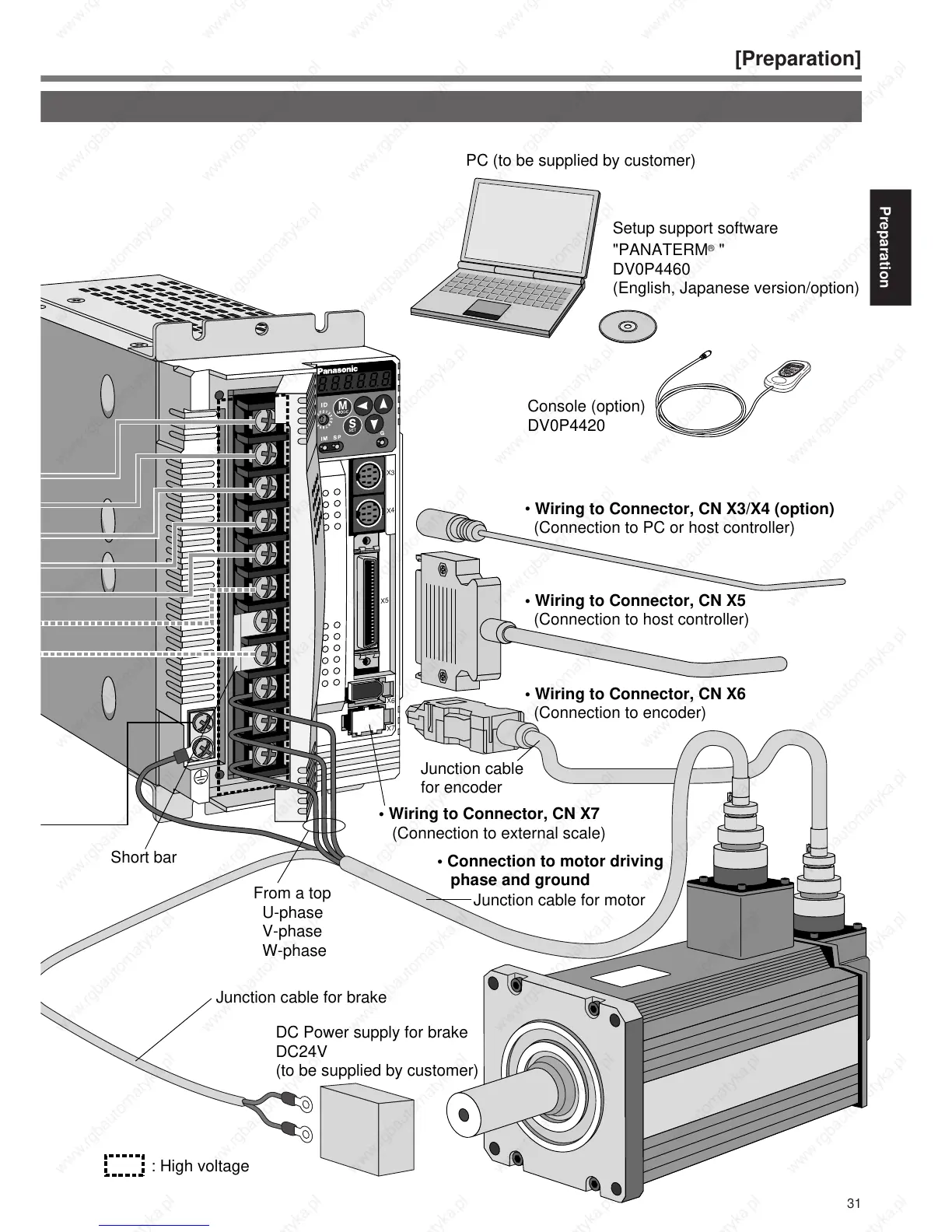

[Preparation]
Preparation
X3
X4
X5
X7
X6
• Wiring to Connector, CN X3/X4 (option)
(Connection to PC or host controller)
• Wiring to Connector, CN X5 
(Connection to host controller)
• Wiring to Connector, CN X6 
(Connection to encoder)
Junction cable 
for encoder
Junction cable for motor
Junction cable for brake
Short bar
DC Power supply for brake
DC24V
(to be supplied by customer)
• Connection to motor driving 
phase and ground
: High voltage
From a top
U-phase
V-phase
W-phase 
• Wiring to Connector, CN X7 
(Connection to external scale)
PC (to be supplied by customer)
Setup support software
"PANATERM
®
"
DV0P4460 
(English, Japanese version/option)
Console (option)
DV0P4420
