[Supplement]
Supplement

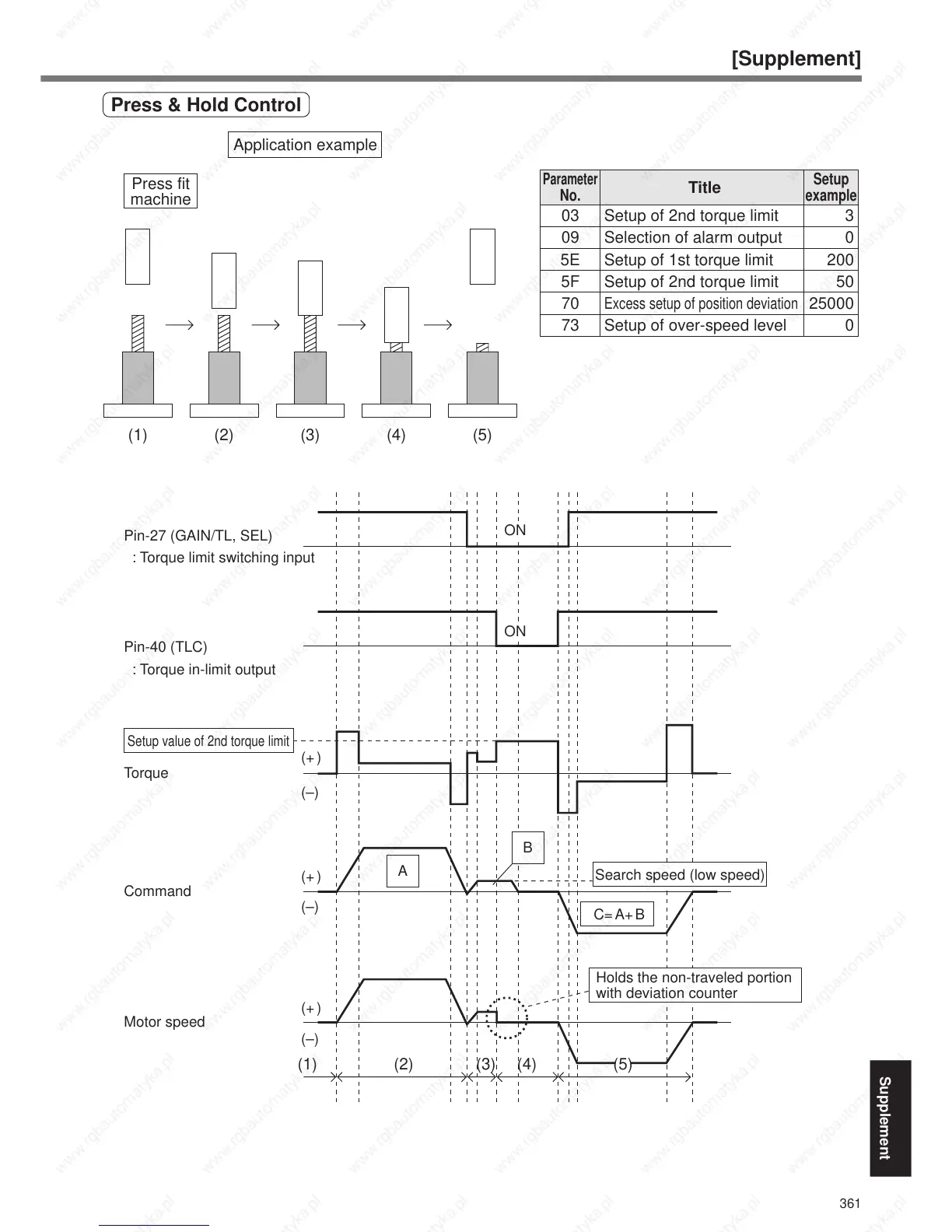

Press & Hold Control
(1) (2) (3) (4) (5)
Holds the non-traveled portion 
with deviation counter
C=A+B
Search speed (low speed)
B
A
Setup value of 2nd torque limit
Pin-27 (GAIN/TL, SEL)
: Torque limit switching input
Pin-40 (TLC)
: Torque in-limit output
Torque
Command
Motor speed
(1) (2) (3) (4) (5)
Press fit
machine
Application example
ON
ON
(+)
(+)
(+)
(–)
(–)
(–)

03
09
5E
5F
70
73


Setup of 2nd torque limit
Selection of alarm output
Setup of 1st torque limit
Setup of 2nd torque limit
Excess setup of position deviation
Setup of over-speed level

3

0

200

50

25000

0
Parameter
No.
Title
Setup
example
