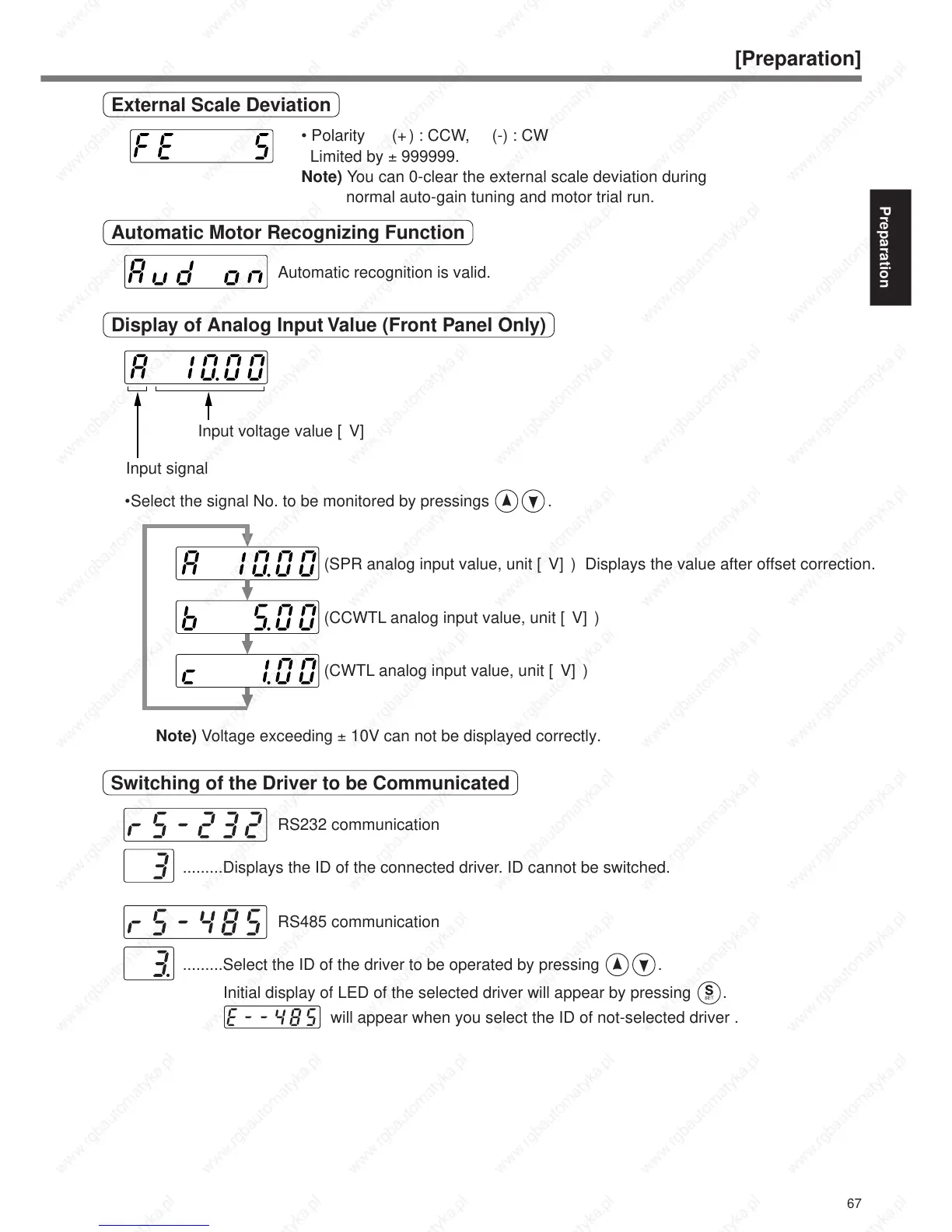

External Scale Deviation
• Polarity (+) : CCW, (-) : CW
Limited by ± 999999.
Note) You can 0-clear the external scale deviation during
normal auto-gain tuning and motor trial run.
Automatic Motor Recognizing Function
Automatic recognition is valid.
Display of Analog Input Value (Front Panel Only)
(SPR analog input value, unit [V]) Displays the value after offset correction.
(CCWTL analog input value, unit [V])
(CWTL analog input value, unit [V])
Input signal
Note) Voltage exceeding ± 10V can not be displayed correctly.
Input voltage value [V]
•Select the signal No. to be monitored by pressings .
Switching of the Driver to be Communicated
RS232 communication
.........Displays the ID of the connected driver. ID cannot be switched.
RS485 communication
.........Select the ID of the driver to be operated by pressing .
Initial display of LED of the selected driver will appear by pressing .
will appear when you select the ID of not-selected driver .
