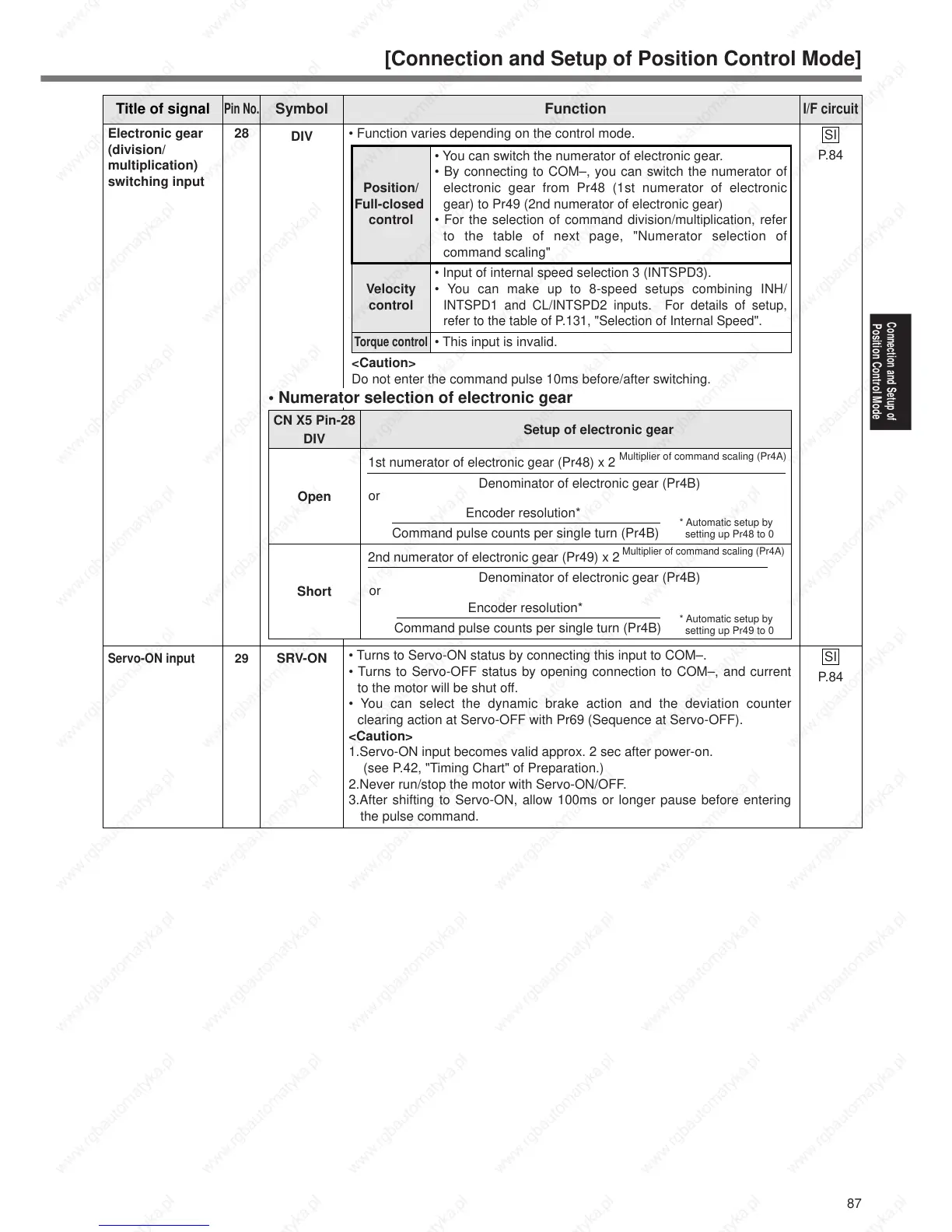

• You can switch the numerator of electronic gear.
• By connecting to COM–, you can switch the numerator of
electronic gear from Pr48 (1st numerator of electronic
gear) to Pr49 (2nd numerator of electronic gear)
• For the selection of command division/multiplication, refer
to the table of next page, "Numerator selection of
command scaling"
• Input of internal speed selection 3 (INTSPD3).
•
You can make up to 8-speed setups combining INH/
INTSPD1 and CL/INTSPD2 inputs. For details of setup,
refer to the table of P.131, "Selection of Internal Speed".
• This input is invalid.
Position/
Full-closed
control
Velocity
control
Torque control
Title of signal
Pin No.
Symbol Function
I/F circuit
Servo-ON input
29
SI
P.84
SRV-ON
• Turns to Servo-ON status by connecting this input to COM–.
• Turns to Servo-OFF status by opening connection to COM–, and current
to the motor will be shut off.
• You can select the dynamic brake action and the deviation counter
clearing action at Servo-OFF with Pr69 (Sequence at Servo-OFF).
<Caution>
1.Servo-ON input becomes valid approx. 2 sec after power-on.
(see P.42, "Timing Chart" of Preparation.)
2.Never run/stop the motor with Servo-ON/OFF.
3.After shifting to Servo-ON, allow 100ms or longer pause before entering
the pulse command.
Electronic gear
(division/
multiplication)
switching input
28
SI
P.84
DIV
• Function varies depending on the control mode.
<Caution>
Do not enter the command pulse 10ms before/after switching.
• Numerator selection of electronic gear
Setup of electronic gear
CN X5 Pin-28
DIV
Open
Short
1st numerator of electronic gear (Pr48) x 2
or
* Automatic setup by
setting up Pr48 to 0
Denominator of electronic gear (Pr4B)
Multiplier of command scaling (Pr4A)
Encoder resolution*
Command pulse counts per single turn (Pr4B)
2nd numerator of electronic gear (Pr49) x 2
or
* Automatic setup by
setting up Pr49 to 0
Denominator of electronic gear (Pr4B)
Multiplier of command scaling (Pr4A)
Encoder resolution*
Command pulse counts per single turn (Pr4B)
