− WHITE: 10% - 100%
−
− −
− DARK GRAY: 1 - 10
−
− −
− COLOR: 1 - 2 of Red, Green, Blue, Cyan, Magenta and Yellow
4.3.6. Additional Functions for PROJECTOR SETUP
·
MAX AVAILABLE LAMP
Sets the maximum number of lamps that can be used. Usually, set it to "4".
·

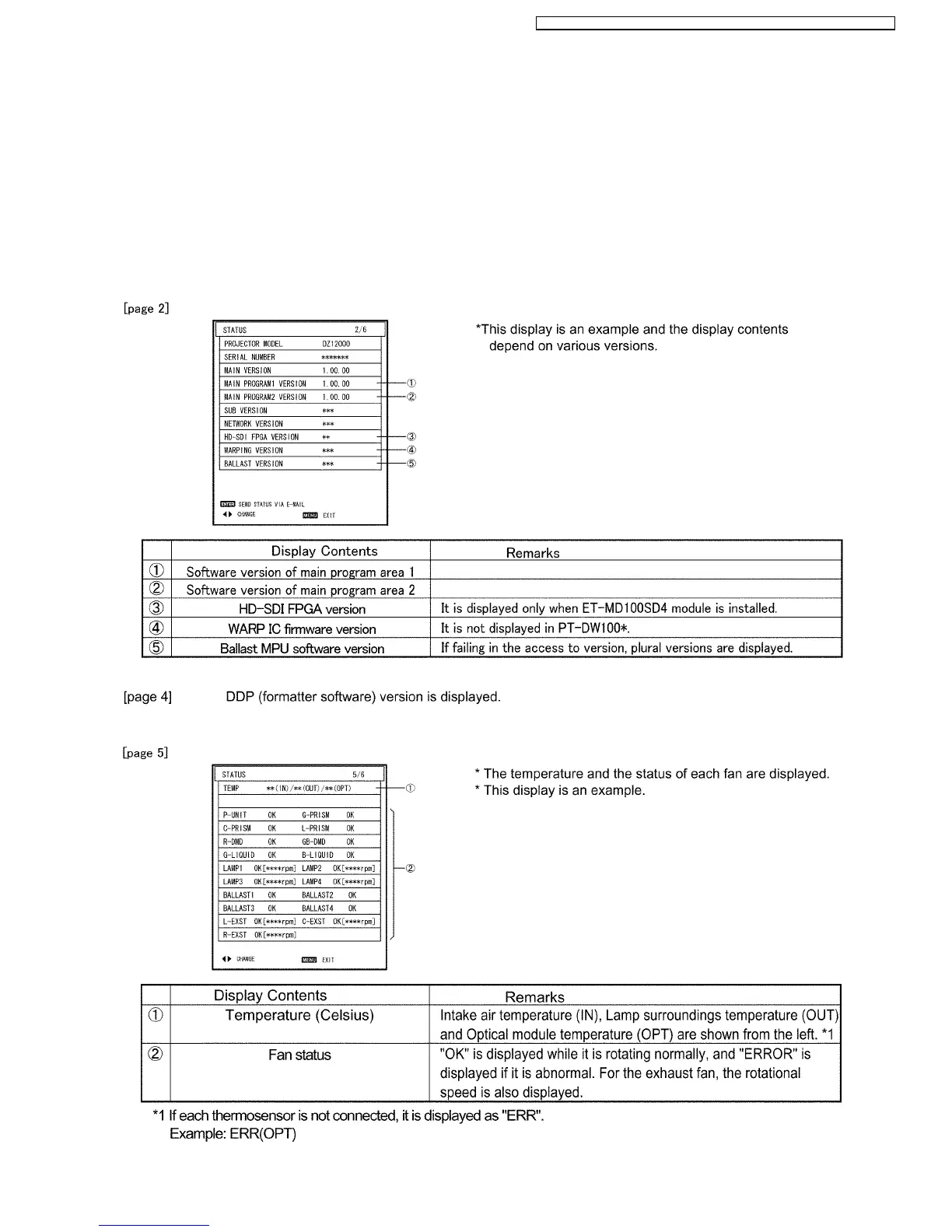

STATUS
The number of pages of screens displayed when selecting becomes "6" in Serviceman Mode from "3" in User Mode. When ET-
MD100SD4 module is installed, it becomes "7" in Serviceman Mode from "3" in User Mode.
Page 1 and page 3 are the same as User Mode, and the following items are displayed on page 2 in Serviceman Mode.
11
PT-DZ12000U / PT-DZ12000E / PT-D12000U / PT-D12000E / PT-DW100U / PT-DW100E
