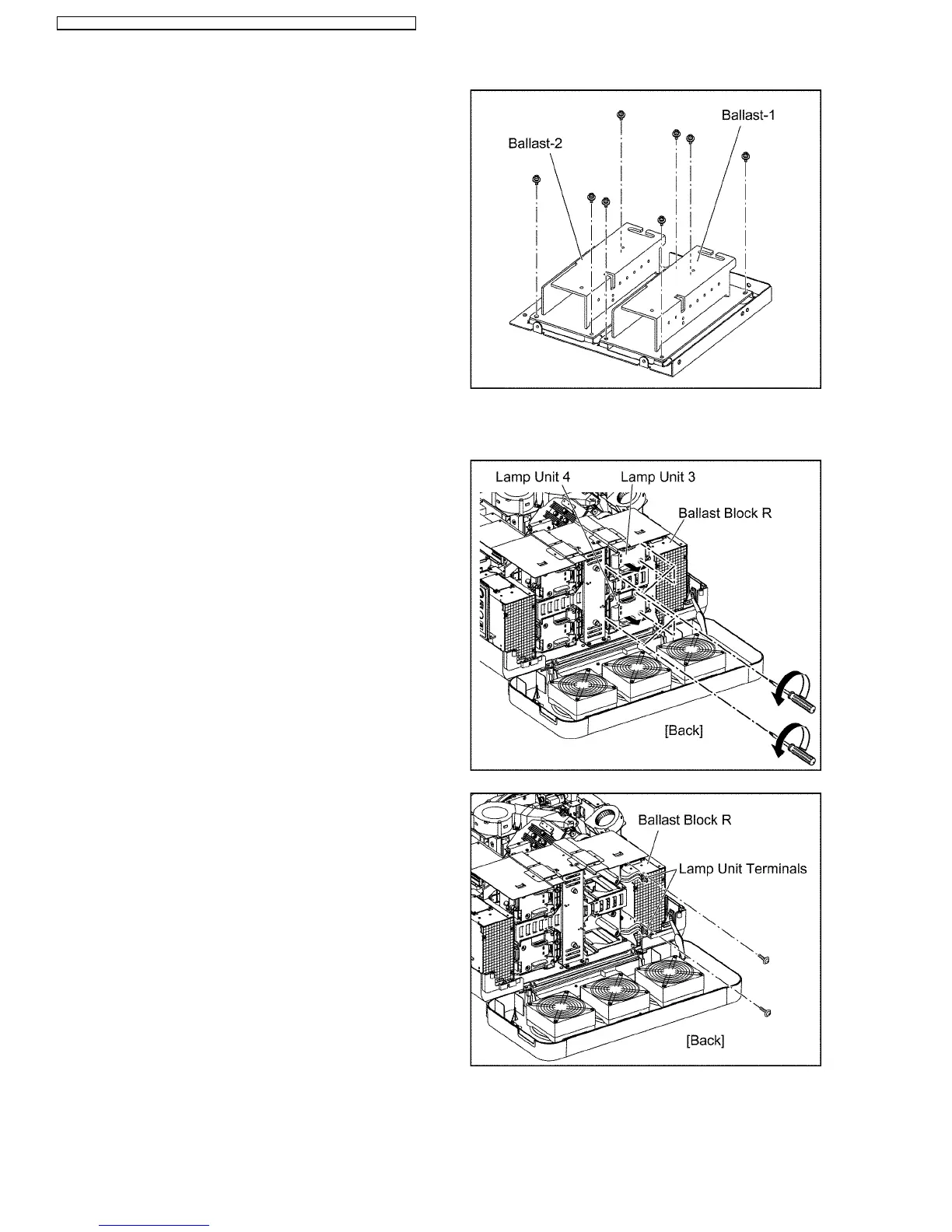

(10) Unscrew each of 4 screws and remove the ballasts 1 and 2 (B/Q-
Module).
12.18. Removal of Ballasts 3 and 4 (B/Q-Module)
(1) Remove the upper case according to the section 12.2. "Removal
of Upper Case".
(2) Loosen each of 3 screws until they idle, remove the lamp units 3
and 4.
(3) Unscrew each of 1 screw and release 2 lamp unit terminals of the
ballast block R.
42
PT-DZ12000U / PT-DZ12000E / PT-D12000U / PT-D12000E / PT-DW100U / PT-DW100E
