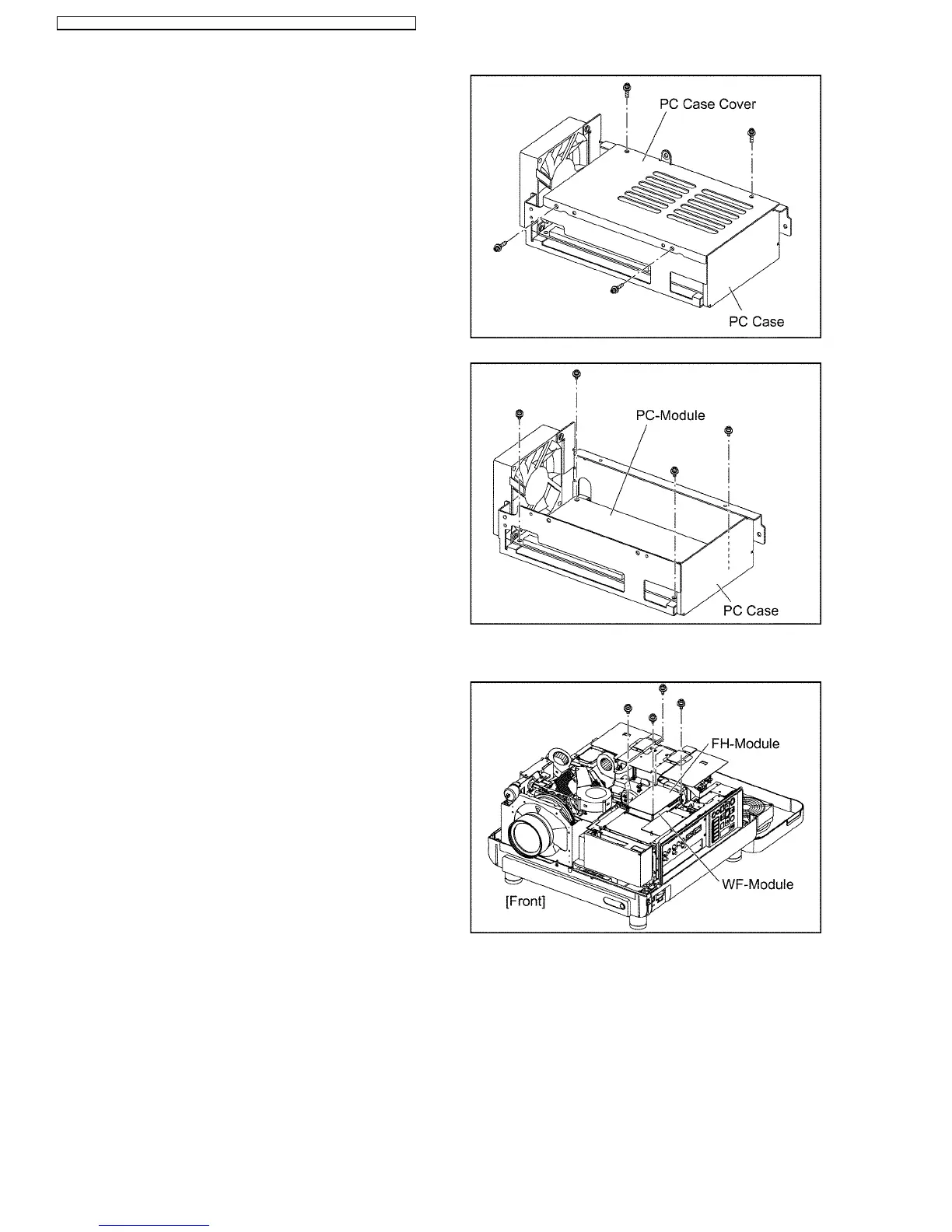

(4) Unscrew the 4 screws and remove the PC case cover.
(5) Unscrew the 4 screws and remove the PC-Module.
12.21. Removal of WF-Module (PT-DZ12000*/D12000* only)
(1) Remove the upper case according to the section 12.2. "Removal
of Upper Case".
(2) Unscrew the 4 screws and remove the FH-Module.
Notes:
·
The FH-Module is connected onto the WF-Module with
the connector. Work carefully when removing it.
46
PT-DZ12000U / PT-DZ12000E / PT-D12000U / PT-D12000E / PT-DW100U / PT-DW100E
