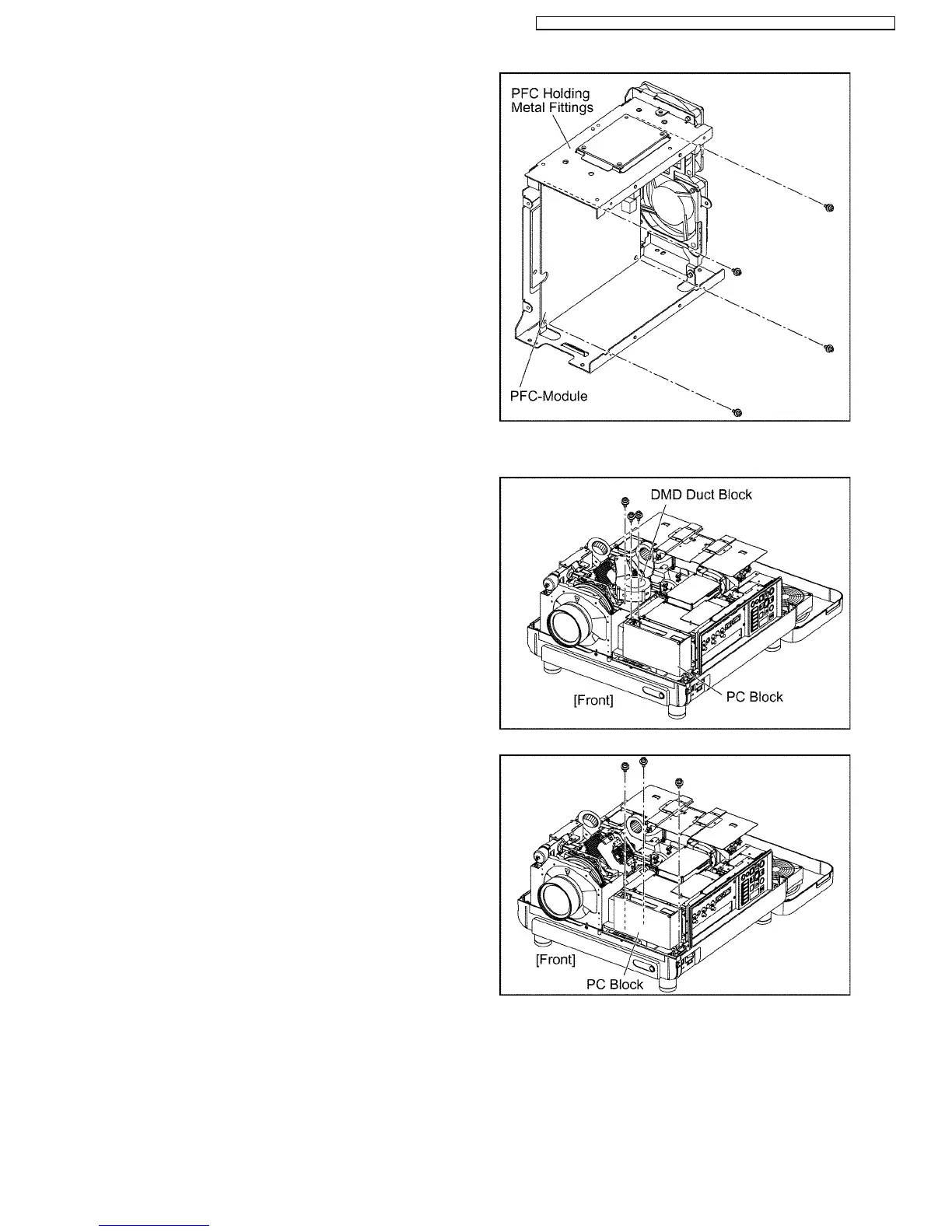

(1) Remove the PFC holding metal fittings (power unit) according to
the steps 1 through 9 in the section 12.17. "Removal of Ballasts
1 and 2 (B/Q-Module)".
(2) Unscrew the 4 screws and remove the PFC-Module.
12.20. Removal of PC-Module
(1) Remove the upper case according to the section 12.2. "Removal
of Upper Case".
(2) Unscrew the 3 screws and remove the DMD duct block.
(3) Unscrew the 3 screws and remove the PC block.
45
PT-DZ12000U / PT-DZ12000E / PT-D12000U / PT-D12000E / PT-DW100U / PT-DW100E
