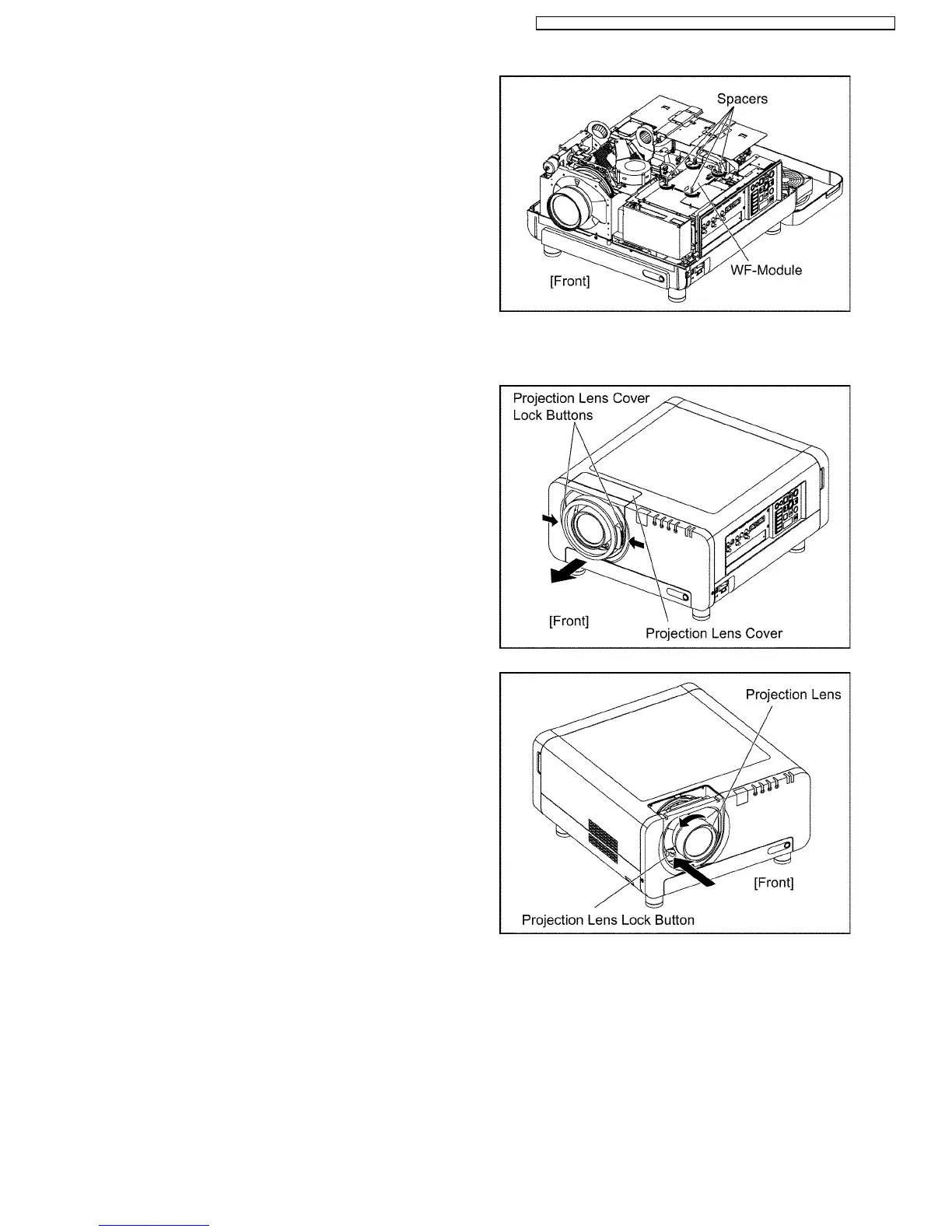

(3) Unscrew the 4 spacers counterclockwise and remove the WF-
Module.
Note:
·
The WF-Module is connected onto the A-P.C.Board with
the connector. Work carefully when removing it.
12.22. Removal of Projection Lens
(1) While pressing the projection lens cover lock buttons, pull the
cover forward to remove it.
(2) While holding down the projection lens lock button, turn the
projection lens counterclockwise, and then pull it off.
12.23. Removal of Lamp Unit
·
The procedure is described as an example of lamp unit 2.
47
PT-DZ12000U / PT-DZ12000E / PT-D12000U / PT-D12000E / PT-DW100U / PT-DW100E
