Panasonic PT-DZ12000U

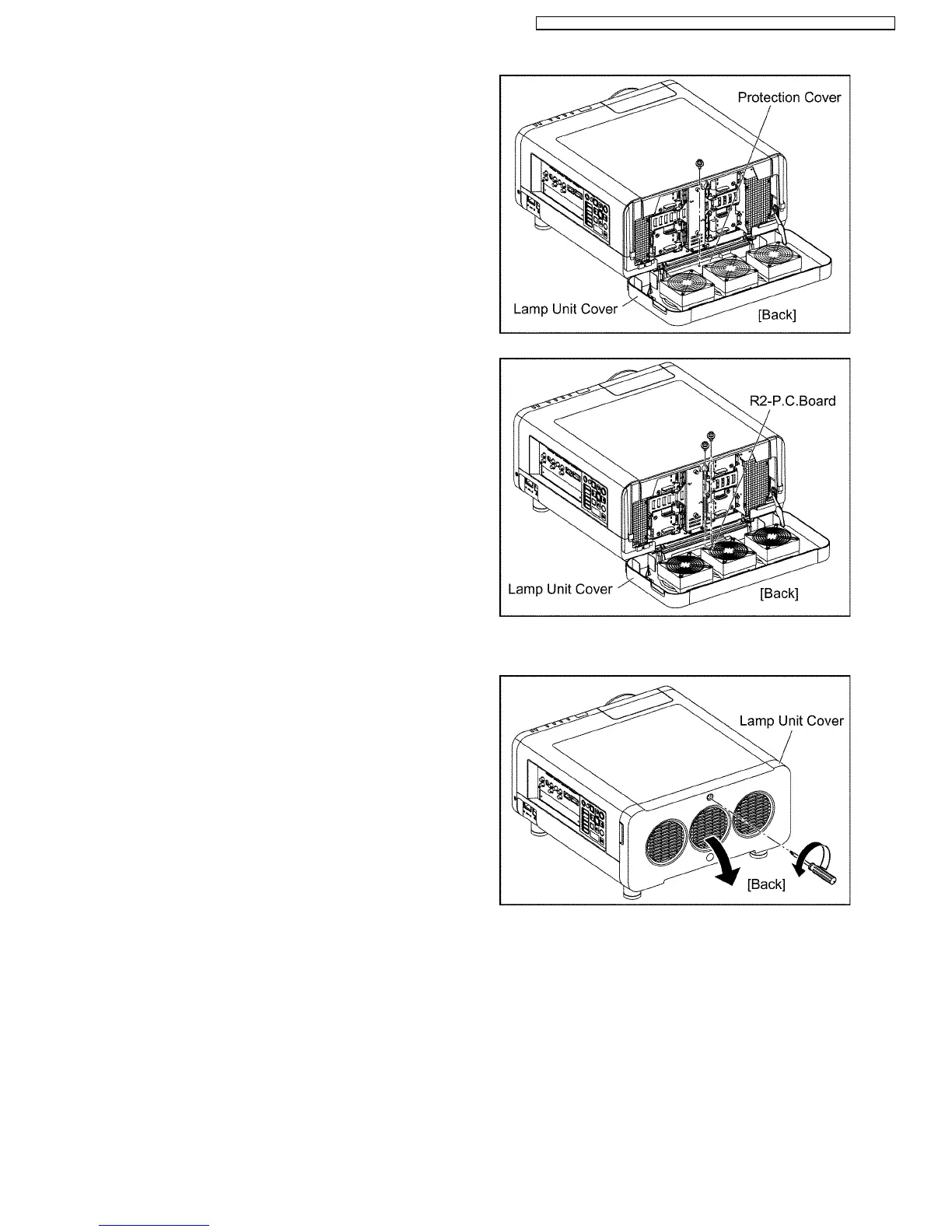

(2) Unscrew the 1 screw and remove the protection cover.
(3) Unscrew the 2 screws and remove the R2-P.C.Board.
12.13. Removal of R3-P.C.Board
(1) Loosen the 1 screw until it idles and open the lamp unit cover.
37
PT-DZ12000U / PT-DZ12000E / PT-D12000U / PT-D12000E / PT-DW100U / PT-DW100E
