Panasonic PT-DZ12000U

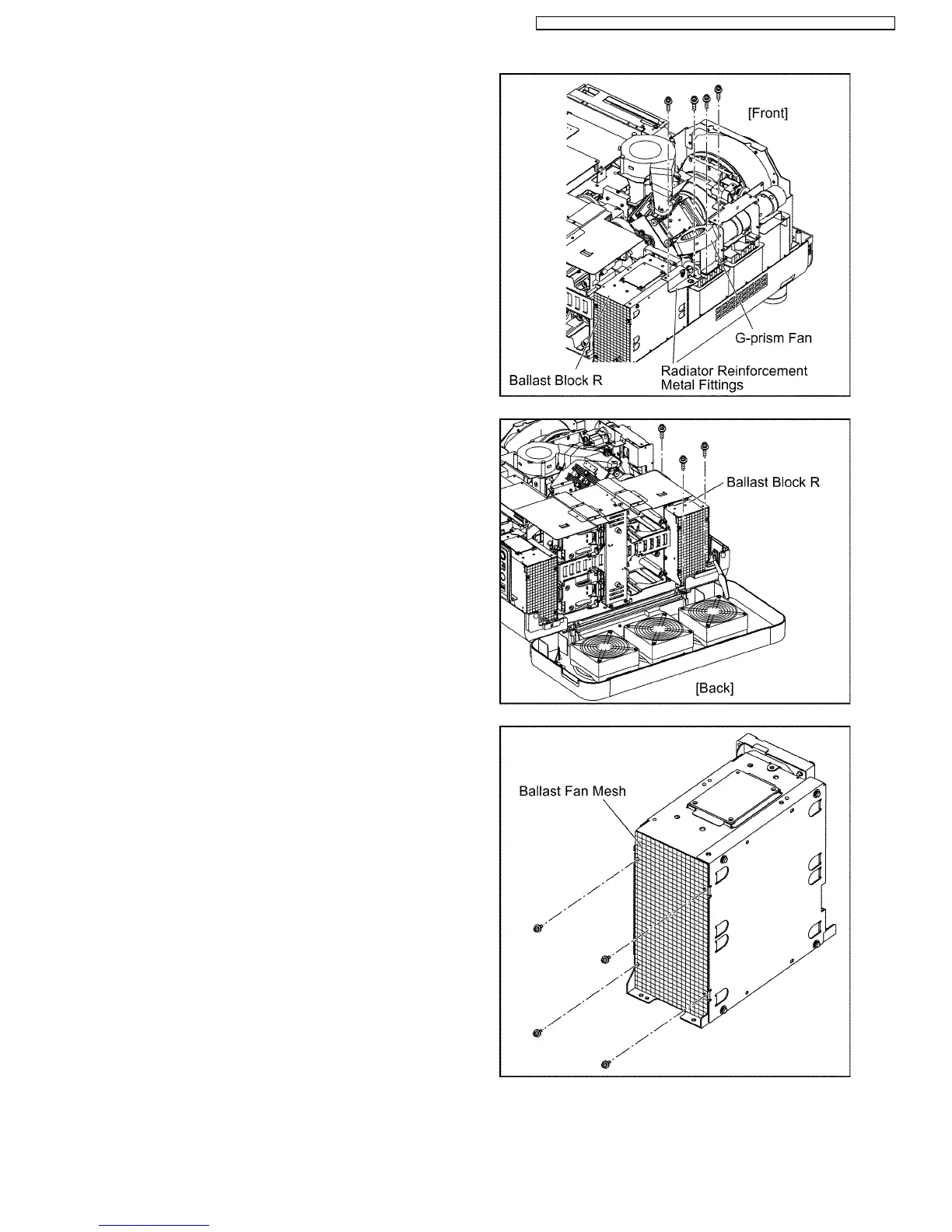

(4) Unscrew the 2 screws and remove the radiator reinforcement
metal fittings.
(5) Unscrew the 2 screws and remove the G-prism fan.
(6) Unscrew the 3 screws and remove the ballast block R.
(7) Unscrew the 4 screws and remove the ballast fan mesh.
43
PT-DZ12000U / PT-DZ12000E / PT-D12000U / PT-D12000E / PT-DW100U / PT-DW100E
