Panasonic SC-CH7 - Page 15

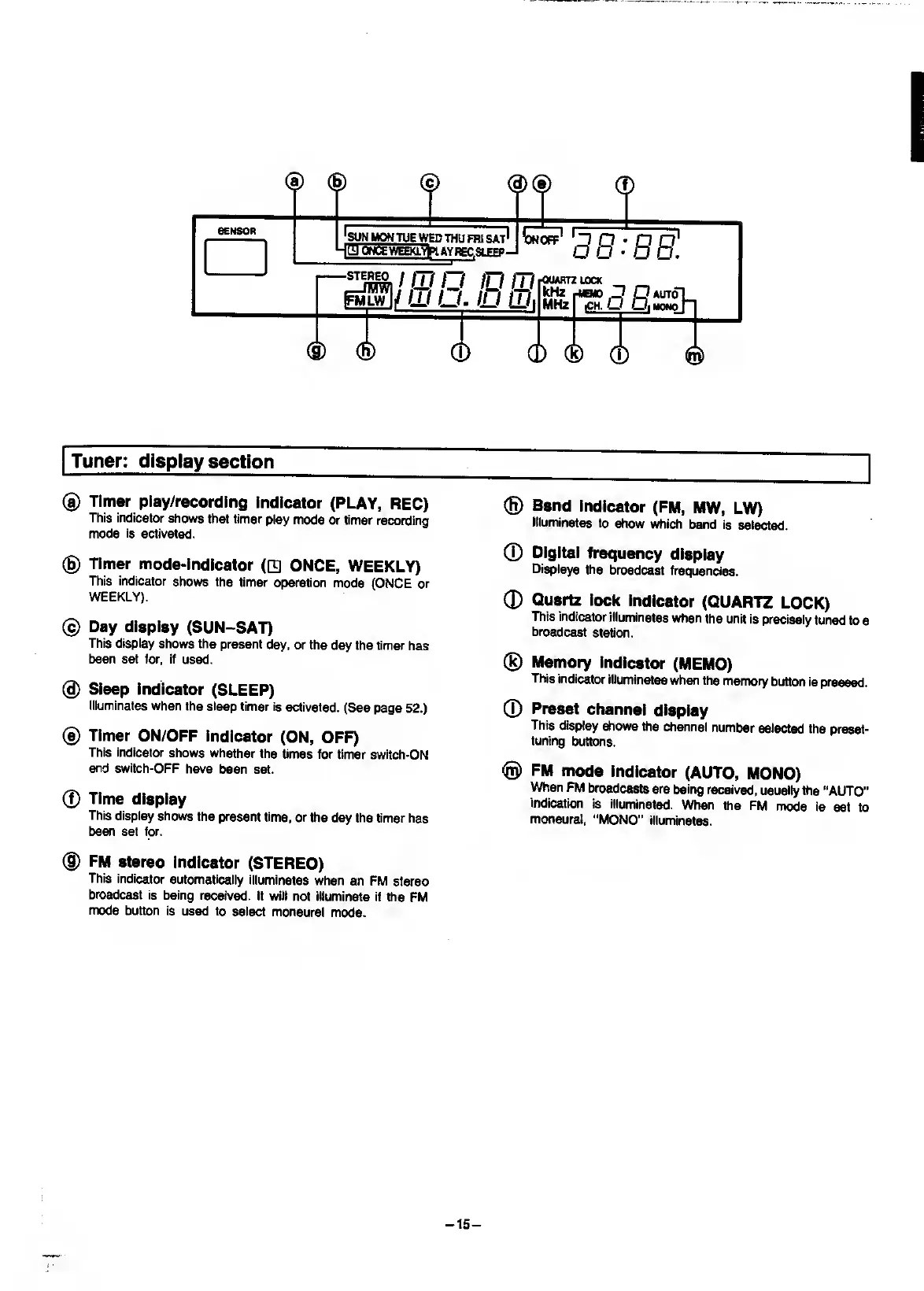

Tuner; display section
(g) Timer play/recordlng indicator (PLAY, REC)
This indicator shows that timer play mode or timer recording
mode is activated.
eg) Timer mode-indicator (Q ONCE, WEEKLY)
This indicator shows the timer operation mode (ONCE or
WEEKLY).
@ Day dispiay (SUN-SAT)
This display shows the present day, or the day the timer has
been set for, if used.
(3) Sieep indicator (SLEEP)
Illuminates when the sleep timer is activated. (See page 52.)
(i) Timer ON/OFF indicator (ON, OFF)
This indicator shows whether the times for timer switch-ON
and switch-OFF have been set.
0 Time dispiay
This display shows the present time, or the day the timer has
been set for.
(§) FM Stereo indicator (STEREO)
This indicator automatically illuminates when an FM stereo
broadcast is being received. It will not iiluminate if the FM
mode button is used to select monaural mode.
® Band indicator (FM, MW, LW)
Illuminates to show which band is selected.
0 Digitai frequency dispiay
Displays the broadcast frequencies.
0 Quartz iock indicator (QUARTZ LOCK)
This indicator illuminates when the unit is precisely tuned to a
broadcast station.
® Memory indicator (MEMO)
This indicator illuminates when the memory button is pressed.
0 Preset channel display
This display shows the channel number selected the preset¬
tuning buttons.
@ FM mode indicator (AUTO, MONO)
When FM broadcasts are being received, usually the “AUTO”
indication is illuminated. When the FM mode is set to
monaural, “MONO” illuminates.
- 15 -
