Parker AC10 series User Manual

9-30 Function Parameters
AC10 Inverter
In case of F432=1 and AO2 channel for token current, F434 is the ratio of measurement range
of external current type ammeter to rated current of the inverter.
For example: measurement range of external ammeter is 20A, and rated current of the inverter
is 8A, then, F433=20/8=2.50.
The greater the setting value of F437 is, the steadier the detecting analog is, but the response
speed will decrease. Please set it according to the actual situations.
F460 AI1channel input mode Setting range:
0: straight line mode
1: folding line mode
Mfr’s value: 0
F461 AI2 channel input mode Setting range:
0: straight line mode
1: folding line mode
Mfr’s value: 0
F462 AI1 insertion point A1 voltage value (V)
Setting range: F400～F464
Mfr’s value: 2.00
F463 AI1 insertion point A1 setting value
Setting range: F401～F465
Mfr’s value: 1.20
F464 AI1 insertion point A2 voltage value (V)
Setting range: F462～F466
Mfr’s value: 5.00
F465 AI1 insertion point A2 setting value
Setting range: F463～F467
Mfr’s value: 1.50
F466 AI1 insertion point A3 voltage value (V)
Setting range: F464～F402
Mfr’s value: 8.00
F467 AI1 insertion point A3 setting value
Setting range: F465～F403
Mfr’s value: 1.80
F468 AI2 insertion point B1 voltage value (V)
Setting range: F406～F470
Mfr’s value: 2.00
F469 AI2 insertion point B1 setting value
Setting range: F407～F471
Mfr’s value: 1.20
F470 AI2 insertion point B2 voltage value (V)
Setting range: F468～F472
Mfr’s value: 5.00
F471 AI2 insertion point B2 setting value
Setting range: F469～F473
Mfr’s value: 1.50
F472 AI2 insertion point B3 voltage value (V)
Setting range: F470～F412
Mfr’s value: 8.00
F473 AI2 insertion point B3 setting value
Setting range: F471～F413
Mfr’s value: 1.80
When analog channel input mode selects straight-line, please set it according to the
parameters from F400 to F429. When folding line mode is selected, three points A1(B1, A2(B2),
A3(B3) are inserted into the straight line, each of which can set the according frequency to input
voltage. Please refer to Figure 9-17:

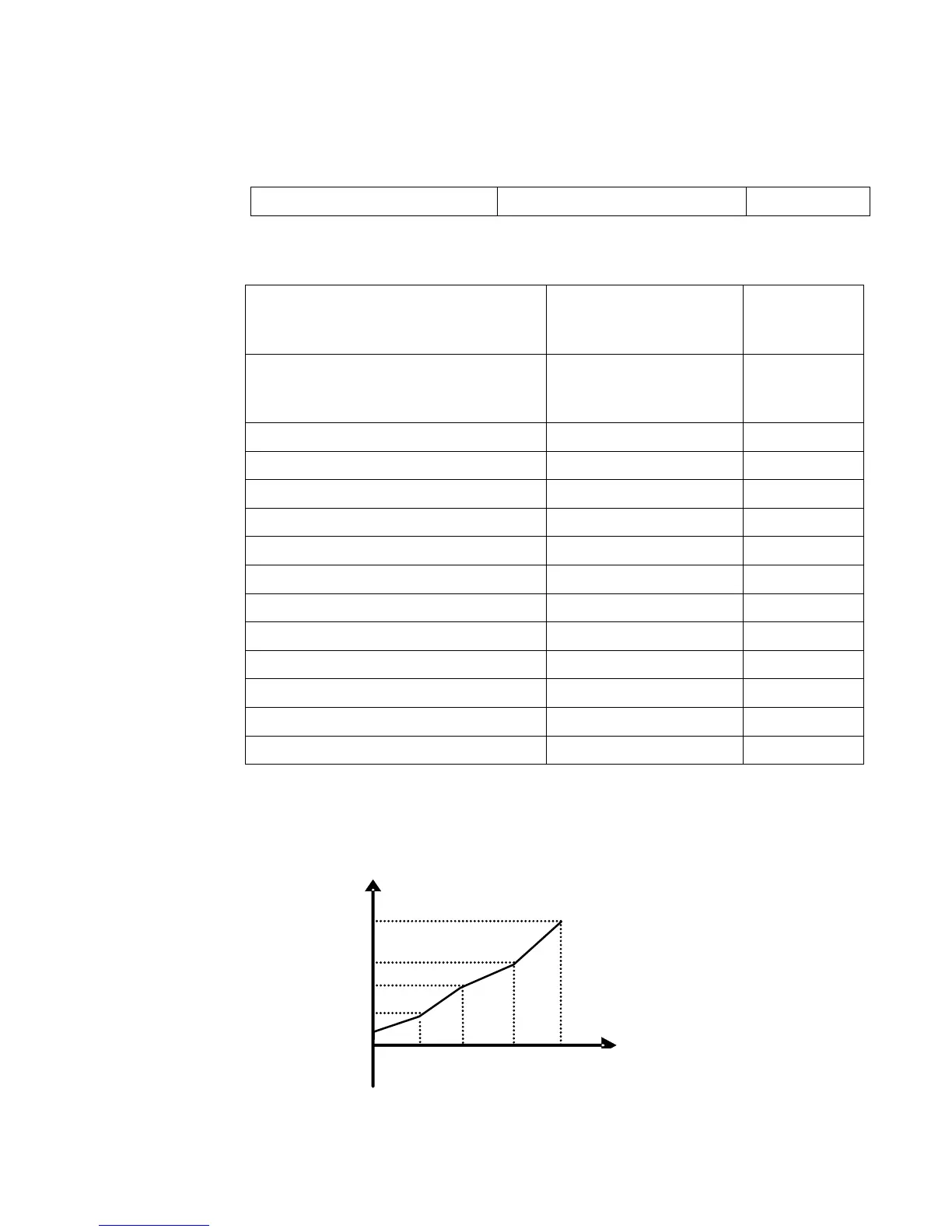

Figure 9-9 Folding analog with setting value
F400 and F402 are lower/upper limit of analog AI1 input. When F460=1，F462=2.00V, F463=1.4,
F437 Analog filter width
Setting range: 1～100
Mfr’s value:10
100%
A1 A2 A3 F402
F400
According setting (frequency)
AI1
