PCchips BKi810 - Mainboard Items

Book PC
Mainboard Items

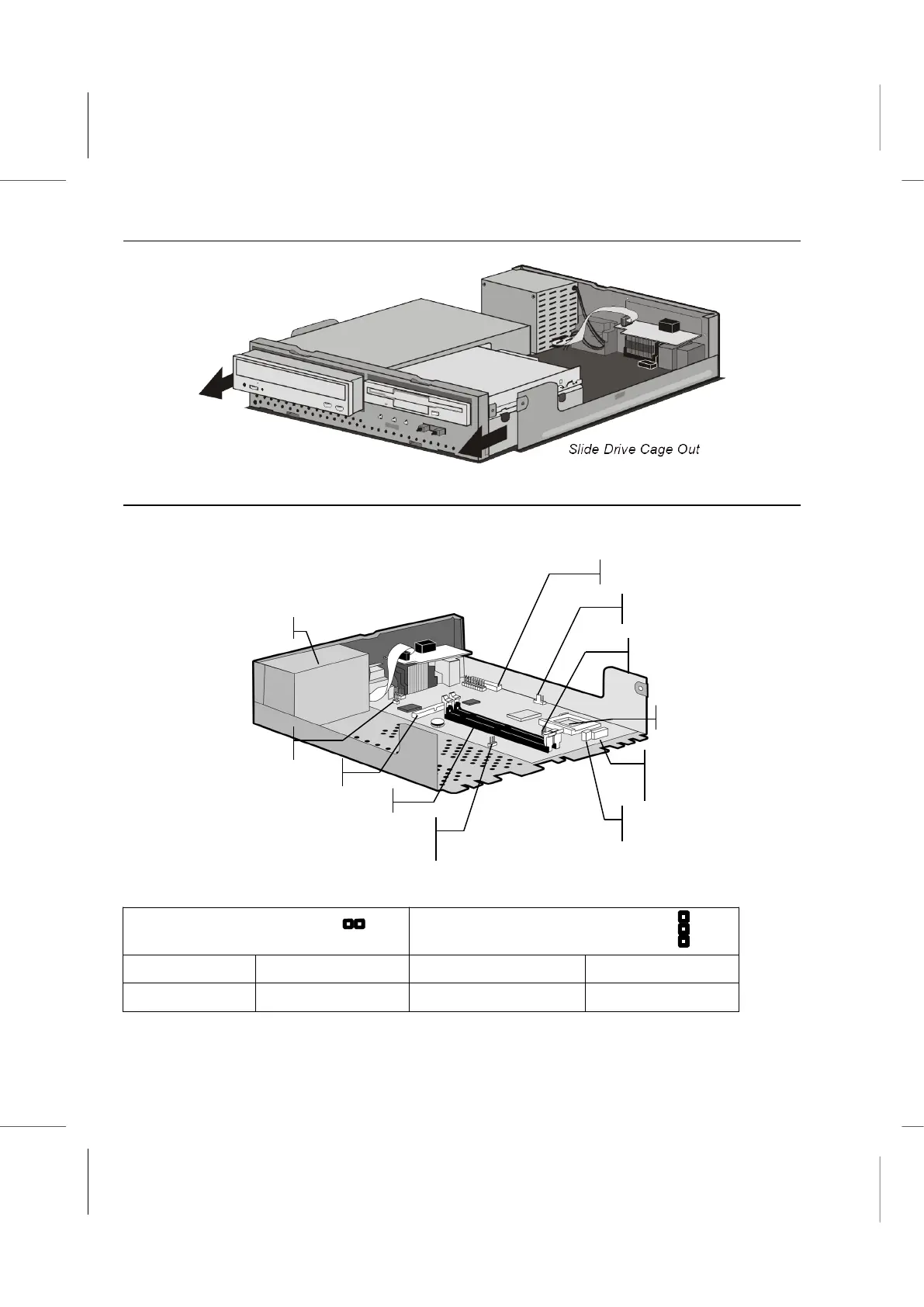

With the drive cage removed, use the pictures below to locate the labeled mainboard
items.
Jumper Settings:
JP8 – CPU Type Selector JP11 – 133 MHz CPU Selector
(for BKi810E model only)
Pentium III CPU Short Pins 1-2 133 MHz CPU Short Pins 1-2
Celeron CPU Open Pins 1-2 66/100 MHz CPU Short Pins 2-3
4 – 6
Processor Socket
System Memory
Power Supply
Connector for
Drives
Power Supply
FDD Connector
IDE Connector
Power Supply Connector
to Mainboard
CPU Fan Connector
JP8 - for CPU Type
Digital In Connector
(for CD/DVD/MP3)
JP11 – for 133 MHz CPU
(for BKi810E model only)
1
