10. Set the CPU Host/SDRAM/PCI Clock item to Defaul (the BIOS will automatically
detect the kind of processor) and the CPU Ratio item to match in the clock multiplier
of the installed CPU in the CPU Frequency Control page.
11. Press “ECS” key, and then press “F10” key to save and exit the setup program.
Changing System Memory

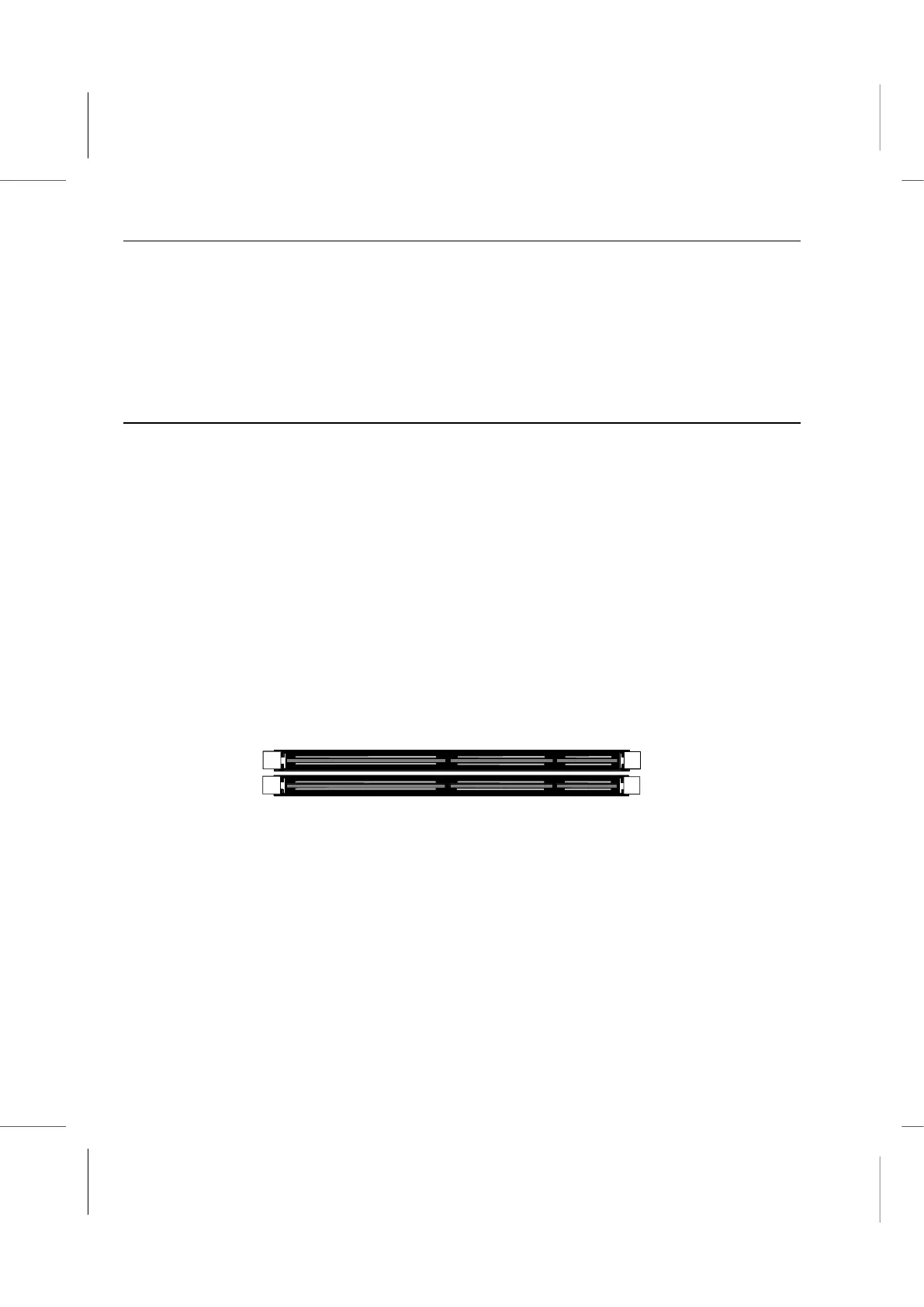

The Book PC mainboard has two 168-pin, 3.3 V DIMM (Dual In-line Memory Modules)
slots, which can be installed with SDRAM (Synchronous Dynamic Random Access
Memory) memory modules. You can use either 66 or 100 MHz memory modules.
You must install at least one memory module in order to use the Book PC. You can install
the memory module into any of the two DIMM slots. Each module can have a capacity
from 16 MB up to 256 MB, for a maximum system capacity of 512 MB.
The edge connectors on the memory modules have cut outs, which coincide with struts in
the DIMM slots, so the memory modules can only be installed in the correct way.
On the DIMM slot, pull the locking latches at either end of the slots outwards. Position the
memory module correctly and insert it into the DIMM slot. Press the module down into the
slot so that the locking latches lever inwards and lock the module in place.
