Going inside: Upgrading
Changing the Drives

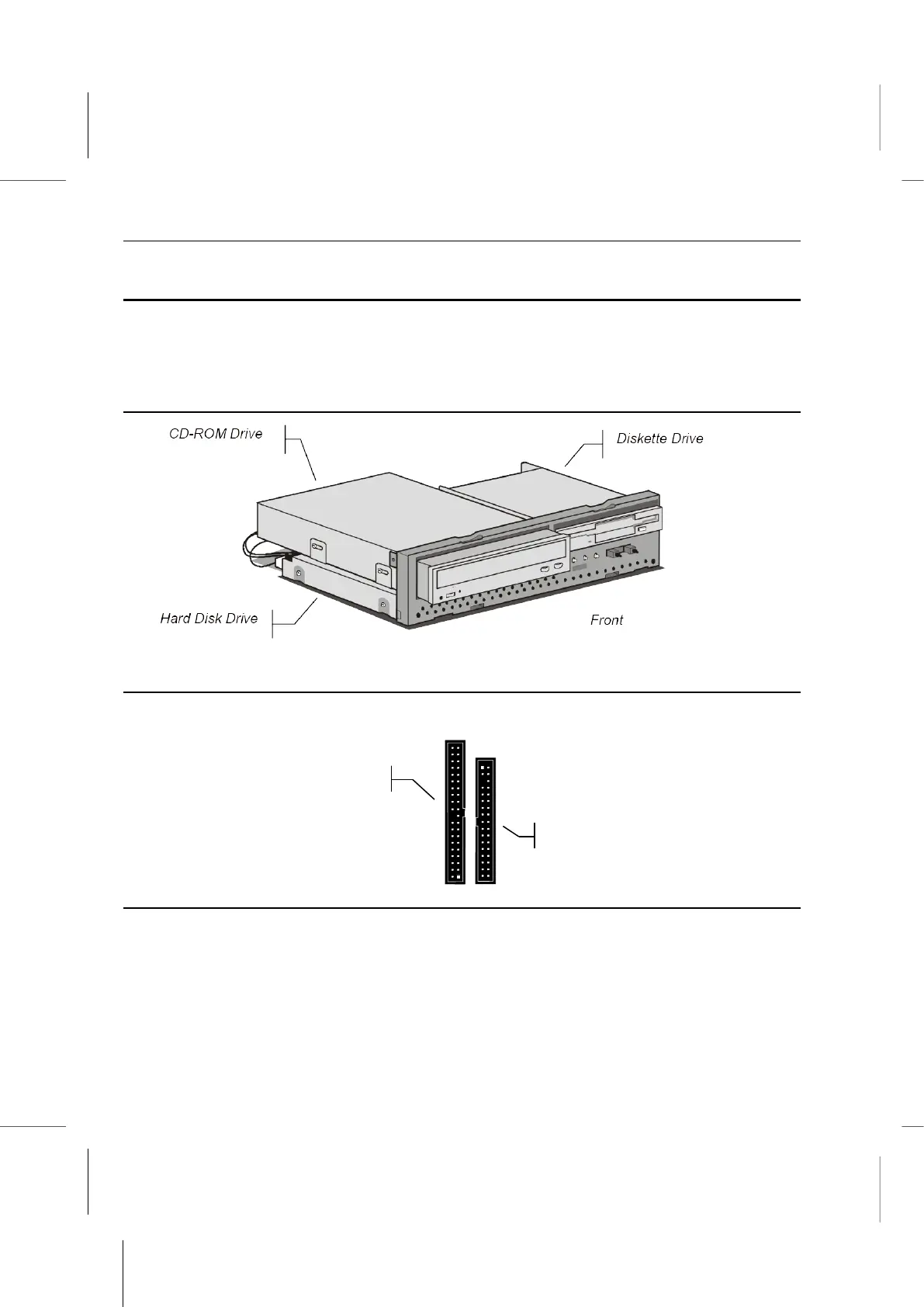

All the drives within the system are located in the drive cage. You can refer to the picture
above to see how to separate the drive cage from the chassis once the case cover is
removed.
The Drive Cage
Connectors
The connectors for the drives are located on the mainboard.
Changing the Hard Disk Drive
Locate the IDE connector on the mainboard. A single IDE cable is provided with the
mainboard. Connect the cable to the IDE connector. The cable has two connectors for
IDE devices. If you connect two devices, you must configure one device as Master, and
one device as Slave. See the documentation provided with the devices for information on
this.
