Relion 1900e/2900e Manual
Revision 1.0 36
Table 11. Riser Slot #3 - PCIe* Root Port Mapping
Riser Slot #3 - Riser Card Options
2U - Low Profile Riser Card
iPN – A2UX8X4RISER
Notes
Top PCIe* Slot
CPU #2 – Port DMI 2
(x4 elec, x8 mech)
PCIe* 2.0 Support Only
Bottom PCIe* Slot
CPU #2 – Port 3A
(x8 elec, x8 mech)
Ava
ilable riser cards for Riser Slots #1 and #2 are common between the two slots.
 1U – One
PCIe* add-in card slot – PCIe* x16, x16 mechanical

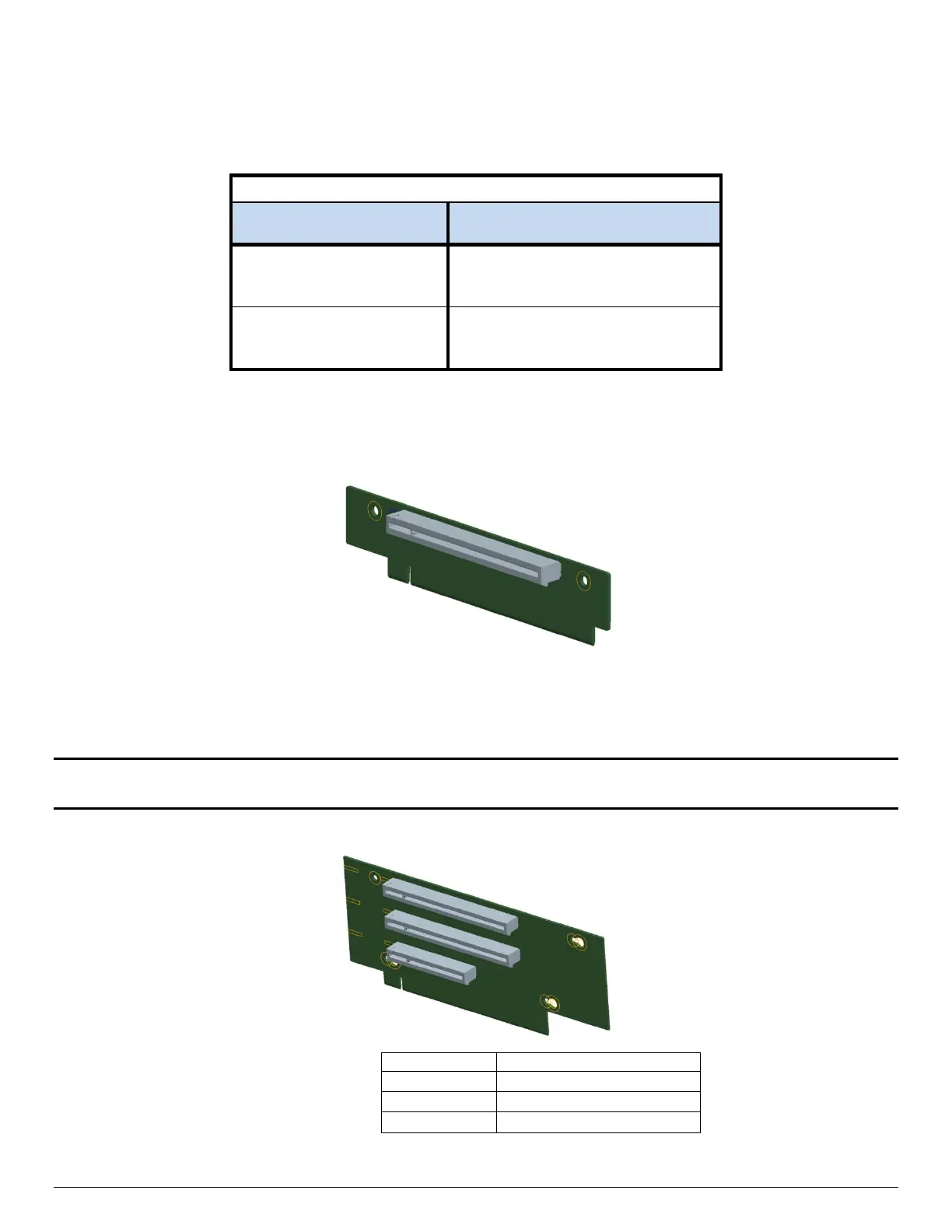

Figure 13. 1U one slot PCIe* riser card (iPC – F1UL16RISER2)
Each riser card assembly has support for a single full height, ½ length PCIe* add-in card. However, riser card
#2 may be limited to ½ length, ½ height add-in cards if either of the two mini-SAS HD connectors on the
server board are used.
Note: Add-in cards that exceed the PCI specification for ½ length PCI add-in cards (167.65mm or 6.6in) may
interfere with other installed devices on the server board.
 2U – Three PCIe* add-in card slots
Figur
e 14. 2U three PCIe* slot riser card (iPC – A2UL8RISER2)
Slot #
Description
Slot-1 (Top)
PCIe* x8 elec, x16 mechanical
Slot-2 (Middle)
PCIe* x8 elec, x16 mechanical
Slot-3 (Bottom)
PCIe* x8 elec, x8 mechanical
