5.4.2 Intel® I/O Module Support
To broaden the standard on-board feature set, the server board provides support for one of several
available Intel® I/O Module options. The I/O module attaches to a high density 80-pin connector on the
server board labeled “IO_Module” and is supported by x8 PCIe* 3.0 signals from the IIO module of the CPU 1
processor.

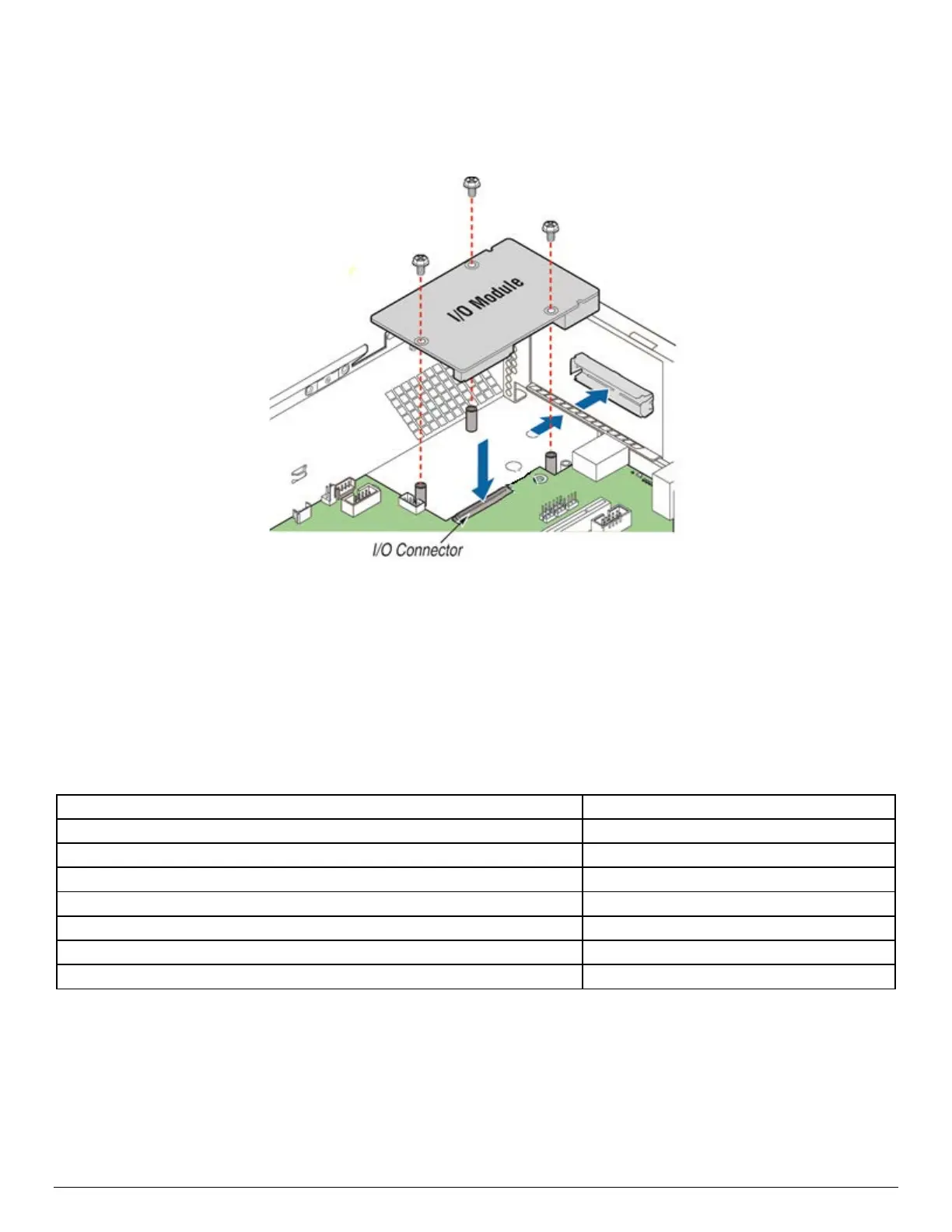

Figure 17. Server Board Layout - I/O Module Connector
Suppo
rted I/O modules include:
Table 12. Supported Intel
®
I/O Module Options
Description
Intel Product Code (iPC)
Quad Port Intel® I350 GbE I/O Module
AXX4P1GBPWLIOM
Dual Port Intel
®
X540 10GbE I/O Module
TBD
Dual Port Intel
®
82599 10GbE I/O Module
AXX10GBNIAIOM
Single Port FDR InfiniBand* ConnectX*-3 I/O Module
AXX1FDRIBIOM
Dual Ports FDR InfiniBand* ConnectX*-3 I/O Module
AXX2FDRIBIOM
Single port 40GbE I/O Module
AXX1P40FRTIOM
Dual Port 40GbE I/O Module
AXX2P40FRTIOM
