Relion 1900e/2900e Manual
Revision 1.0 50
5.9 USB Support
The server board provides support for both USB 2.0 (up to 480 Mb/sec) and USB 3.0 (up to 5 Gb/sec).

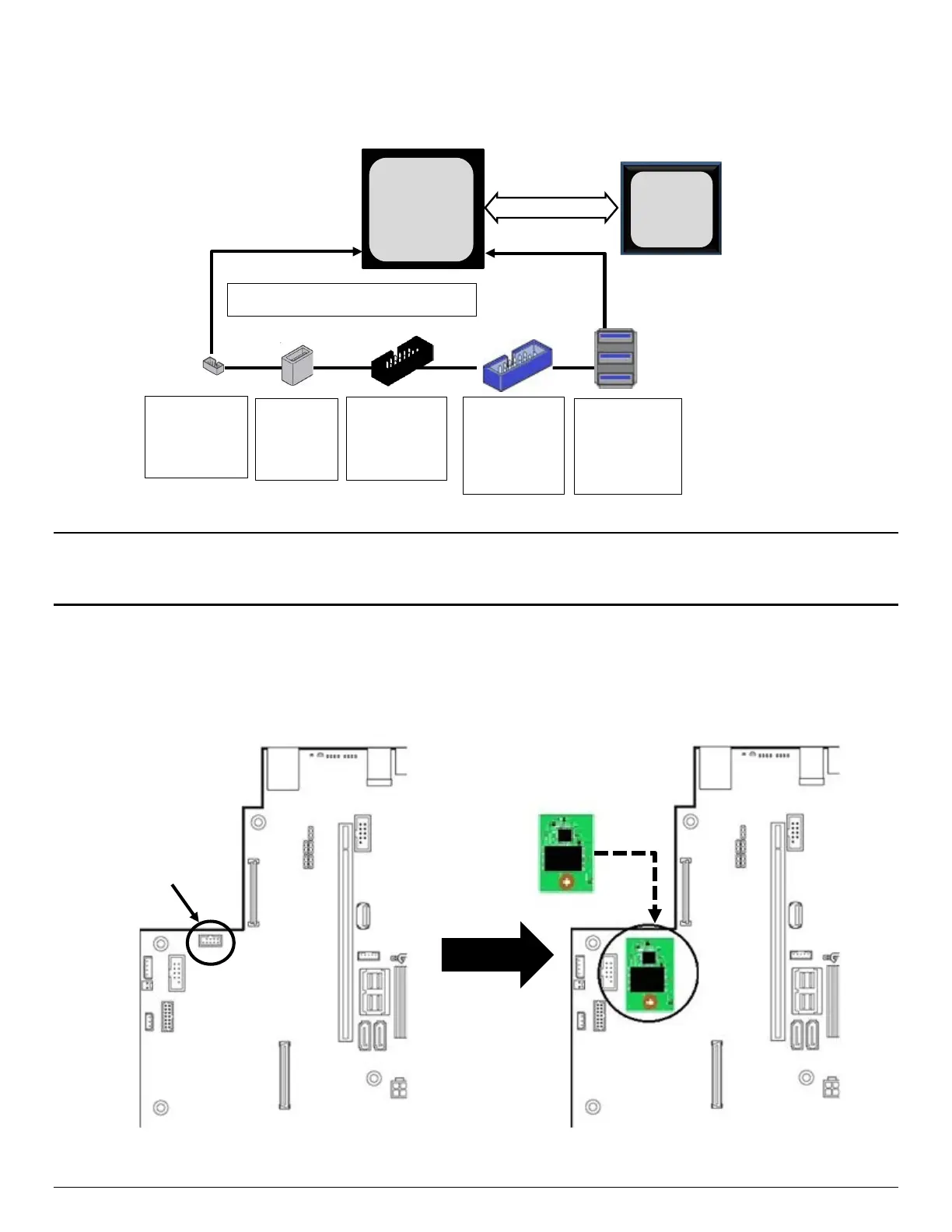

Figure 24. Onboard USB Port Support
* Note: Due to signal strength limits associated with USB 3.0 ports cabled to a front panel, some marginally
compliant USB 3.0 devices may not be supported from these ports. In addition, server systems based
on the S2600WT cannot be USB 3.0 certified with USB 3.0 ports cabled to a front panel.
5.9.1 Low Profile eUSB SSD Support
The server board provides support for a low profile eUSB SSD storage device. A 2mm 2x5-pin connector
labeled “eUSB SSD” near the rear I/O section of the server board is used to connect this small flash storage
device to the system.
Figure 25. Low Profile eUSB SSD Support
Intel
®
C612
Chipset
Dual Port Front
Panel Header
USB 2.0 (5,6)
Internal
Mount
Type-A
USB 2.0 (3)
Stacked Triple
Port Back Panel
USB 3.0 (2,3,5)
USB 2.0 (0,1,2)
Internal Mount
LP eUSB SSD
(Option)
USB 2.0 (8)
USB 2.0 & USB 3.0 I/O
(USB Port #s)
Integrated
BMC
USB 2.0 (4,12)
* Dual Port
Front Panel
Header
USB 3.0 (1,4)
USB 2.0 (10,13)
LP eUSB SSD
connector
