Relion 1900e/2900e Manual
Revision 1.0 52

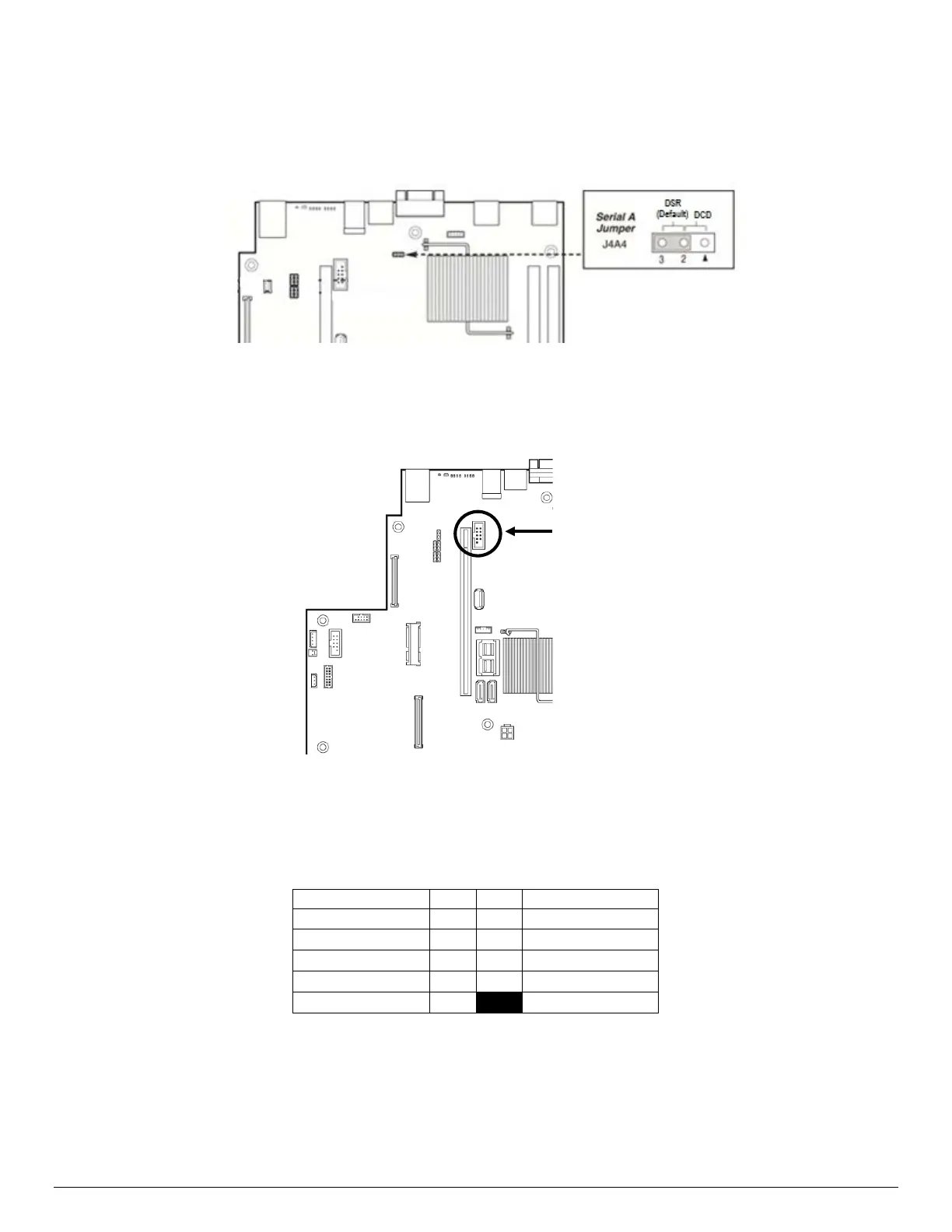

** Pin 7 of the RJ45 Serial A connector is configurable to support either a DSR (Default) signal or a DCD
signal. Pin 7 signals are changed by moving the jumper on the jumper block labeled “J4A4”, located behind
the connector, from pins 1-2 (default) to pins 2-3.
Serial
-A configuration jumper block (J4A4) setting:
Seri
al-B is an internal 10-pin DH-10 connector labeled “Serial_B”.
The S
erial B connector has the following pin-out.
Table 17. Serial-B Connector Pin-out
Signal Description
Pin#
Pin#
Signal Description
DCD
1
2
DSR
SIN
3
4
RTS
SOUT
5
6
CTS
DTR
7
8
RI
GROUND
9
KEY
Serial B
DH-10
