Installer Manual 255/LOGIX 742-762-764 - Spare parts
Ref. MKT-IM-021 / A - 20.02.2019 87 / 92

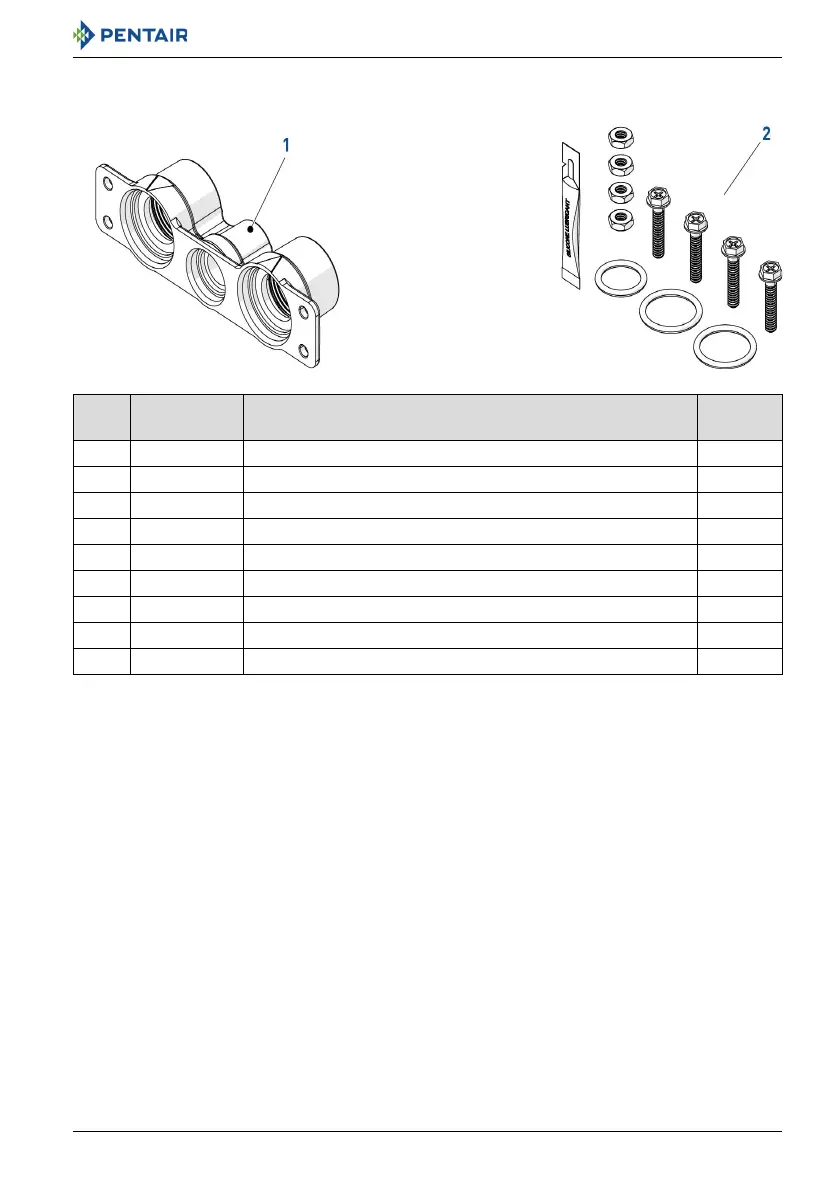

Piping boss (manifold)
* Not shown
Item Part number Description
Assembly
quantity
1 3023761 Piping boss 3/4" BSPT s. steel S 3/8" BSPT drain 1
3023747 Piping boss 1" BSPT s. steel 1/2" BSPT drain 1
1040283 Piping boss 3/4" BSPT Noryl 1/2" BSPT drain 1
2 1040524 Piping boss/meter install kit 1
* 3028275 3/8" drain elbow for manifold 1
* 3028272 1/2" drain elbow for manifold 1
* 1036988 1/2" drain connector for manifold 1
* 1234255 Male plastic piping boss 1" BSP 1
* 1234256 Male plastic piping boss 3/4" BSP 1
