Installer Manual 255/LOGIX 742-762-764 - Spare parts
88 / 92 Ref. MKT-IM-021 / A - 20.02.2019

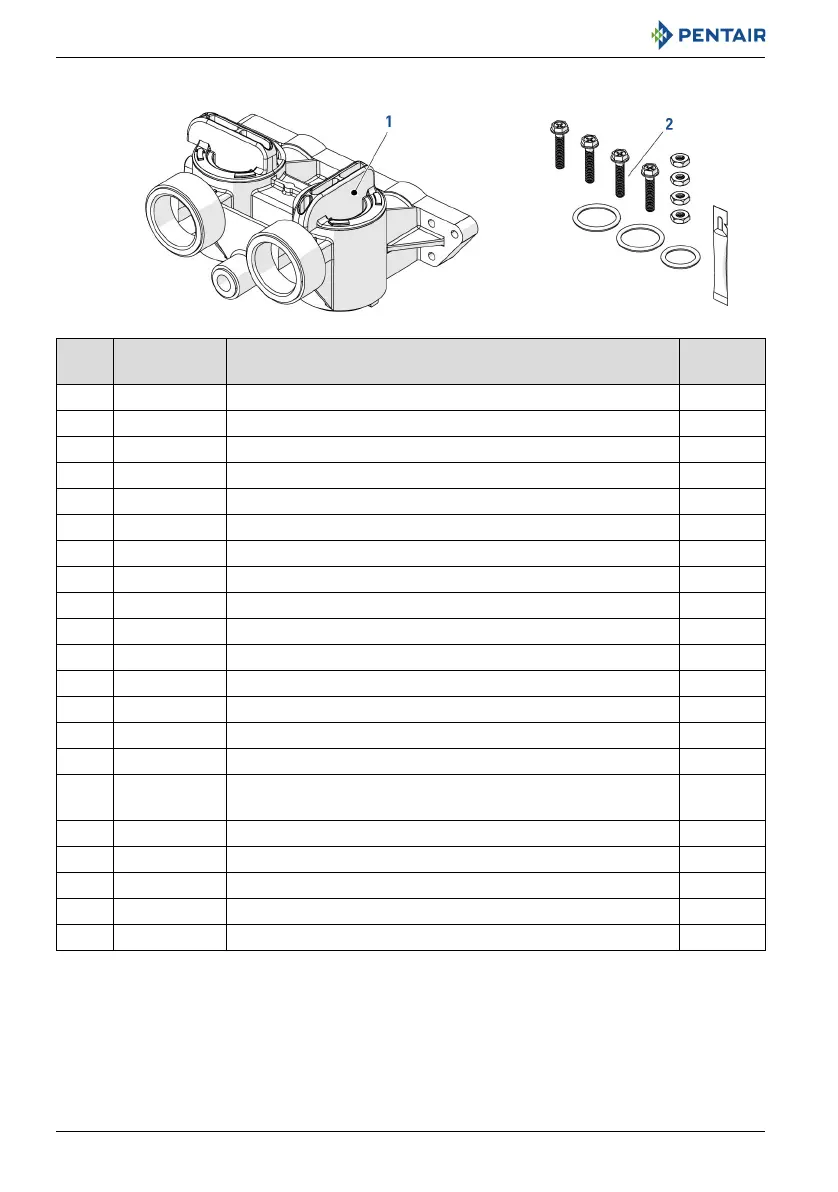

Bypass & connections
* Not shown
Item Part number Description
Assembly
quantity
1 1040769 Bypass body assy (includes bypass installation kit) 1
2 1040524 Bypass installation kit 1
* 1034302 Bypass repair kit (rotor seals & clips) 1
* 3028264 Drain elbow for bypass 256 1
* 3023824 3/4" BSPT stainless steel pipe adapter kit 1
* 3023807 1" BSPT stainless steel pipe adapter kit 1
* 1001608 22 mm copper tube adapter kit 1
* 1001615 32 mm PVC tube adapter kit 1
* 1001614 1" PVC tube adapter kit 1
* 1001613 3/4" PVC tube adapter kit 1
* 1030541 Gasket for 1" pipe or tube 2
* 1034385 Adapter nut 1 - 1 1/4" bakelite 2
* 1030540 Plumbing adapter 3/4" copper tube 2
* 1030545 Plumbing adapter 1" copper tube 2
* 3014557 Plumbing adapter for 1" NPT stainless steel 2
* 3013737
Plumbing adapter for 3/4" BSPT stainless steel (replaces
1030576)
2
* 1030574 Plumbing adapter for 22 mm copper tube 2
* 1030578 Plumbing adapter for 3/4" CPVC pipe 2
* 1030579 Plumbing adapter for 1" CPVC pipe 2
* 1000982 Plumbing adapter for 3/4" BSPT plastic male thread 2
* 1001422 Plumbing adapter for 1" BSPT plastic male thread 2
