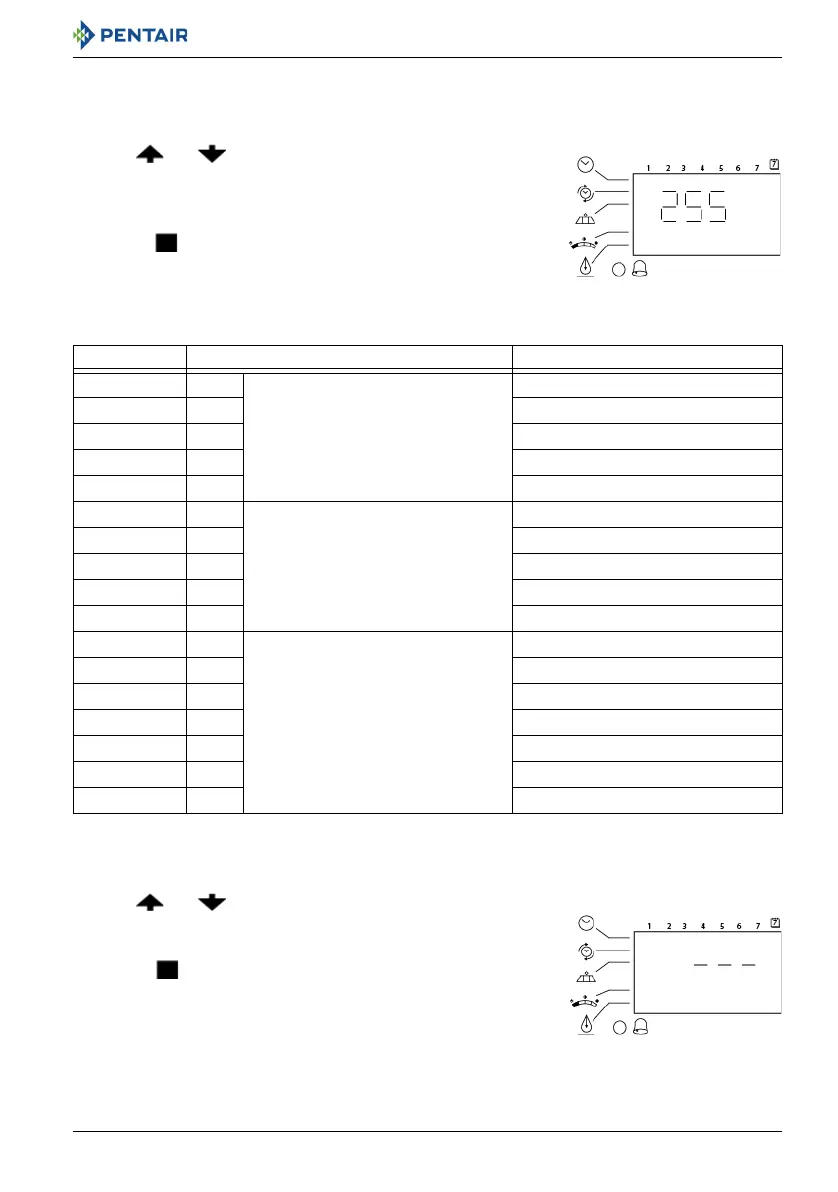

6.3.2. Basic programming 764 controller
6.3.2.1 Program valve and system types
Set your valve and system types through the options.
Preprogrammed configurations:
6.3.2.2 Program system size
Set your resin volume in liters.
A Use and to scroll through valve and system
types choices.
→ Display flashes.
B Choose the 255 valve type and the corresponding system type.
C Press to validate and advance to the next parameter.
D If an incorrect setting is programmed, see “Resetting the
controller”, page 57.
Type Valve Application
255A 255
Twin Alternating
8-cycles softener
273A 273 3-cycles filter
278A 278 5-cycles softener
293A 293 3-cycles filter
298A 298 5-cycles softener
255P 255
Twin Parallel
8-cycles softener
273P 273 3-cycles filter
278P 278 5-cycles softener
293P 293 3-cycles filter
298P 298 5-cycles softener
255L 255
Single tank or multi-simplex system
(Lockout).
Regeneration mode: metered, time
clock or remote regeneration
8-cycles softener
263L 263 3-cycles filter
268L 268 8-cycles softener
273L 273 3-cycles filter
278L 278 5-cycles softener
293L 293 3-cycles filter
298L 298 5-cycles softener
A Use and to scroll through resin volume choices.
→ Three dashes than resin volume flashes.
B Choose the nearest volume to your actual system size.
C Press to validate the system size selected and advance to
the next parameter.
D If an incorrect setting is programmed, see “Resetting the
controller”, page 57.
