Setting Up the Printer
Checking the DIP Switches
The PocketJet printer has eight DIP switches that control
how the printer works. Follow these steps to make sure the
switches are set correctly.
1 Set the printer face down so that the battery
compartment is toward you.
2 Find the set of eight DIP switches marked SW1 on the
bottom of the printer.
See Figure 8.
3 Check the settings of the DIP switches.
At the factory, DIP switches 1,3-6, and 8 are set in the OFF
position. Switches 2 and 7 are set in the ON position.
Figure 8 shows the factory settings.
For a table listing the function of each DIP switch, see
“DIP Switches” on page 44.
PENTAX
THERMAL PRINTER
MODEL NO. PT-A4301
INPUT: DC 14.4V-1.3A
SER. NO.
AO4X12345
This device complies with Part 15 of
the FCC Rules. Operation is subject
to the following two conditions: (1) this
device many not cause harmful
interference, and (2) this device must
accept any interference received
including interference that may cause
undesired operation.
This product meets radio onterference
noise limits EN 55022 (B).
ASAHI OPTICAL CO.,LTD.
MADE IN JAPAN
SW1
Battery compartment
FCC ID: DU2 PT-A4301
TO BE USED WITH MODEL PT-1501A
RECHARGEABLE BATTERY.
SW1
ON
OFF
1
2
3
4
5
6
7
8

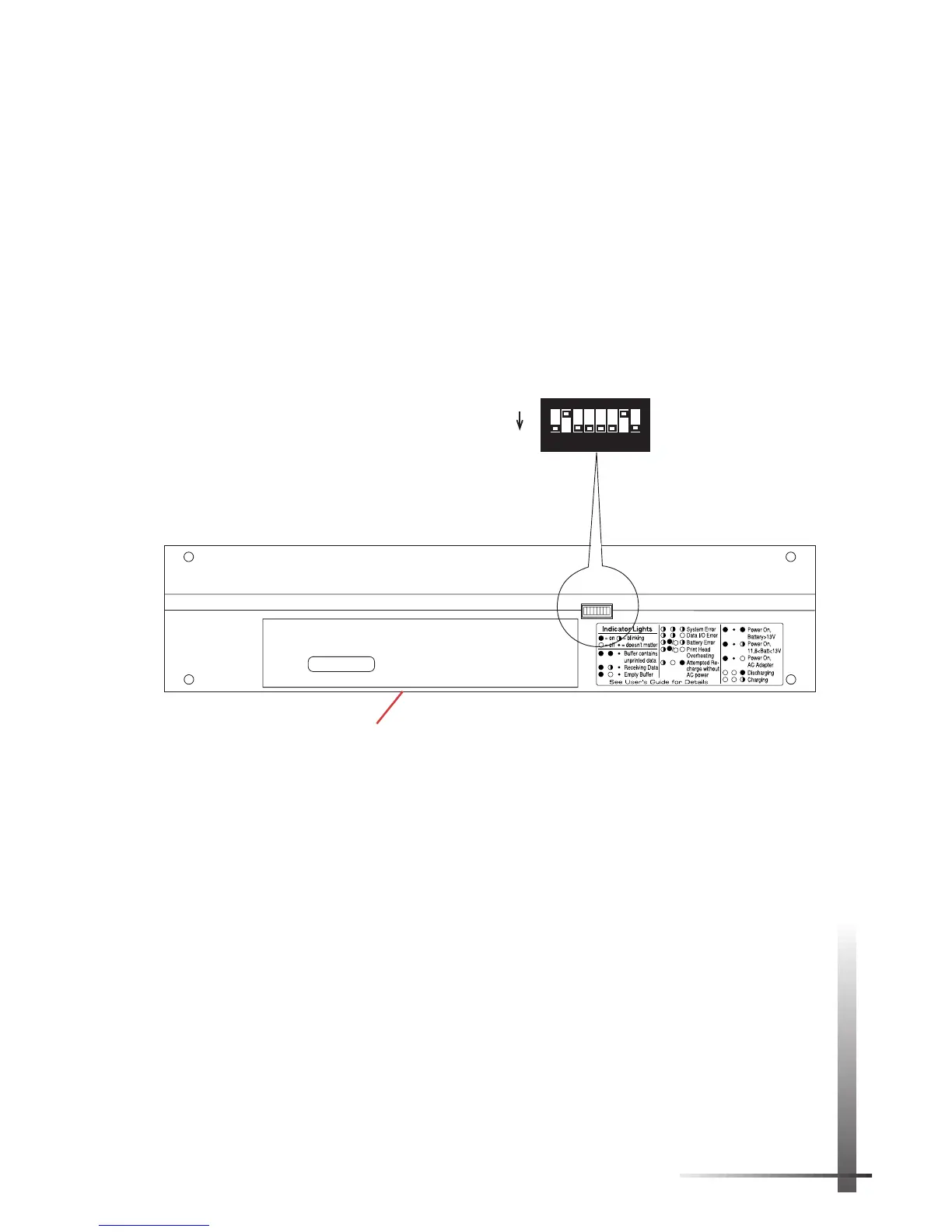

FIGURE 8. Checking the printer’s DIP switches.
