Playing Back and Deleting Images
Connecting the Camera to AV
Equipment
By using the supplied AV cable (I-AVC7), you can capture and play back
images on equipment with a video IN jack, such as a TV.
1
Turn the AV device and camera off.
2

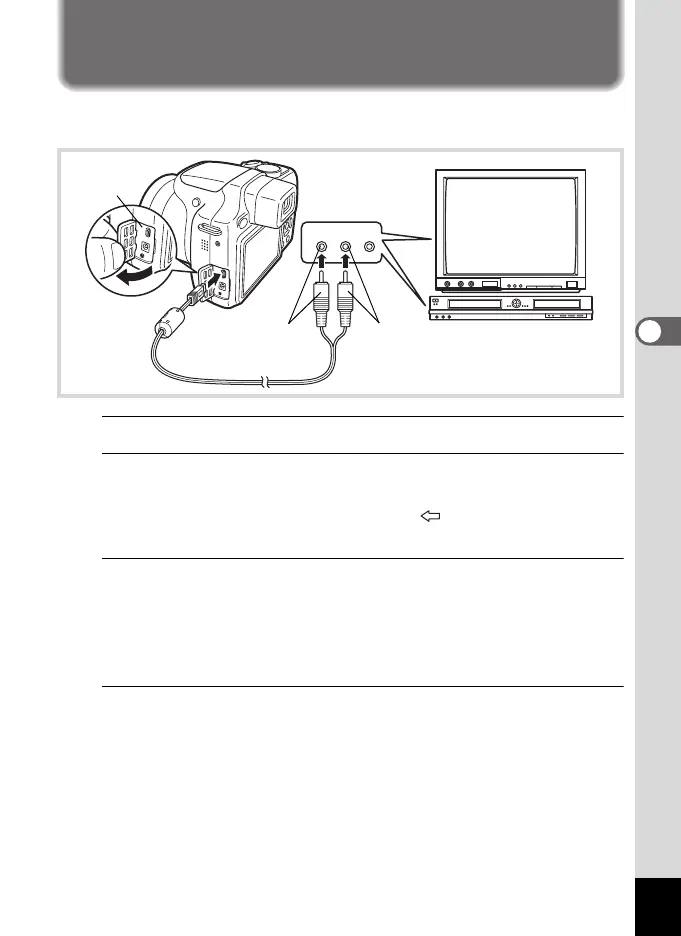

Open the camera's terminal cover and connect the AV
cable to the PC/AV terminal.
Connect the terminal of the AV cable with pointing toward the 4
on the PC/AV terminal of the camera.
3
Connect the other ends of the AV cable (yellow: video,
white: audio) to the video input terminal and audio input
terminal of the AV device.
When using stereo sound equipment, insert the sound terminal into the
L (white) terminal.
4
Turn the AV device on.
When the device that the camera is connected to and the device that
plays back images are different, turn both devices on.
When viewing images on AV equipment with multiple video input
terminals (such as a TV), refer to the operation manual of the device
and select the video input terminal to which the camera is connected.
VIDEO
AUDIO
(L) (R)
PC/AV
terminal
yellow white
External Input
Terminal
