AS-i 3.0 PROFIBUS Gateway in Stainless Steel
Appendix: Example for startup on a Siemens S7

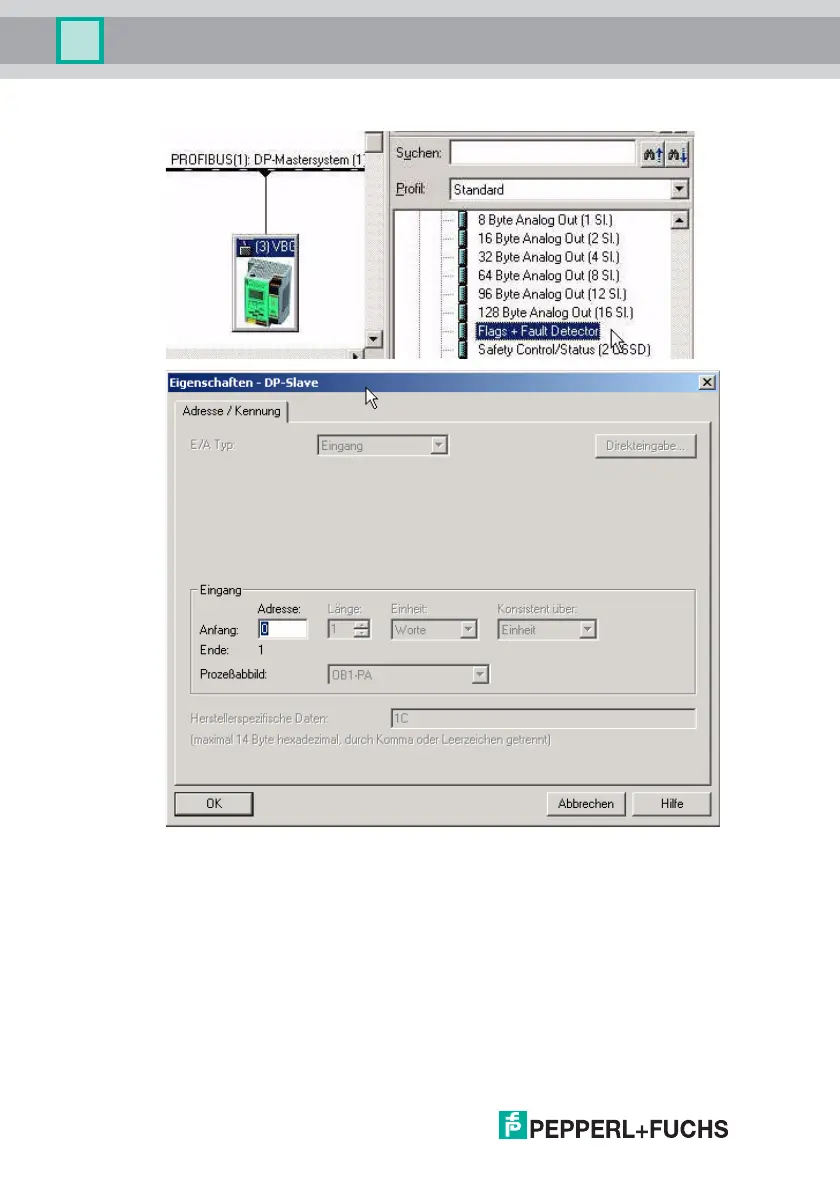

3. Drag the selected communication module to the table line for Slot 0.
4. Select the desired communication module from the hardware catalog. Here
"16 Byte Digital In/Out (0-31)"
