Adjustment
14 - 58
1
3

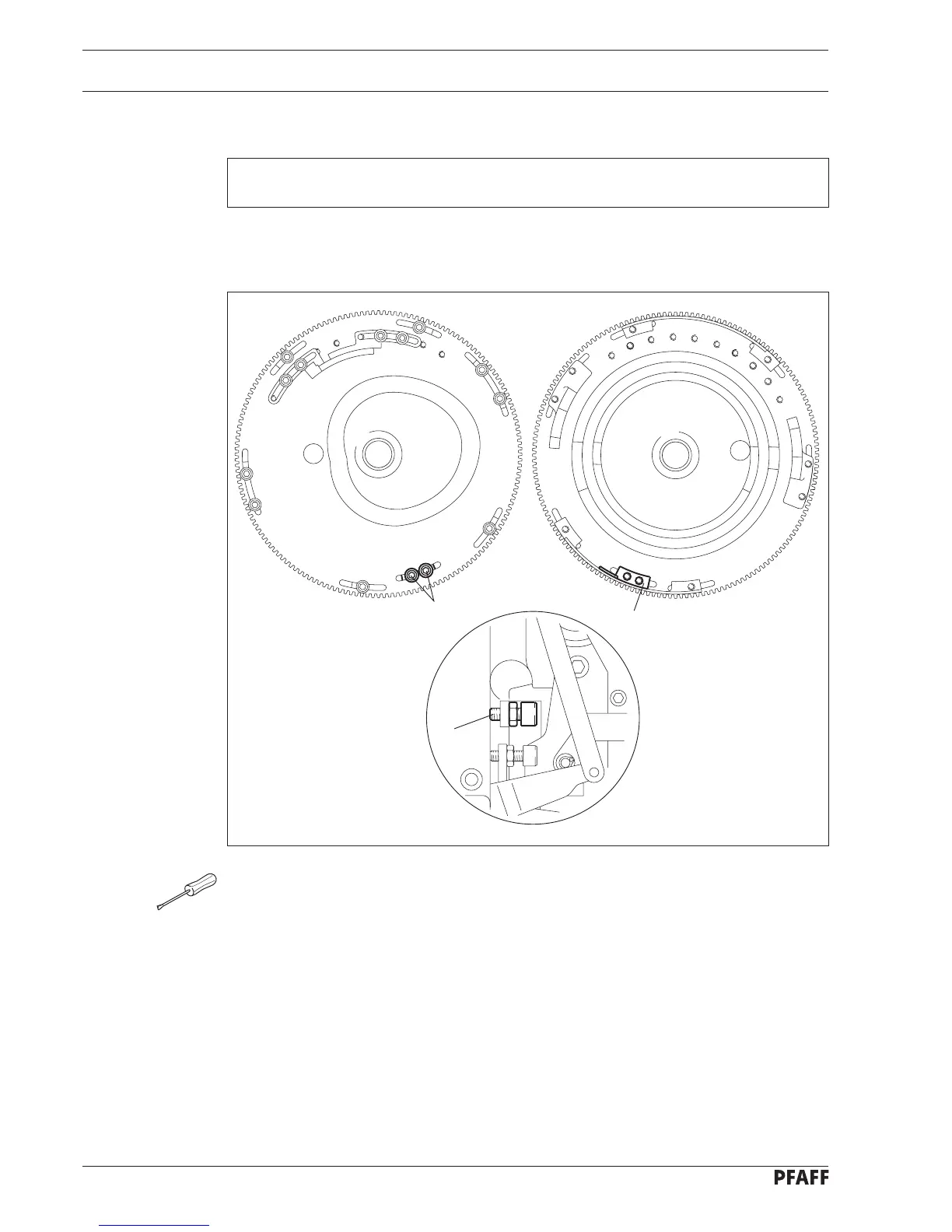

Fig. 14 - 56
2
● Bring the machine into a position just before the beginning of the final bartack stitches.
● Engage the stop motion device.
● Turn the drive pulley in its direction of rotation until the first final bartack stitch has been
completed.
● In this position the plunger must have dropped from the highest point of the knife latch 1
and screw 2 must be touching the housing again.
● Loosen screws 3 and move the knife latch 1 in accordance with the requirement.
● Tighten screws 3.
14.26 Knife triggering time
Requirement
The movement of the knife must be triggered after the first stitch of the final bartack.
