Pfaff 3117 - Knife Carrier to Cutting Slot Alignment

Adjustment
14 - 30

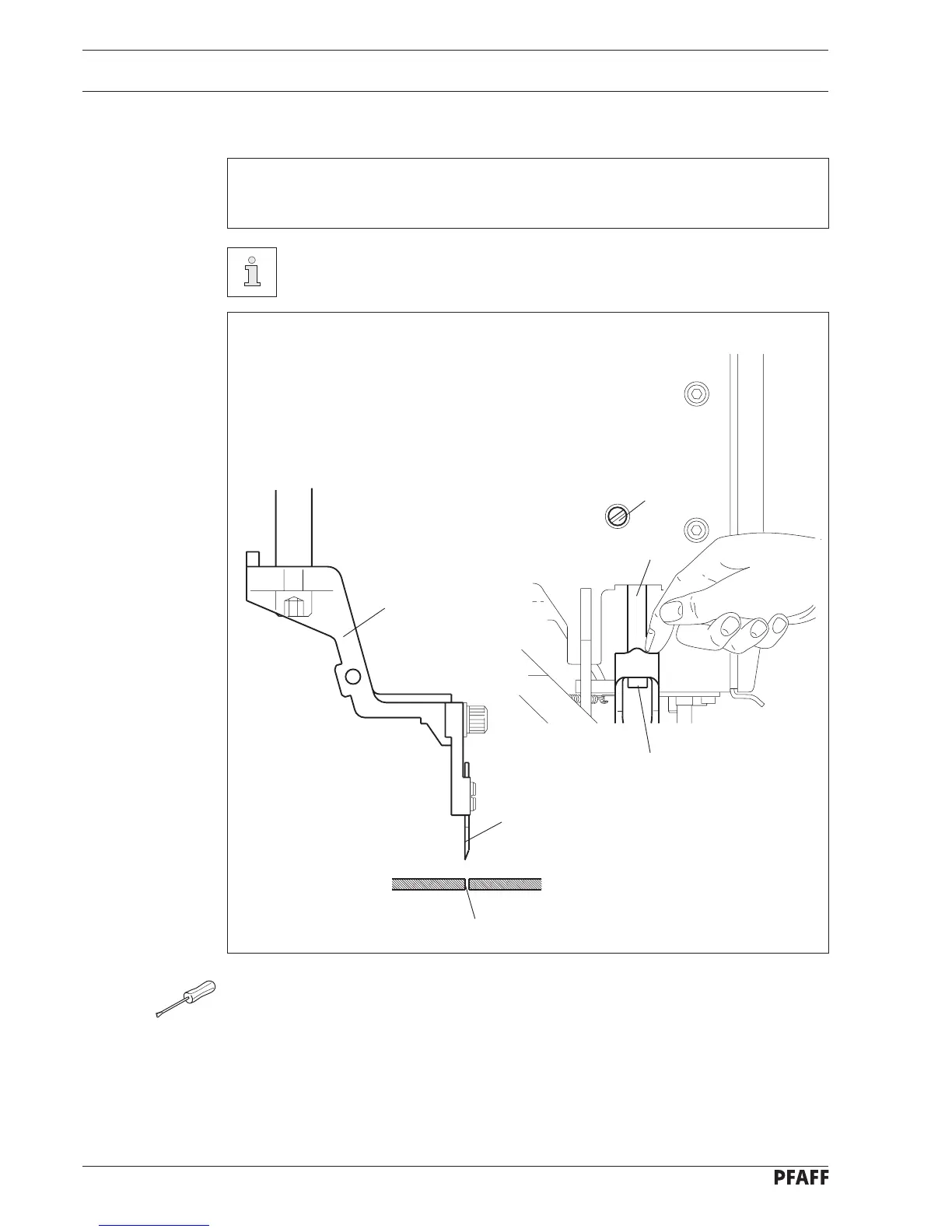

Fig. 14 - 28
4
5
3
2
1
6
● Press the knife bar 3 down manually.
● Loosen screw 4.
● Turn the knife bar 3 in accordance with requirement 1.
● Tighten screw 4.
● Loosen screw 5.
● Move the knife carrier 6 in accordance with requirement 2.
● Tighten screw 5.
14.12.07 Position of the knife carrier relative to the cutting slot
Requirement
1. The knife 1 must be parallel to the cutting slot 2.
2. The knife 1 must be in the middle of the cutting slot 2.
Carry out this adjustment with a needle plate with a knife actuating hole
mounted.
