Preparation
11 Preparation
All regulations and notes in this Instruction manual are to be adhered to.
Special attention is to be taken to the safety requirements!
All Preparation work must be carried out only by appropriately trained persons.
The machine is to be separated from the power supply at the On/Off switch or
by pulling the plug out of the socket whenever carrying out preparation work!
11.01 Inserting the needle
Switch off the machine!
● Loosen the needle retaining screw 1.
● Insert needle 2 as far as possible.
● The long needle-groove must be facing
the knife.
● Tighten the needle retaining screw 1.
Attention! needle point and
knife blade! Danger of injury!
Hole 3 can be used to check if
the needle 2 is inserted
properly. By inserting a suitable
tool into hole 3 pieces of
broken needle can be
removed.
11 - 1

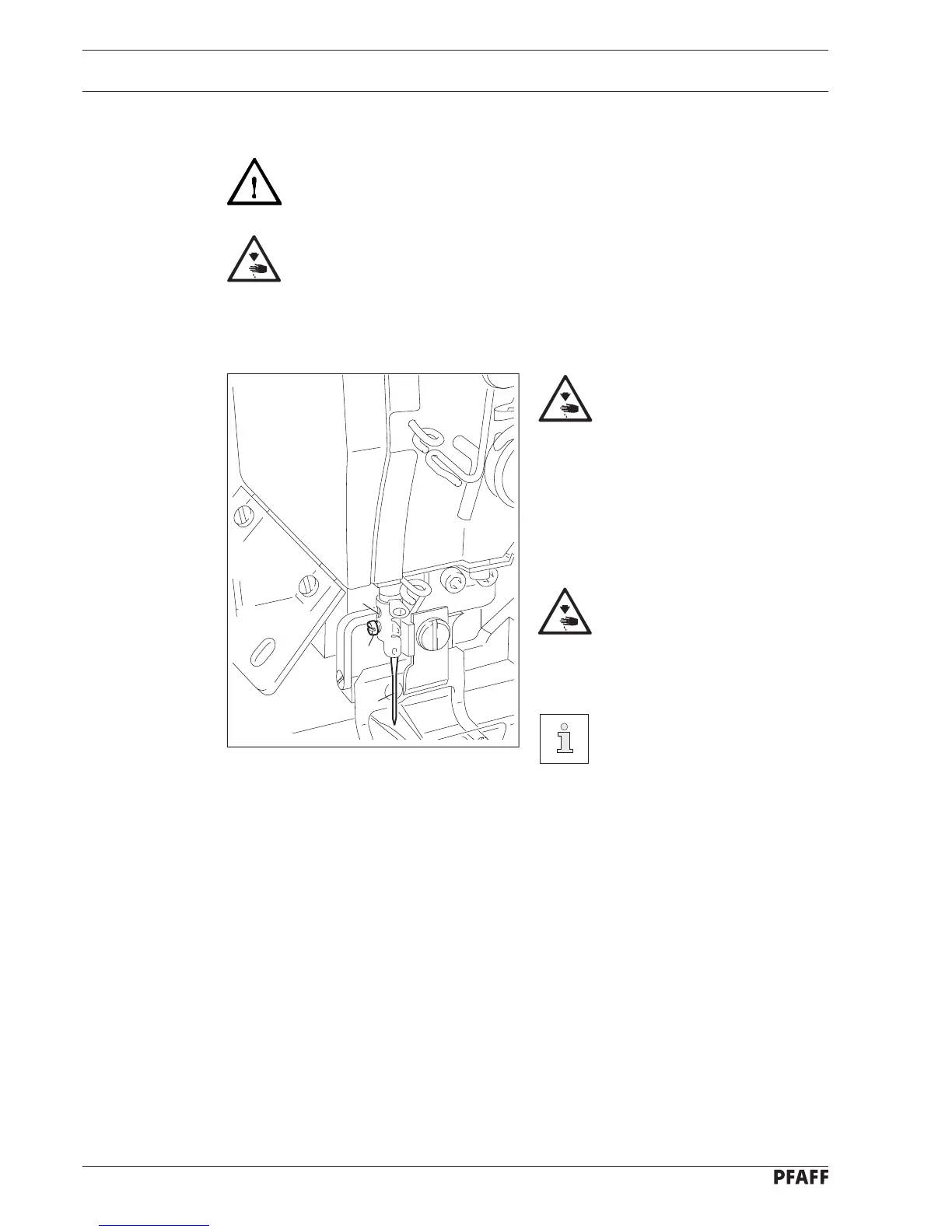

Fig. 11 - 01
1
3
2
