Adjustment
14 - 8

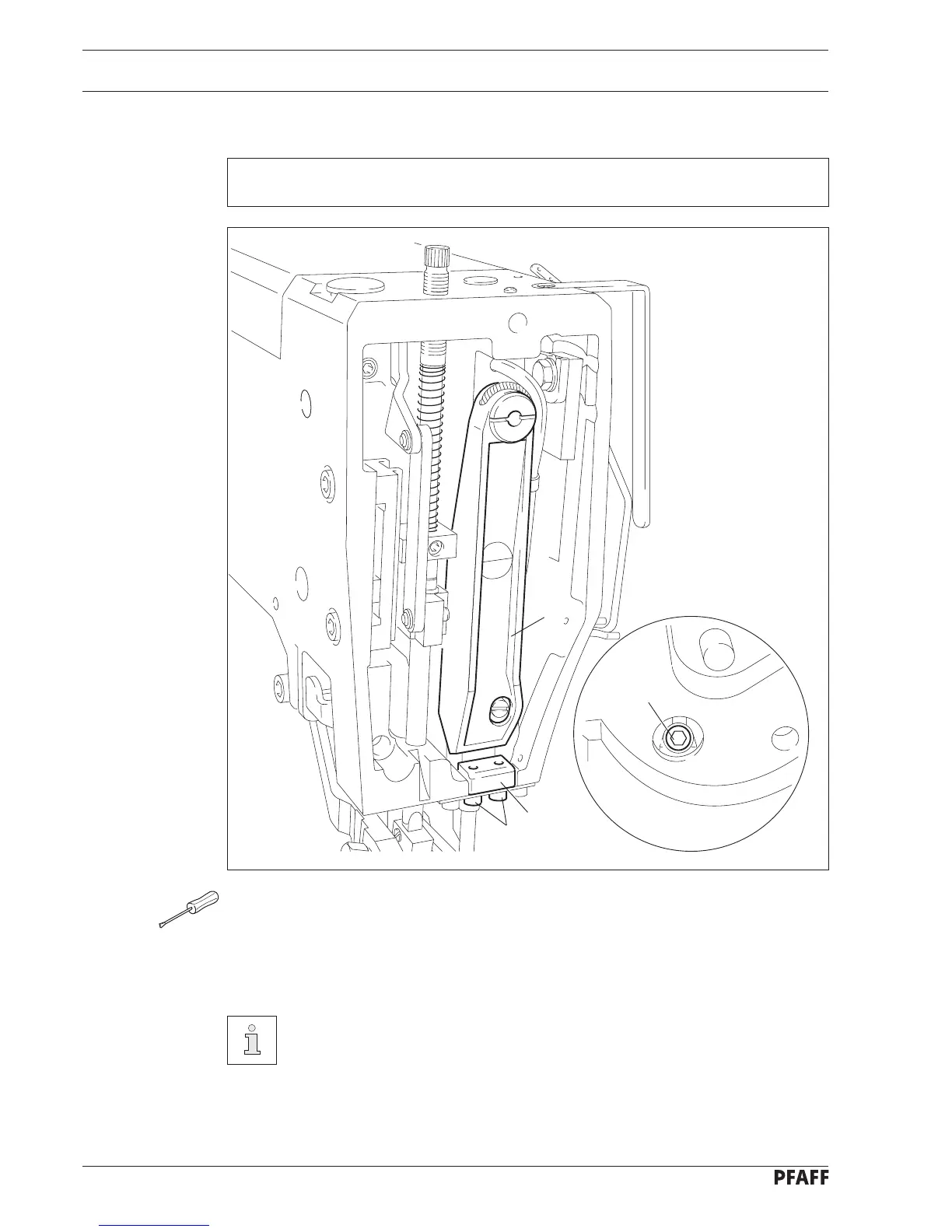

Fig. 14 - 07
2
4
1
3
● Loosen the grub screws on the handwheel and remove the handwheel.
● Loosen the screw 3 that can now be seen, so that the needle bar pendulum 2 can be
moved.
● Loosen screws 4 and move the guide piece 1 in accordance with the requirement.
● Tighten screws 4.
For the following adjustments, the handwheel remains dismounted and screw
3 remains loosened.
14.06.03 Needle bar pendulum
Requirement
The guide piece 1 should be touching the needle bar pendulum 2 on axis, without play.
