Pfaff 3117 User Manual

Adjustment
14 - 16
1
2
56
7
3
4

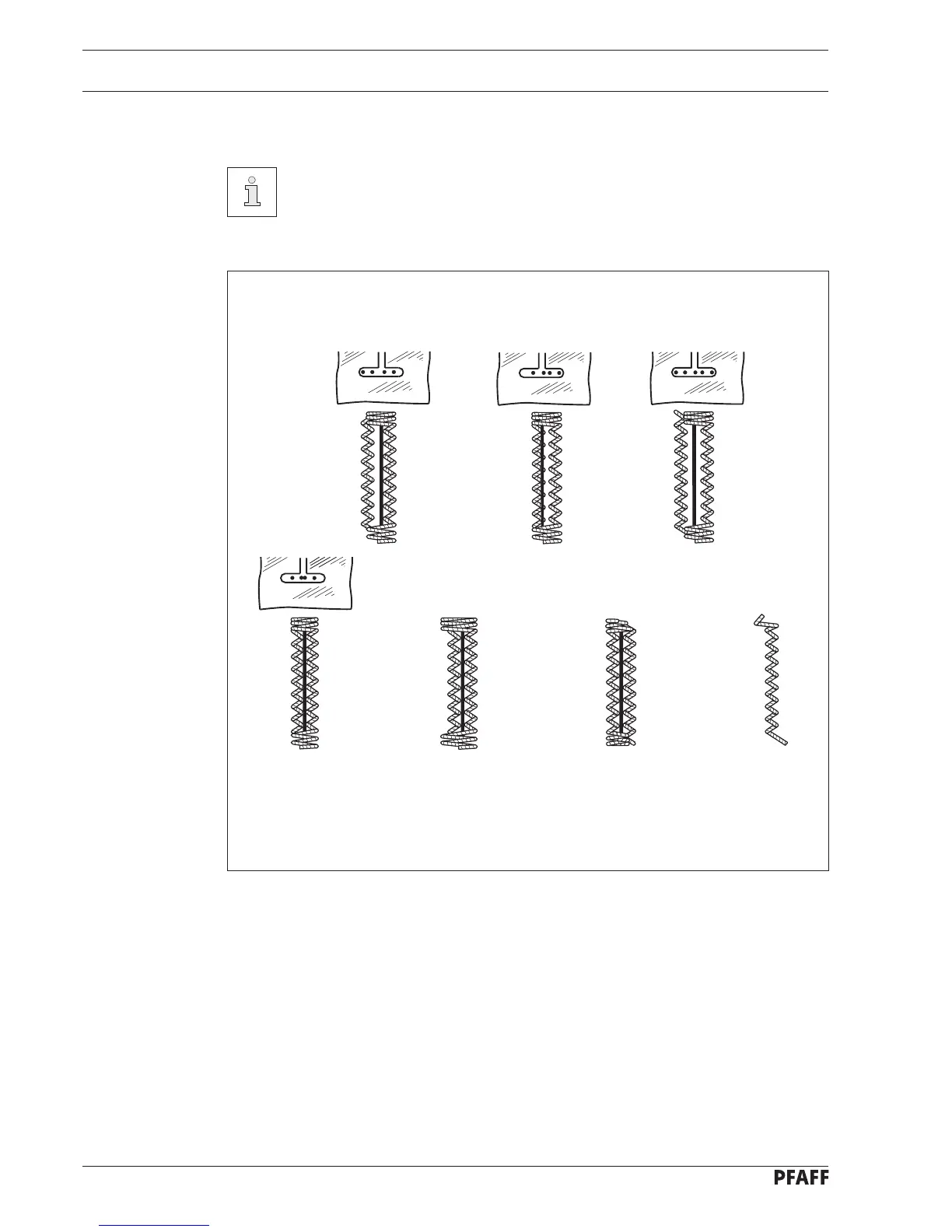

Fig. 14 - 15
1 = False! The right buttonhole seam is correct but the left buttonhole seam is
positioned too far to the left.
2 = False! The buttonhole is too far to the right, the buttonhole knife will cut through
the left buttonhole seam. ( see chapter 14.06.05 Needle bar in program end
position )
3 = False! The cutting area is too wide. The buttonhole will not be cut open accurately.
4 = False! the cutting area is too narrow. The buttonhole seams will be damaged by
the knife.
5 = False! The bartack topstitch is too wide
6 = False! The bartack topstitch is too narrow
7 = False! The bartack trip triggers the bartack stitch to soon. ( see chapter 14.07.03
Bartack )
14.07.05 Faults in the seam construction
Faults in the seam construction occur due to a false adjustment of the milled
screws 1 to 4. These must be adjusted as required. See also chapter 11.10 to
chapter 11.13.
