Pfaff 3117 - Needle Plate and Work Clamp Changes

Preparation
11 - 13
Fig. 11 - 18
2
Fig. 11 - 19
3
2
1
1

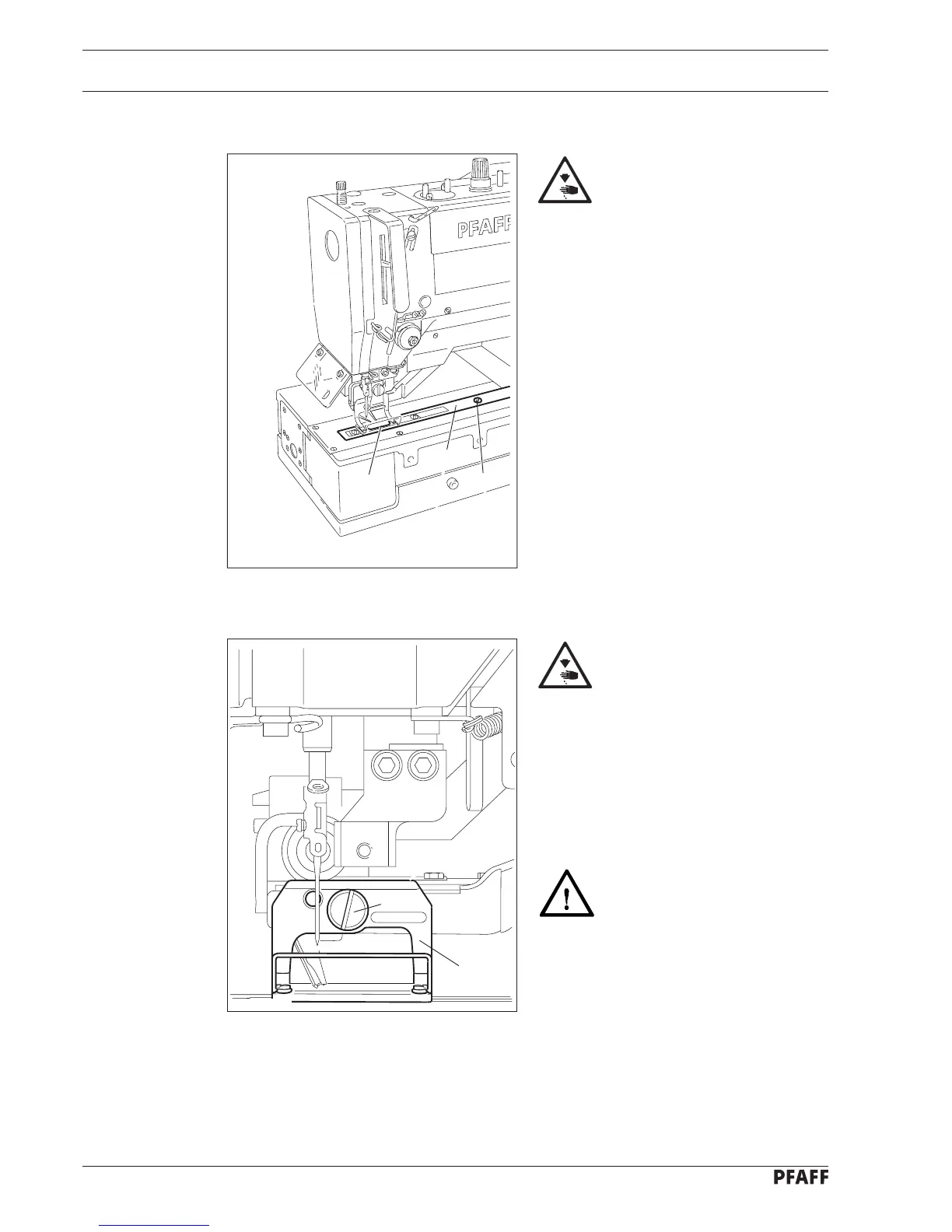

11.18 Changing the work clamp
Switch the machine off!
● Disassemble the knife.
● Loosen screw 1.
● Change the work clamp 2.
● Tighten screw 1.
● Reassemble the knife.
When changing to a longer
work clamp, the stop 5 ( see
Fig. 11 - 15 ) must also be
changed accordingly.
11.17 Changing the plastic insert in the needle plate
Switch the machine off!
● Loosen screw 1.
● Loosen the feeder 2.
● Change or rotate the plastic insert 3.
● Tighten screw 1.
