Adjustment
14 - 10
● Bring the machine into its program end position.
● Engage the stop motion device.
● Bring the needle bar to its BDC.
● Move the needle1 in accordance with the requirement.
● Tighten screw 3.
● Remount the handwheel. ( cf. chapter 14.06.01 Pre-adjusting the needle bar height )
● Disengage the stop motion device.

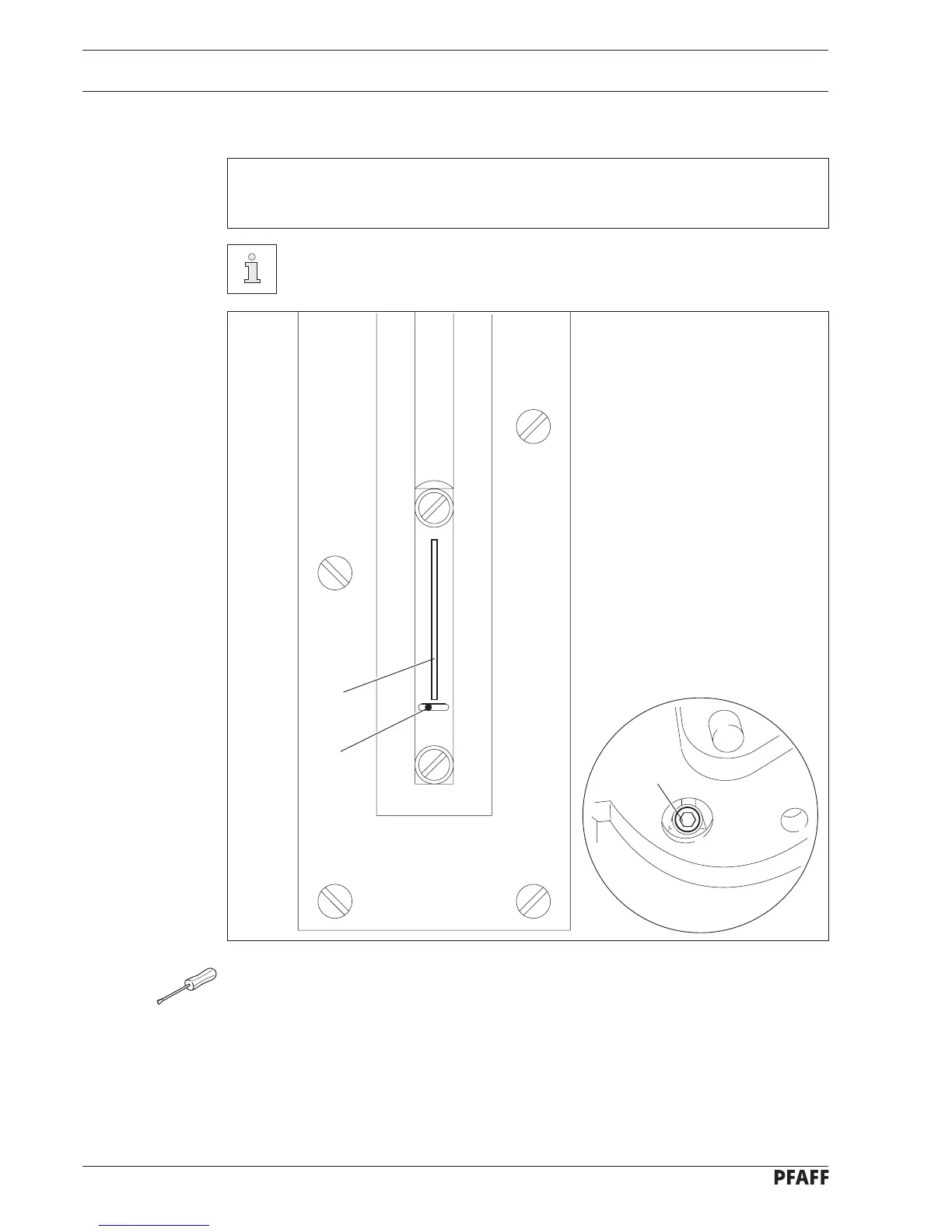

Fig. 14 - 09
3
1
2
14.06.05 Basic position of the needle bar
Requirement
In the program end position and with the needle bar at its BDC, the needle 1 should be
positioned at the left edge of the knife actuating hole 2.
Carry out this adjustment with a needle plate with a knife actuating hole
mounted.
