Pfaff 3117 User Manual

Care and maintenance
13 - 2

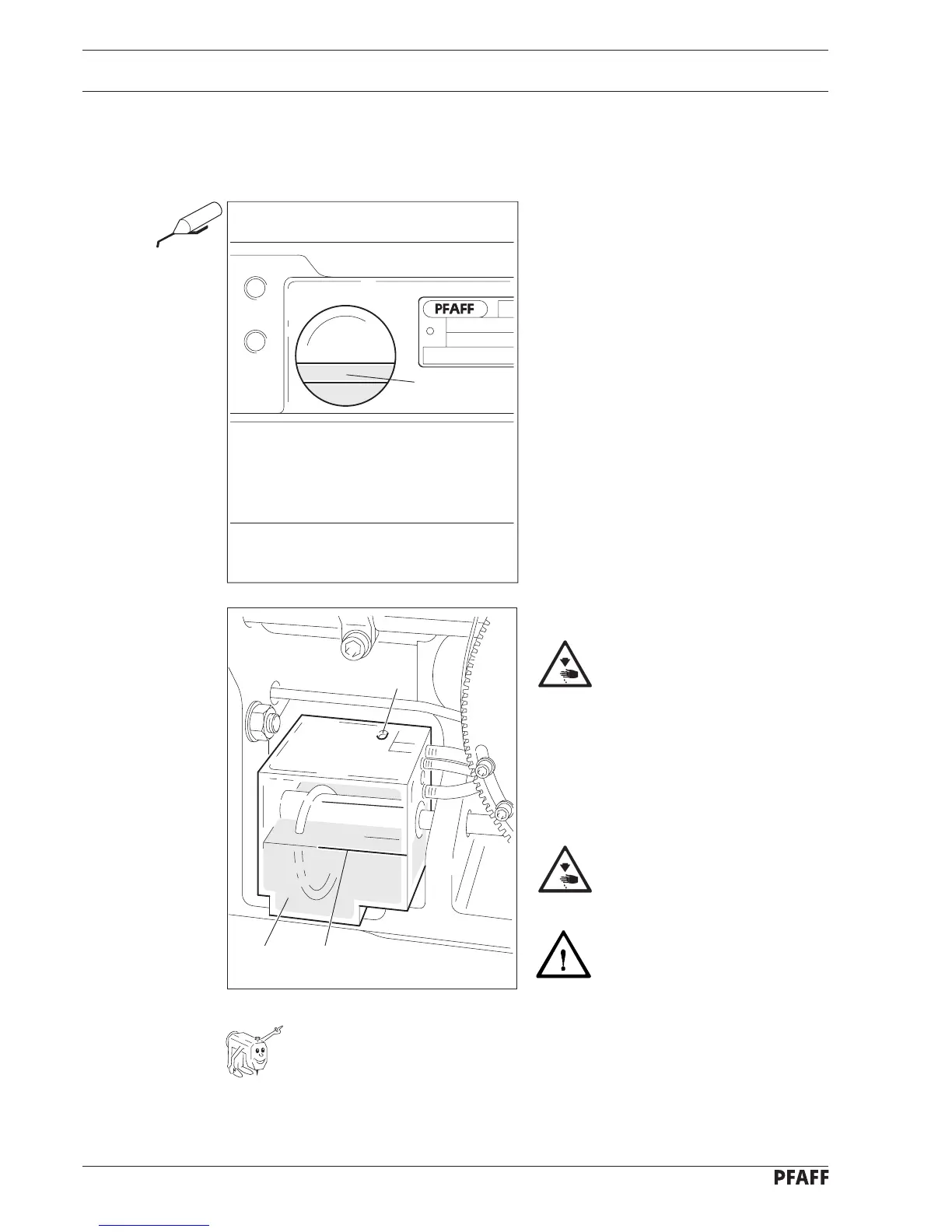

Fig. 13 - 02
Fig. 13 - 03
2
1
3
Kl.
Erz.Nr.
Oberteil-Nummer.
1
As required:
Switch the machine off!
● Lay the head on its side.
● Fill the oil reservoir 2 through hole 1 up
to marking 3.
● Return head back to its upright position
with both hands.
Danger of crushing between
machine head and table top!
Only use oil with a mean
viscosity of 22.0 mm
2
/s at 40°C
and a density of 0.865 g/cm
3
at
15°C!
We recommend PFAFF sewing machine oil Part No. 280-1-120 144.
13.02 Lubricating
13.02.01 General lubricating
● Check the oil level in the glass 1 before
every use.
