Pfaff 3117 - Needle Lateral Movement Adjustment

Adjustment
14 - 11
● Engage the stop motion device
● Bring the machine into the initial bartack position ( rear bartack ).
● Remove one feed gear.
● Turn the drive pulley in its direction of rotation and observe the lateral movement of the
needle.
● Loosen the grub screws 1 and turn the cog 2 in accordance with the requirement.
● Tighten the grub screws 1.
● Disengage the stop motion device.
● Remount the feed gear.

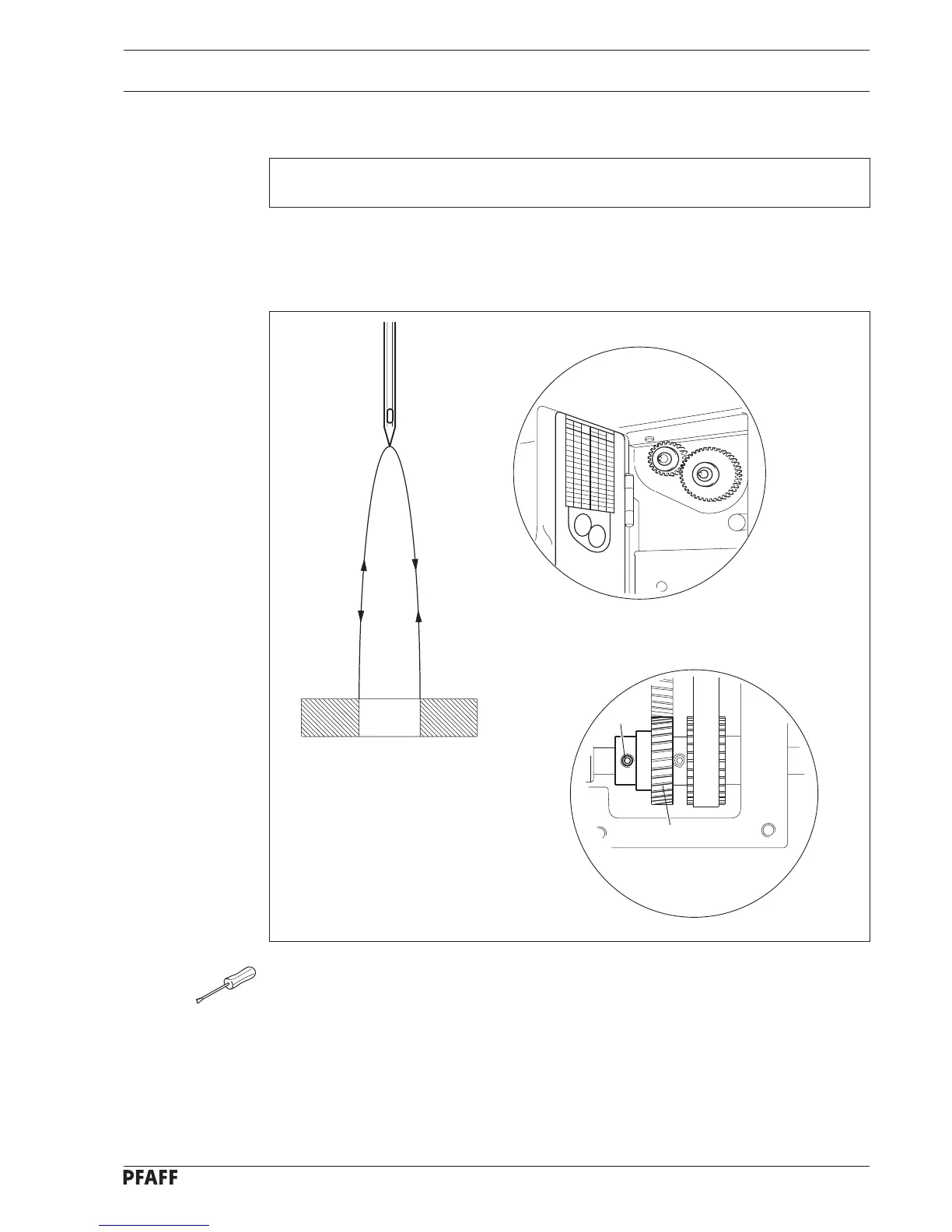

Fig. 14 - 10
2
1
14.06.06 Lateral movement of the needle
Requirement
The lateral movement of the needle should be finished above the needle plate.
