Adjustment
14 - 7

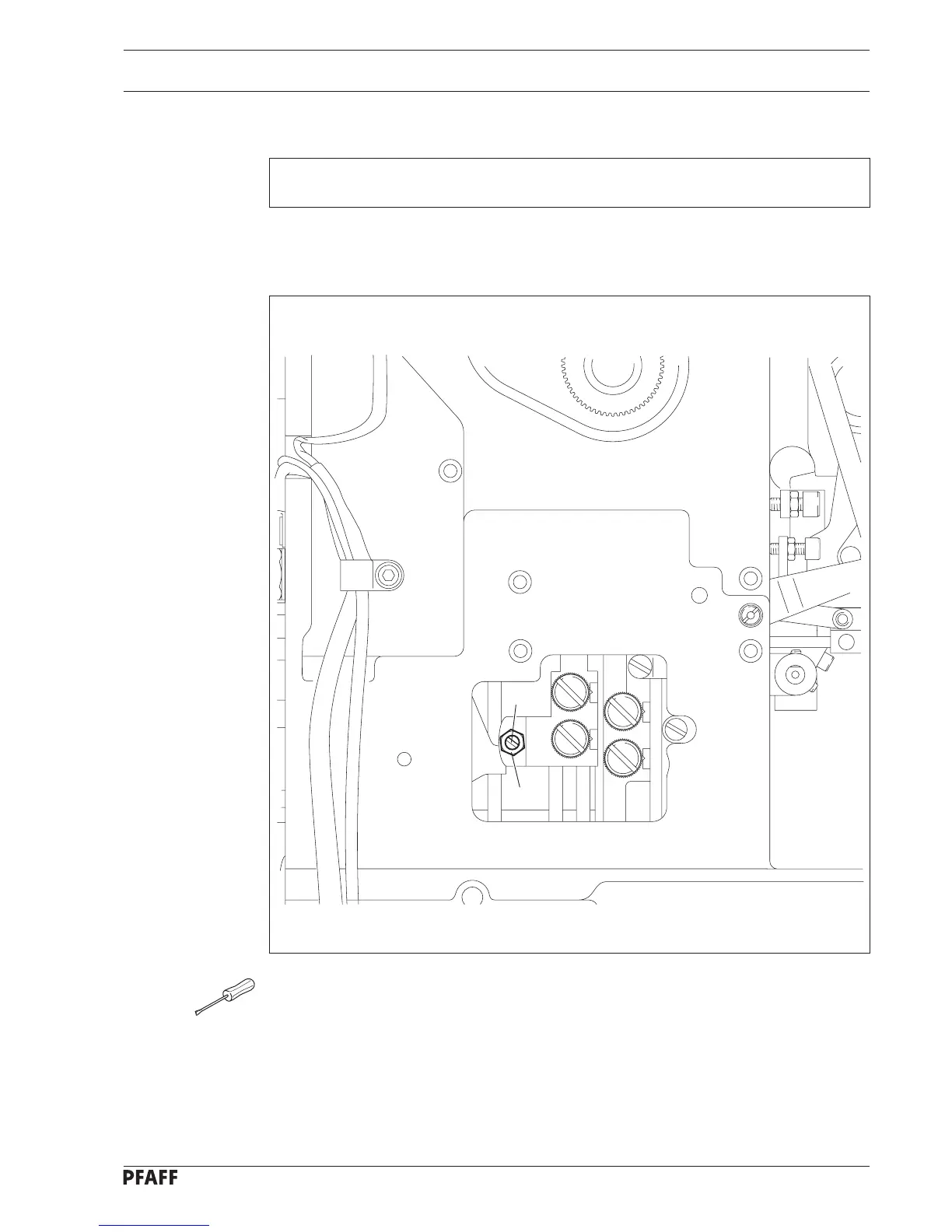

Fig. 14 - 06
1
2
● Engage the stop motion device.
● Bring the machine into program end position.
● Lift the work clamp and place a piece of paper underneath it.
● Turn the drive pulley in its direction of rotation until the needle perforates.
● Then turn the drive pulley back until the needle perforates again.
● Loosen nut 1 for the adjustment and turn screw 2 in accordance with the requirement.
● Tighten nut 1.
● Disengage the stop motion device.
14.06.02 Needle bar in its program end position
Requirement
At its program end position the needle should carry out a minimal zigzag movement.
