Preparation

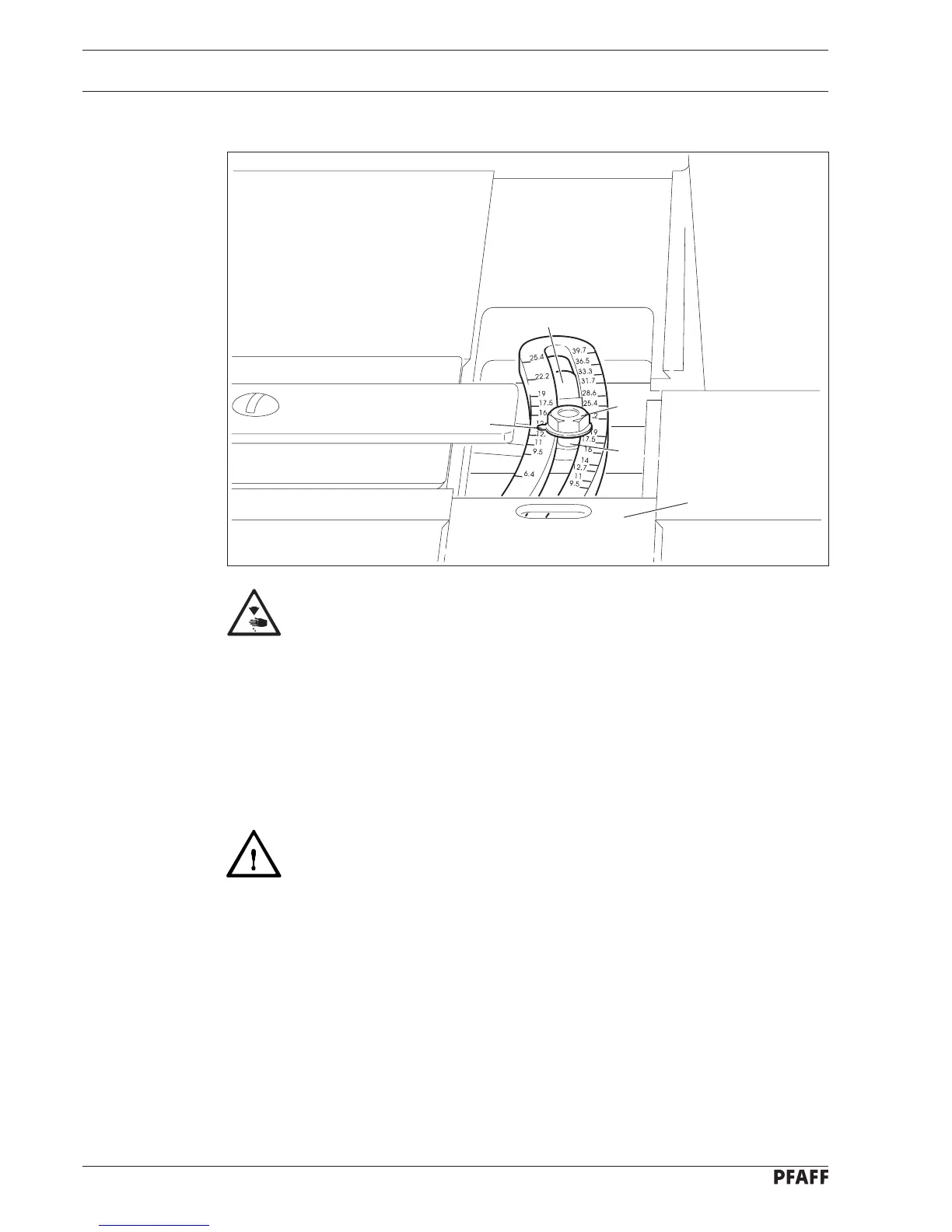

Fig. 11 - 15
11 - 11
1
2
3
4
5
Switch the machine off!
● Open the bed slide 1.
● Loosen nut 2.
● Move bolt 3 in the slot so that the pointer 4 is pointing to the desired value. Only the
scale on the inside of the curve is to be used here.
● Tighten nut 2.
● Close bed slide 1.
The maximum buttonhole length must be secured by the stop 5 in such a way
that the work clamp mounted for this buttonhole length is adequate. When
changing to a longer work clamp the stop 5 must also be changed accordingly.
11.14 Adjusting the buttonhole length
