Adjustment
14 - 13

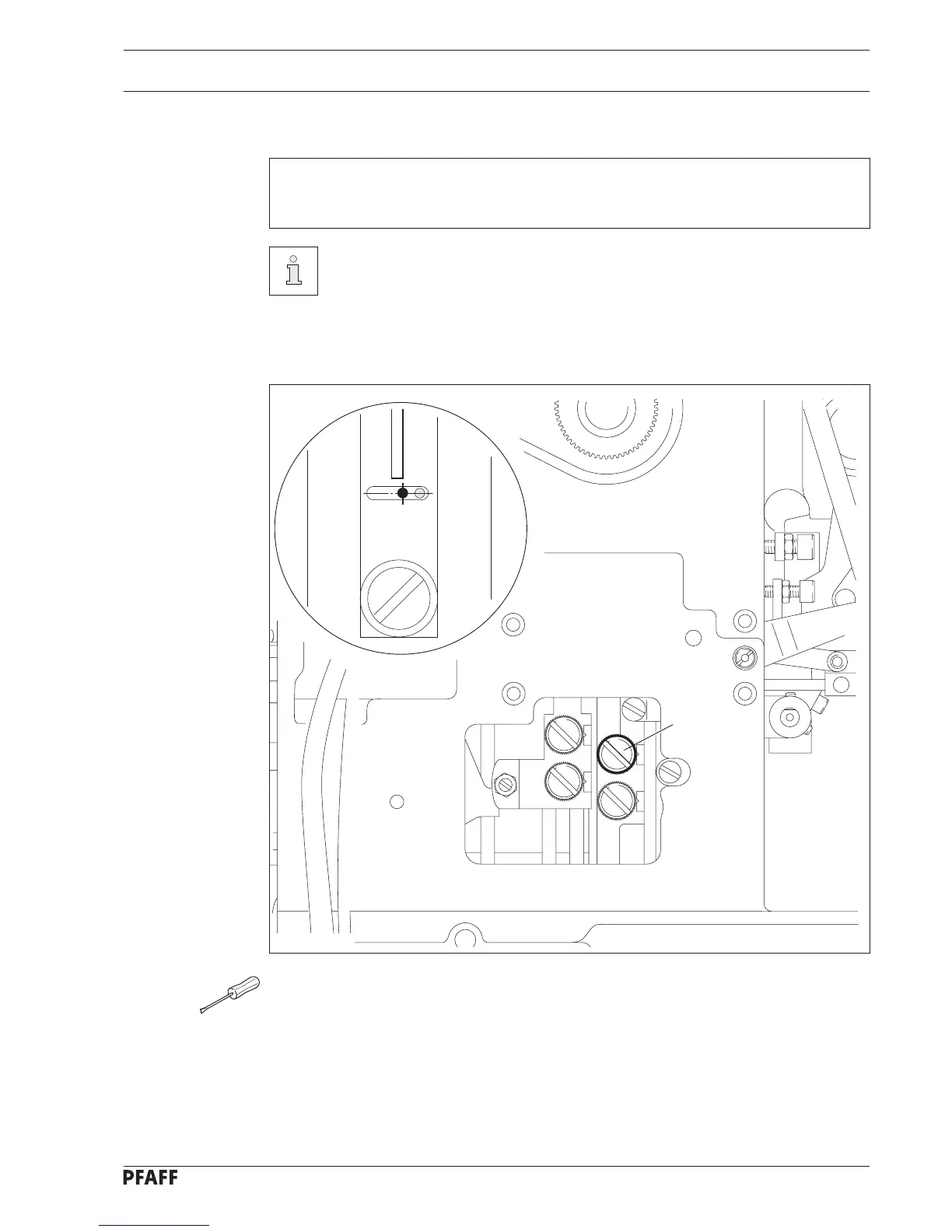

Fig. 14 - 12
1
Bring the machine into the right buttonhole seam position.
Engage the stop motion device.
Bring the needle to the left perforation.
Turn milled screw 1 in accordance with the requirement.
Disengage the stop motion device.
14.07.02 Right buttonhole seam
Requirement
The needle should be positioned at the left perforation of the right buttonhole seam at the
right edge of the knife actuating hole.
Carry out this adjustment with a needle plate with a knife actuating hole
mounted.
