Adjustment
14 - 44
● Loosen screws 5 and move the feed lifting cylinder 1 in accordance with requirement 2.
● Tighten screws 5.
● Switch the machine on. The feed lifting cylinder 1 retracts.
● Remove sewing pressure completely. See chapter 11.09 Adjusting the sewing pres-
sure.
● Loosen screw 6 and lift the work clamp in accordance with requirement 3 ( e.g. lay
12.5 mm underneath ).
● Tighten screw 6.
Do not turn rod 7!
● Adjust the sewing pressure. See chapter 11.09 Adjusting the sewing pressure.
7
6

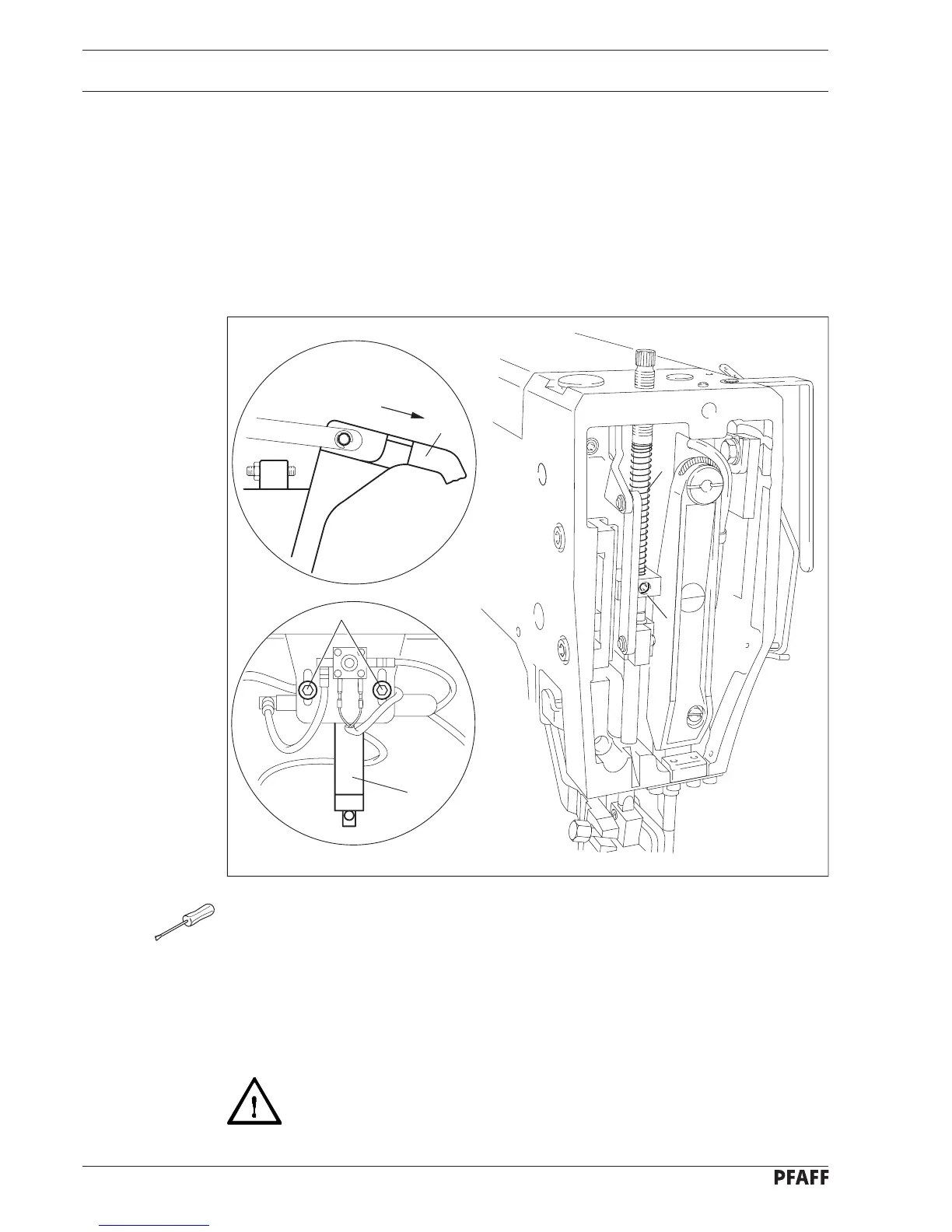

Fig. 14 - 42
