Pfaff coverlock 4772

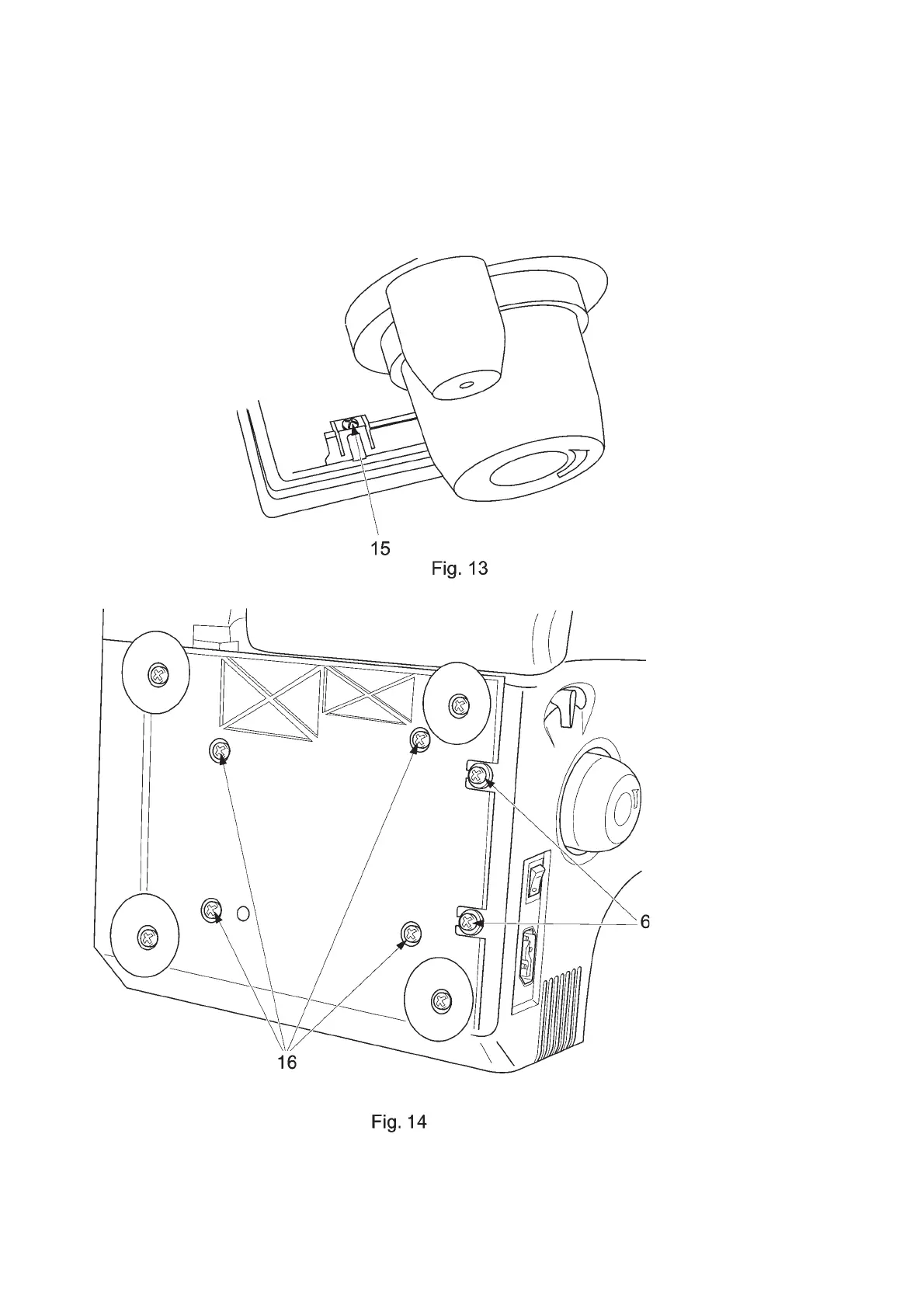

● Unscrew and remove the fastening screw 15 to the microswitch housing (figure 13).
● Remove completely the microswitch housing upwards.
● Unscrew and remove the four fastening screws 16 to the baseplate (figure 14).
● Remove the machine housing carefully from the base plate.
10
